Small-scale Gas Central Air Conditioning

  • W02C3 Series
  • WithAir®
  • 8418692090

Product Description

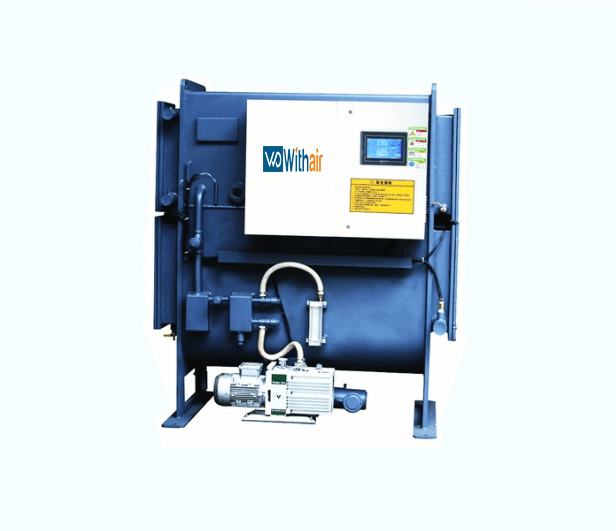

WithAir® Hot Water Absorption Chiller ,adopts  hot water to make cool (including to use hot water from solar).

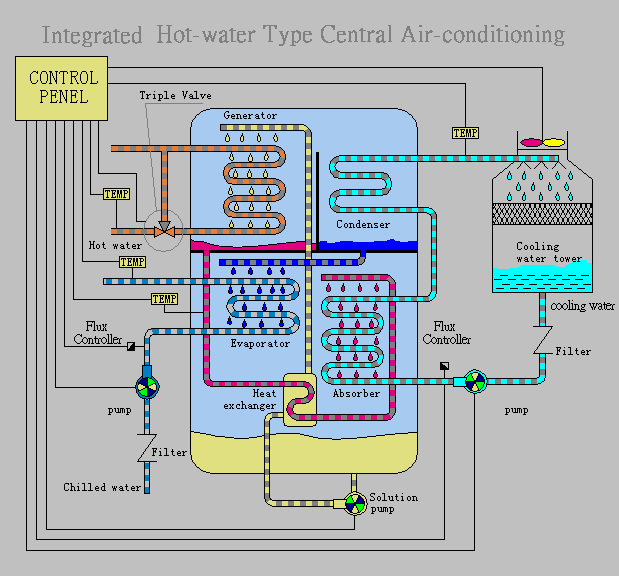

 WithAir® Integrated Hot Water Type Central Air Conditioning


Features and Benefits

—— Product Features ——

 Cooling capacity: from 18Ton and above.


 Fuel: Natural gas or diesel oil or bios.

 Refrigerator: Water.

 Absorber: Lithium bromide solution.

 Inhibitor: Lithium chromate or Lithium molybdate.

 Working pressure: 0.1 or 0.4 or 0.6 or 0.8MPa.



Technical Parameters

Model   W02C3-
7G 10G 18G 35G
Cooling capacity kW 24.6 35.2 63.3 123.1
Ton 7 10 18 35
10³kcal 21.2 30.2 54.4 105.8
Btu/h 84,000 120,000 216,000 420,000
Heating capacity kW 28.1 38.7 70.3 130.1
Ton 8 11 20 37
10³kcal 24.2 33.3 60.5 111.9
Btu/h 96,000 132,000 240,000 444,000
A/C water Chilled water inlet/outlet temperature °C 12/7
Hot water inlet/outlet temperature °C 55.0/60.0
Flow rate m³/h 4.0 6.0 10.0 20.0
Pressure drop kPa 30 30 40 50
Pipe diameter DN 32 32 50 65
Natural gas consumption Cooling kW 2.5 3.7 5.8 11.5
Heating kW 3 4.4 6.8 13.5
Pressure mmH2O 200~650
Electricity consumption Cooling kW 1.8 3.2 5.2 7.2
Heating kW 0.7 1.2 1.7 2.4
Dimension Length mm 1,600 1,950 1,950 5,200
Width mm 1,600 1,950 3,000 2,000
Height mm 2,300 2,300 2,300 2,300
Weight Net weight kg 800 1,450 2,100 3,300
Gross weight kg 850 1,500 2,200 3,500
The data in the above table test as following:
1. The burning calorific value of gas is 10kmh/m³, suitable for natural gas, town gas,liquefied petroleum gas,diesel;
2. Optional parts:cooling water tower, chilled water pump, cooling water pump, hot water adjusting valve, filter of chilled & cooling water, vacuum pump;
3. Fouling factor for chilled water,cooling water and hot water :0.086m²·h·°C/kW(0.0001m²·h·°C/kcal);
4. The standard gague pressure limit for chilled water,cooling water and hot water lower than 0.8Mpa;
5. The data in this table are for reference only, please following the nameplate parameter of this product.

Packaging & Transportation

-
Wi thAir ® pr ovide s two styles package for different transporation modes:
(1). St andard package(free of charge): heat pump is wrapped with plastic film, which is suitable for container shipment & a few transshipment cargo;
       withair heat pump package_3withair heat pump shipment
(2). Special pac kage(extra charge): heat pump is wrapped with plastic film and wooded box, which is suitable for bulk cargo transporation;
       withair heat pump package_1

Optional Installation Accessories

     In order to service heat pumps system installation for clients,WithAir® also provide pressional Parts & Supplies and Technical Information for your engineering support,research and repair, such as: Thermostat Controls, Cooling Towers,Heat Exchangers, Insulation Materials, Water Tank, Expansion Tank, Water Pumps, Water Valves, Flow Gague, Pressure Gauge, Air Duct, Filters, Hydraulic Module (kits) and so on.

     Please take a look at Parts & Supplies lines for more information.
