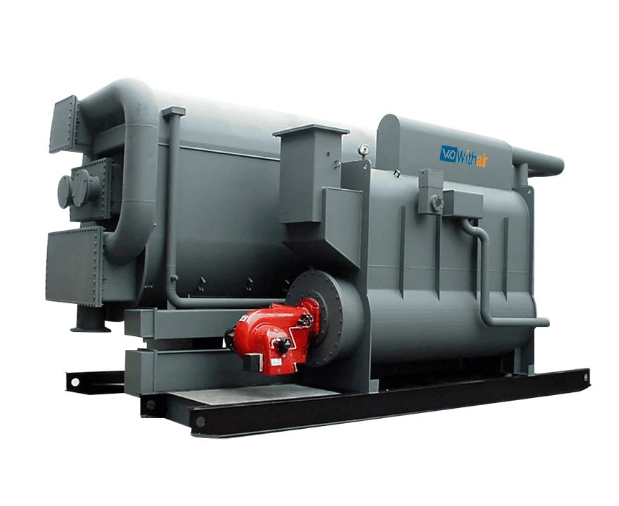

Direct Fired Absorption Chiller

  • W02C3 Series

  • Withair®

  • 8418692090

Availability:

Product Description

Withair® Hot Water Absorption Chiller ,adopts hot water to make cool (including to use hot water from solar).

 WithAir® Integrated Hot Water Type Central Air Conditioning


—— The key advantages Include ——



● Cooling capacity: from 70Ton and above.

● Fuel: Natural gas or diesel oil or bios.
● Refrigeration: Water.
● Absorber: Lithium bromide solution.
● Inhibitor: Lithium chromate or Lithium molybdate.
● Working pressure: 0.1 or 0.4 or 0.6 or 0.8MPa.




Technical Parameters

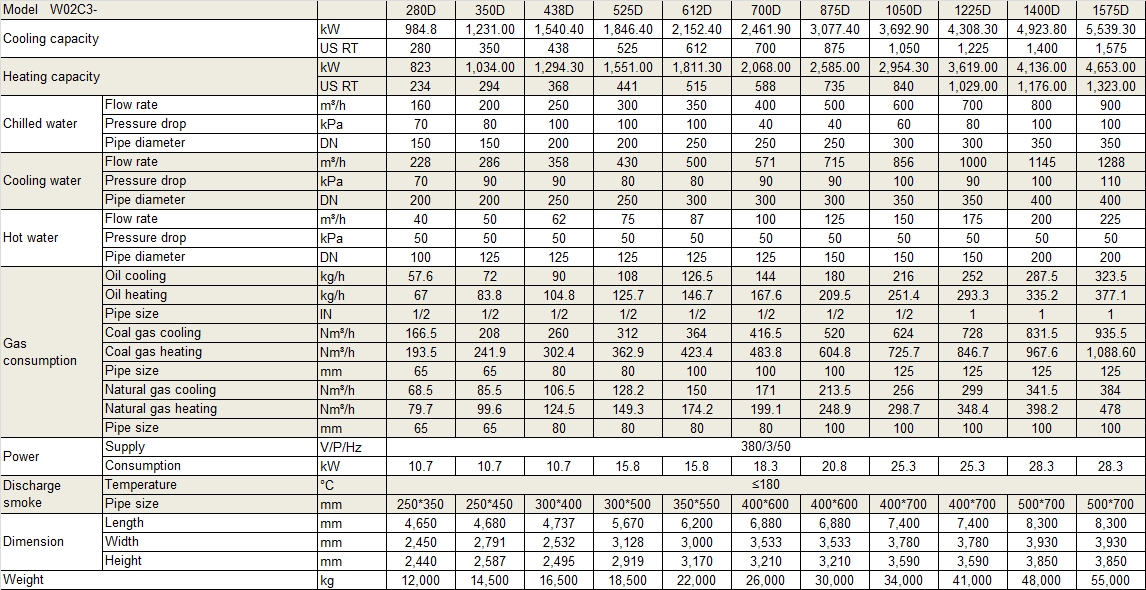

Physical Data of Withair® Direct Fired Absorption Chiller.png

The data in the above table test as following:

1. The burning calorific value of gas is 10kmh/m³, suitable for natural gas, town gas,liquefied petroleum gas,diesel;
2. Optional parts:cooling water tower, chilled water pump, cooling water pump, hot water adjusting valve, filter of chilled & cooling water, vacuum pump;
3. Fouling factor for chilled water,cooling water and hot water :0.086m²·h·°C/kW(0.0001m²·h·°C/kcal);
4. The standard gague pressure limit for chilled water,cooling water and hot water lower than 0.8Mpa;
5. The data in this table are for reference only, please following the nameplate parameter of this product.
