Variable Speed Screw Chiller

  • W02C2 Series

  • Withair® / OEM brand as option

  • 8418612090

  • 116.3 ÷ 3,253.6 kW / 33.1 ÷ 925.1 Tons

  • 4.5 EER

  • Compressor - 5 year limited ; Other parts - 1 year limited

  • R134a, R407C,R22

  • Screw type; HANBELL, RefComp

  • Continous capacity Control

  • Dry or flooded type shell and tube evaporator

  • Shell and tube heat exchanger

  • Commercial Use, Industrial and Manufacturing Use,Healthcare Use, District Cooling and Heating

  • 380-415V/3Ph/50Hz (380V/460V/3Ph/60Hz and 208V/3Ph/60Hz as option)

Availability:

Product Overview


—— Product Description ——


Withair® is proud to offer an extensive line of water-cooled screw chillers ranging from 33 to 1,000+ tons. The water-cooled screw chillers feature a variety of models and options engineered to fit a wide range of applications. Withair® water-cooled screw chillers are ideal for customers who are focused on high energy efficiency, superior reliability and long equipment life. Withair® products within the unique portfolio are designed to help lower environmental impact with next-generation, low global warming potential refrigerants and high-efficiency operation.



Withair® water cooled screw chiller is the mature products which are equipped with newly-developed semi-hermetic screw compressors and use dry type or flooded type evaporator, which result in lower noise and lower vibration, reliable long period operation, and installation feasibility on any floor of the building.The units are composed of a compressor(s), a condenser(s),a direct-expansion water cooler, a electronic expansion valve(s),and auxiliary and control equipment.Optimized system design and enhanced heat exchange efficiency makes the unit working best under both full load and partial load. Every chiller is fully factory tested and gas charged in the factory before dispatch. It’ s good choice for hotel, shopping mall, hospital, factory, cinema and other civil architecture air conditioning system. Besides, it is widely used in plastic industry, electroplating industry, food processing,chemical industry and other process cooling applications of modern manufacturing industries which needs a lot of chilled water.Stepless capacities can be customized.The units can be operated with the utmost simplicity.


—— The Key Advantages Include ——


● Using for advanced variable-speed drive (VSD) semi-enclosed screw type compressor

The international advanced double-screw semi-enclosed compressor, through slide valve achieve multiple-stage or stepless of adjustment, to adapt to changes in load of smooth and compressor built-in efficient oil separator, the rate can reach 99.7%,using differential injection,no pump, oil, safe and reliable guarantee mechanism for the safe and stable operation, long service life.

● Unsurpassed Control

Strike the right balance between capital cost, ownership cost and energy efficiency with the flexibility of the Withair chiller.  With a variety of configuration possibilities, this water-cooled screw chiller gives you the power to reduce compressor speed, translating into increased energy savings and a smaller carbon footprint.  The Withair Water-cooled Variable-speed Screw Chiller offers an array of options that you can tailor and tune to match the capacity, efficiency, sound and footprint of your specific needs.

● Energy-saving

*  Unit adopts PLC control technology, according to user load demand changes through intelligent control, multilevel energy regulation in full or part of the unit that can reach the best energy efficiency, reduce the operating cost.

* Provide the energy level adjustment methods for your choice.

● Intellectualized control, simple operation

* Unit adopts PLC control technology, "a key start" and automatic operation.

* In the man-machine interface screen English display, touch screen/LCD text interface for your option.

* Units with remote control functions: turbine control system with built-in WEB browser,users can pass on any computer through internet in the remote monitoring and control unit can operation conditions and parameters of the work unit, the query of the unit.

● Protection function origin

* Units provided the refrigeration system, electrical system and the water system of the complete protection function, ensure its safe operation.

* Unit Settings: unit of power of inverse phase), (high/low refrigeration system protection, oil is too low to high temperature, vent protection system to protect and water flow protection, antifreeze protection safety protection function, guarantee the safe and stable operation of the mechanism.

● Heat recovery function

* Units can be based on user needs, increase the heat recovery function, at the same time in refrigeration heat side will recycle waste heat utilization,and use side and heat side, improved the two-way unit running condition, improve the efficiency of the unit, the unit greatly reduce the operation cost.

* Partial heat recovery and total heat recovery.

● Advanced design, superior performance of high-efficiency heat exchanger

* Shell and tube evaporator within the evaporator using the latest threaded efficient heat exchange tube and tube with high heat efficiency,combined with poor casing baffle slabs of chilled water flow and circuitous increased turbulence effect, make the evaporator heat transfer coefficient has been greatly improved,and the latest flame retardant, use shell heat preservation material, energy loss and ensure the good performance of refrigeration unit.

● Ideal for comfort and process cooling, glycol chilling, heat recovery and heat pump applications

● Compatible with open- or closed-circuit cooling towers, dry air coolers or adiabatic coolers

● Variations of condenser and evaporator arrangements, alternative compressor head ratios, sound reduction kits and controls schemes are available


—— You May Like ——

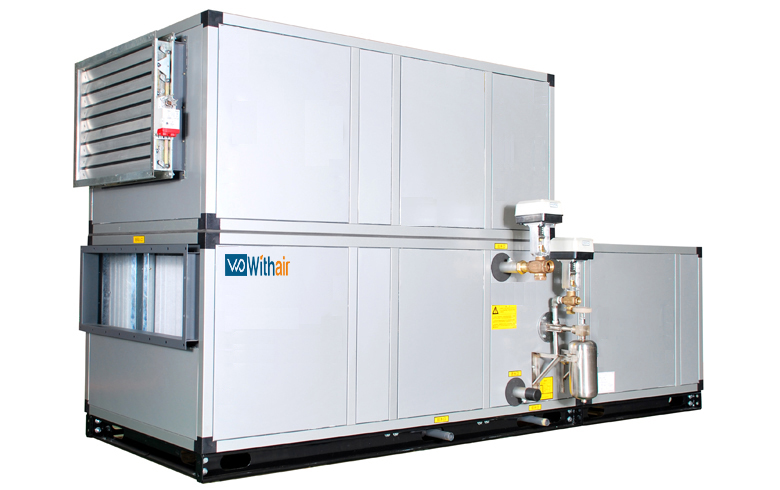

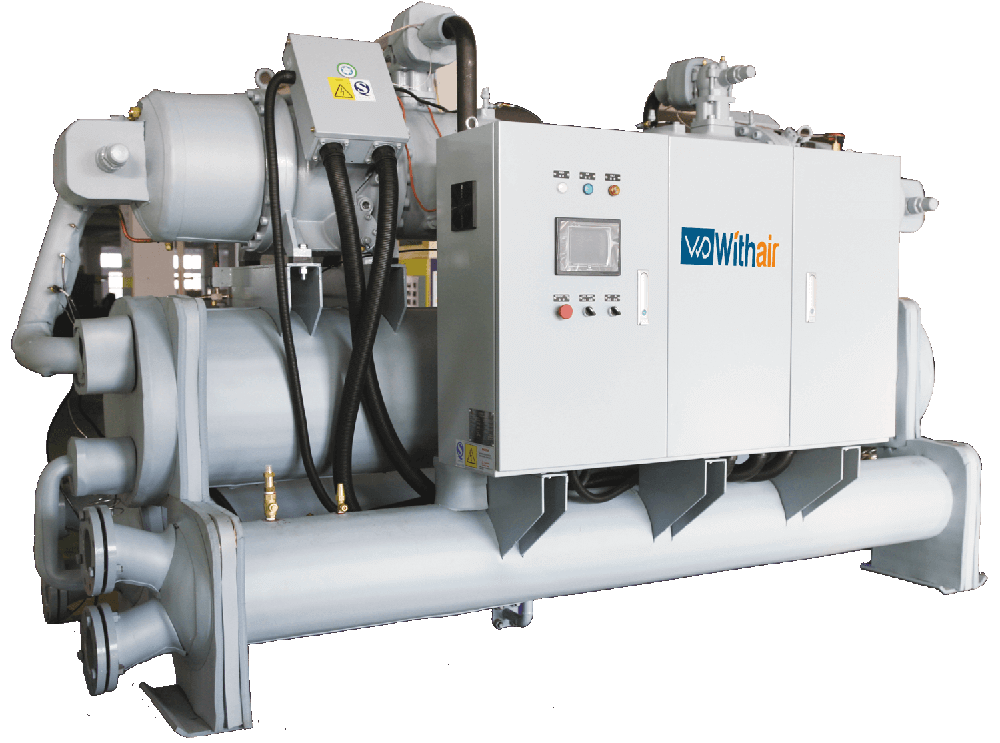

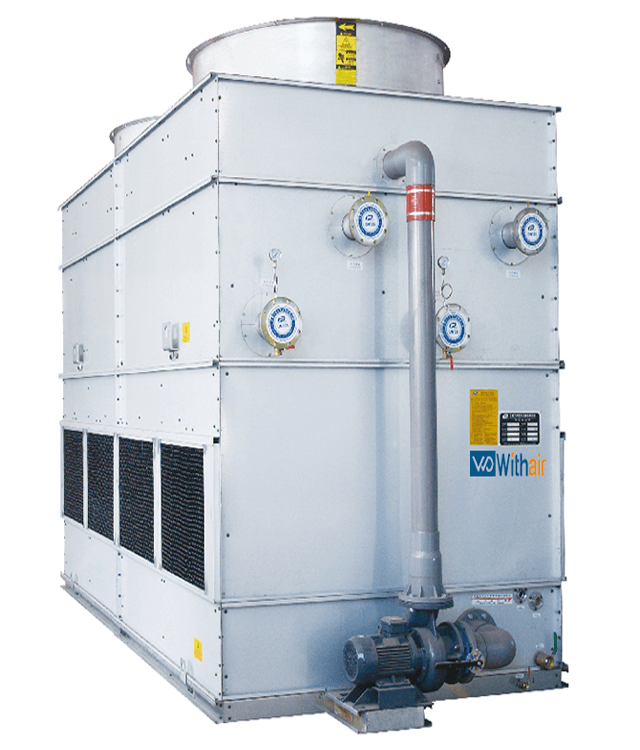

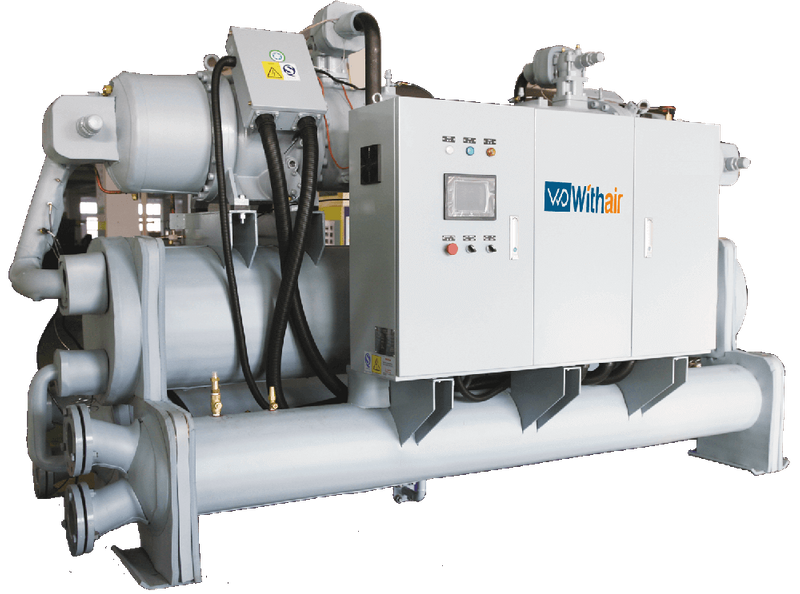

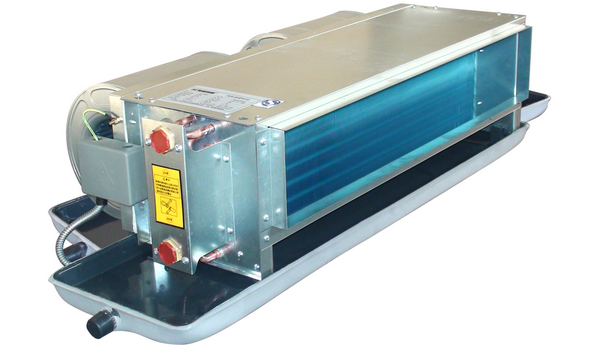

Withair® Heavy Capacity Water Cooled Chiller           WithAir® Closed cooling tower      WithAir® AHU   Concealed Type Fan Coil Unit          Termostat controls (2)

                  Water Chiller            +         Cooling Tower          +             Air Handling Unit              +             Fan Coil Unit                +             Thermostat




Physical Data

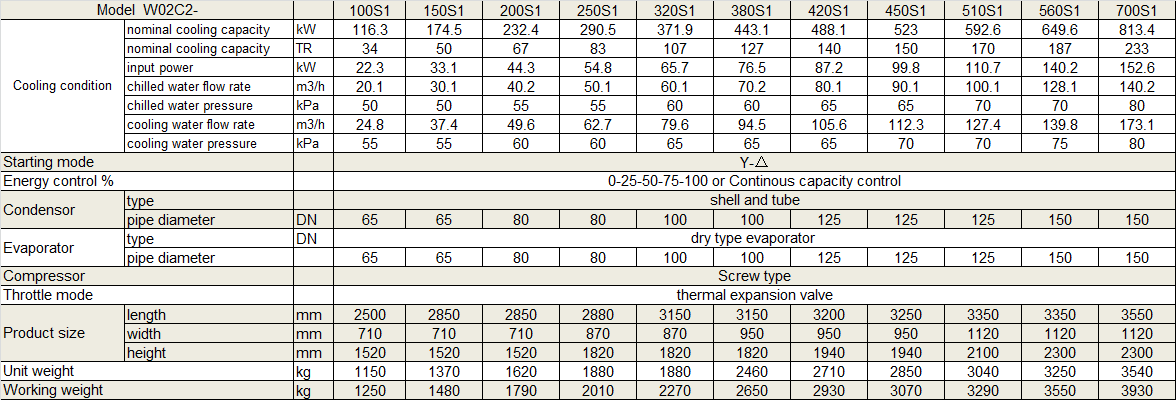

Single Compressor System

Technical specification for water cooled screw chiller_1

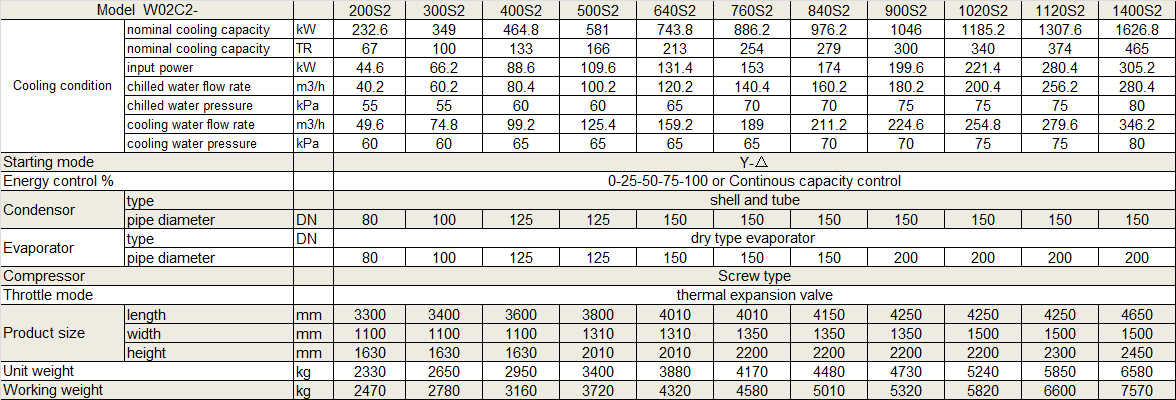

Twin Compressors System

Technical specification for water cooled screw chiller_2

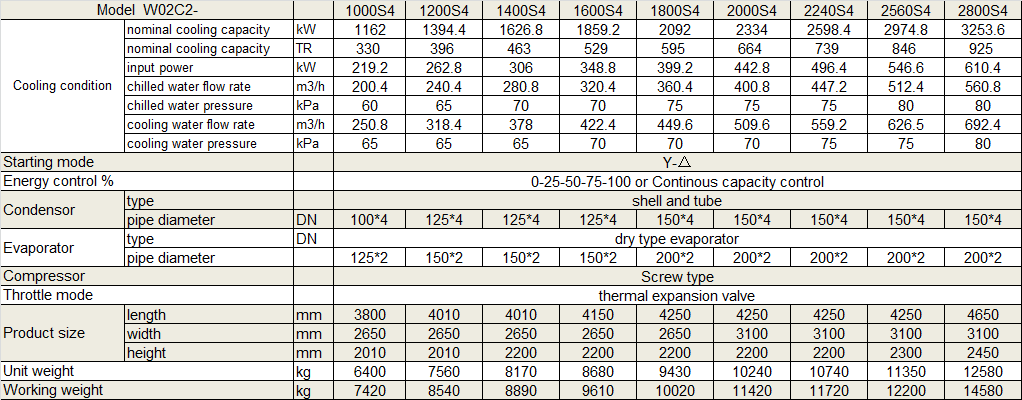

Fourfold Compressors System

Technical specification for water cooled screw chiller_3


Notes:
1.The nominal cooling capacities are based on the GB/T18430.1: Chilled Water Inlet/Outlet Temperature 12℃/7℃; Condenser Water Inlet/Outlet Temperature 30℃/35℃;
2.The unit do not provide pump,and disposed by project demand.
3.All models, sizes, dimensions, and specifications are subject to change without prior notice, please refer to nameplates for the most accurate specifications.

Packaging & Transportation

-

● Four steps of pakacges, plastic film, foam, carton and plywood for stable transporation.

● 100% test before deliverying products.
● Item shipped in 25 working days against payment depends on the quantity.
● Products catalogue, installation & operation manual will be sent together.
● Tracking number will be sent to customer as soon as we ship the products.
● Ocean shipping, railway shipment and air transportation are acceptable according to customer demand.

Withair® provides two styles package for different transporation modes:

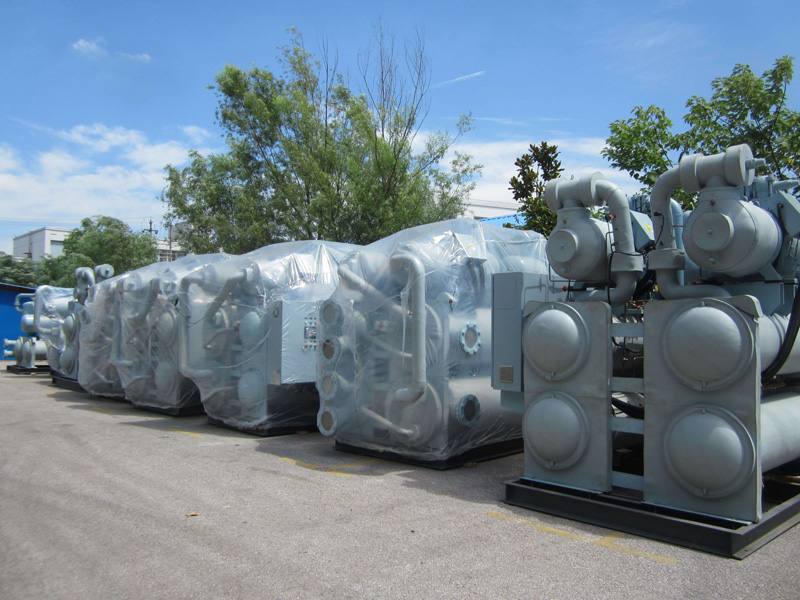

(1). Standard package(free of charge): unit is wrapped with plastic film, which is suitable for container shipment & a few transshipment cargo;
       Withair Large Capacity Heat Pumps package
(2). Special package(extra charge): unit is wrapped with plastic film and wooded box, which is suitable for bulk cargo transporation;
       Withair Large Capacity Heat Pumps with strong package (1)
