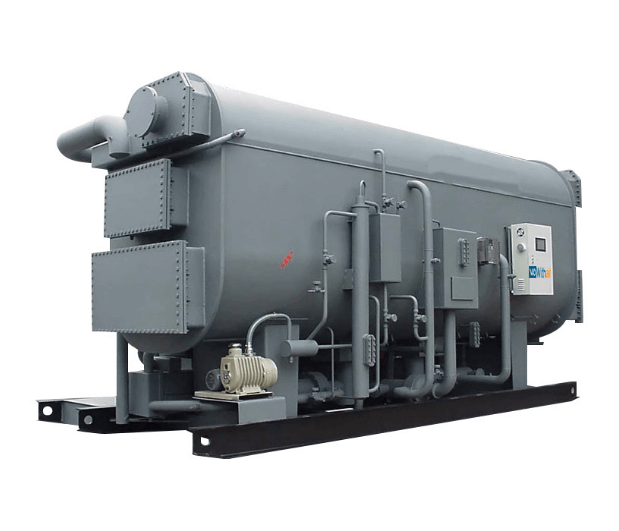

Steam-operated Double Effect Absorption Chiller

  • W02C3 Series
  • Withair®
  • 8418692090
Availability:

Product Overview

Withair® Hot Water Absorption Chiller, adopts hot water to make cool (including to use hot water from solar).

 WithAir® Hot Water Absorption Chiller (system)


—— The key advantages Include ——



● Cooling capacity: from 105Ton and above.

● Fuel: Natural gas or diesel oil or bios.
● Refrigerator: Water.
● Absorber: Lithium bromide solution.
● Inhibitor: Lithium chromate or Lithium molybdate.
● Working pressure: 0.1 or 0.4 or 0.6 or 0.8MPa.




Physical Data


0.6MPa Steam-operated Double Effect Absorption chiller

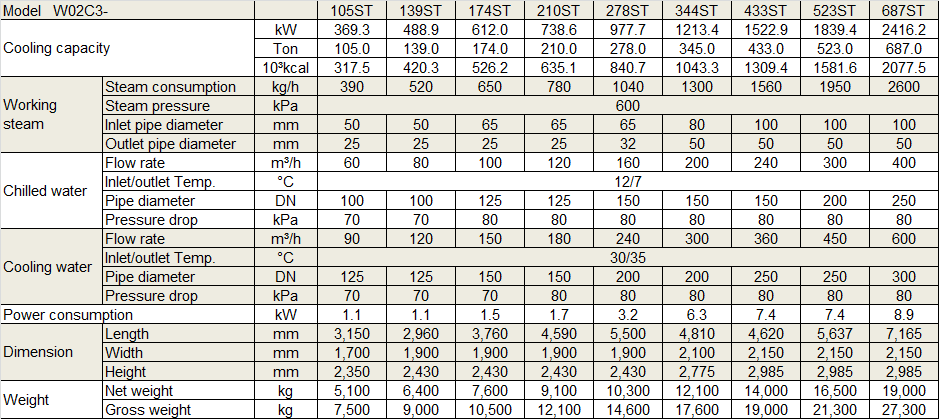

Physical Data of Withair® 0.6MPa Steam-operated Double Effect Absorption chiller.png

The data in the above table test as following:

1. The lowset working temperature of hot water:60°C;
2. Optional parts:cooling water tower, chilled water pump, cooling water pump, hot water adjusting valve, filter of chilled & cooling water, vacuum pump;
3. Fouling factor for chilled water :0.086m²°C/kW;
4. The standard gague pressure limit for chilled/cooling water chamber ≤0.6Mpa;
5. The data in this table are for reference only, please following the nameplate parameter of this product.

0.8MPa Steam-operated Double Effect Absorption chiller

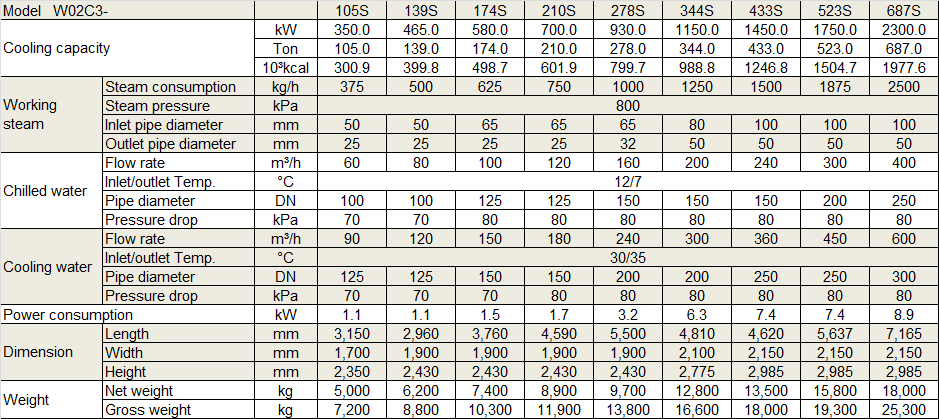

Physical Data of Withair® 0.8MPa Steam-operated Double Effect Absorption chiller.png

The data in the above table test as following:
1. The lowset working temperature of hot water:60°C;
2. Optional parts:cooling water tower, chilled water pump, cooling water pump, hot water adjusting valve, filter of chilled & cooling water, vacuum pump;
3. Fouling factor for chilled water :0.086m²°C/kW;
4. The standard gague pressure limit for chilled/cooling water chamber ≤0.8Mpa;
5. The data in this table are for reference only, please following the nameplate parameter of this product.
