W01R2 Series
Withair® / OEM brand
8418612090
0.75 ÷ 3.0 Tons
0.75 ÷ 3.0 Tons
17.1 EER / 5.1 COP
Compressor - 5 year limited ; Other parts - 1 year limited
R-454B, R32, R410A
COPELAND, HITACHI, MITSUBISHI, DANFOSS
Coaxial tube-in-tube, plate type
High efficiency finned copper pipe heat exchanger
• Hotels • High-rise apartments / condominiums • Hospitals • Dormitories • Renovated office space
230V/1Ph/50Hz or 208~ 230V/1Ph/60Hz
Withair® Vertical Stack Water Source Heat Pumps -Product-Sheet.pdf
Product Overview
—— Product Description ——
When it's time to replace your Vertical WSHP chassis…you want to install the best parts.
The Chassis Replacement is designed to exactly replace the original Vertical Stacked Water Source Heat Pump (WSHP) and provides environmentally friendly cooling and heating where individual, quiet control is a priority.
Featuring Chassis Replacement is dimensionally identical to the original for a fast, easy, and trouble-free installation. Quality components, careful design and testing and the latest in environmentally friendly technology advances mean long unit life, user satisfaction and lower energy costs. No field modification kits or builder renovations required.
Withair® has the replacement solution the competition can't match.

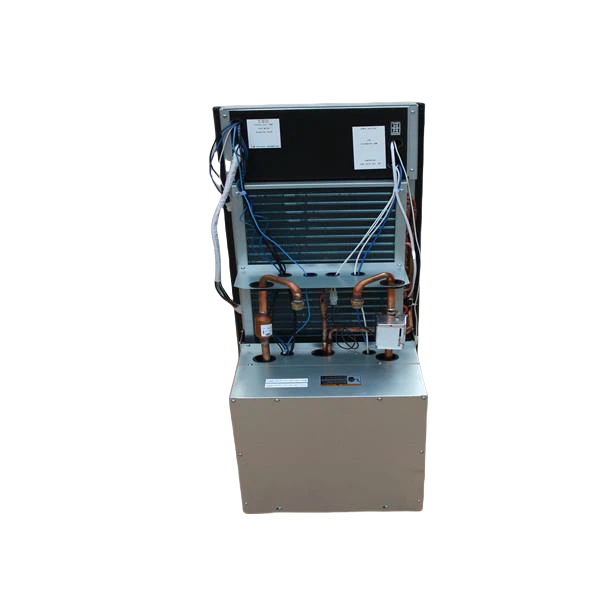

The application-flexible chassis is a part of a complete system, which consists of the chassis, blower section, control box, and furred-in room cabinet with risers. The chassis contains the compressor, air side heat exchanger, water side heat exchanger, and refrigerant circuit control and safety components.
—— The Key Advantages Include ——
• Heavy gauge G90 galvanized steel construction
• Powder painted and Stainless steel drain pan options
• Lock out circuit with reset or circuit breaker
• High pressure switch
• Frost-free cooling
• Water coil freeze protection
• Refrigerant circuit access ports
• Precision selected capillary tube refrigerant control
• Positive shift reversing valve
• Precision charged with R-454B A2L refrigerant
• 1/2 Inch FPT connections
• High efficiency copper tube-aluminum fin evaporator coil
• High efficiency coaxial condenser coil with low water-side pressure drop
• Chassis pull handle facilitates easy chassis removal and handling
• Designed for easy installation and compatibility.
Dimensionally identical to the original chassis.
• Quiet, durable, and efficient compressor with built-in pressure and temperature protection
• Factory mounted flow control with strainer & isolation valve option
Application and Benefits
* Fast and Easy Replacement
The replacement chassis fits the existing room cabinets and works with the existing blower section and control box without modification. Because the chassis dimensions and construction details are like the original, replacement work is fast and easy. The chassis installs without the need for water loop shut-down or draining. Water, drain and electrical connections line right up to the original installation. The electrical connectors plug directly into the control box connectors. A chassis pull handle is provided to facilitate easy removal and handling. Using our chassis replacements eliminate the need for room renovation, redecorating, and piping changes and is the solution that gets your property back in service quickly and at the lowest total cost.
* Damage Protection
The standard high-pressure switch and evaporator coil freeze protection stops unit operation before damage occurs, should airflow become reduced or obstructed due to dirty coils, obstructed airflow, or motor failure or lock up. A freezing protects the water coil from freeze damage due to water temperature or flow problems. The water coil is designed for low water-side pressure drop, eliminating potential pump sizing and water flow problems.
* Options and Accessories
• Blower sections
• Return air panels
• Control options
• Hose kits
• Flow control valve
