W02C1P Series
Withair®
8418612090
Product Overview
—— Product Description ——
Withair® precision air conditioning units are designed with comprehensiveness and flexibility and save the time and cost in field installation and system maintenance and management. With simple installation and connection of water supply pipelines and power supply lines in the installation site,the system's safety and reliable operations and the entire air conditioning system can be directly started and debugged and easily installed.
The highest criterion for the design strategy of Withair® precision air conditioning products is safe and reliable operation of the system. All Withair® precision air conditioners must meet the highest system efficiency requirements of users and comply with strict environmental protection requirements. Therefore, Withair® offers expanded product series to satisfy various requirements of users. Withair® precision air conditioners adopt the modular design to implement free combination of modules and the N+1 redundant backup function. Users can easily select the most suitable module system combination. In other words, flexibility of air conditioning system combination is also an excellent characteristic of Withair® precision air conditioner.
—— The Key Advantages Include ——
● Cooling capacity: 6~128 kW;
● The advanced and reliable technology can implement continuous operation for 24 hours all the year round, and the deigned operation life is over 10 years;
● The highly efficient EC fan (optional) saves energy by 45% in comparison to the traditional AC fan;
● The intelligent electronic expansion valve (EEV) (optional) saves energy by 25% in comparison to the common mechanical thermal expansion valve.
Physical Data

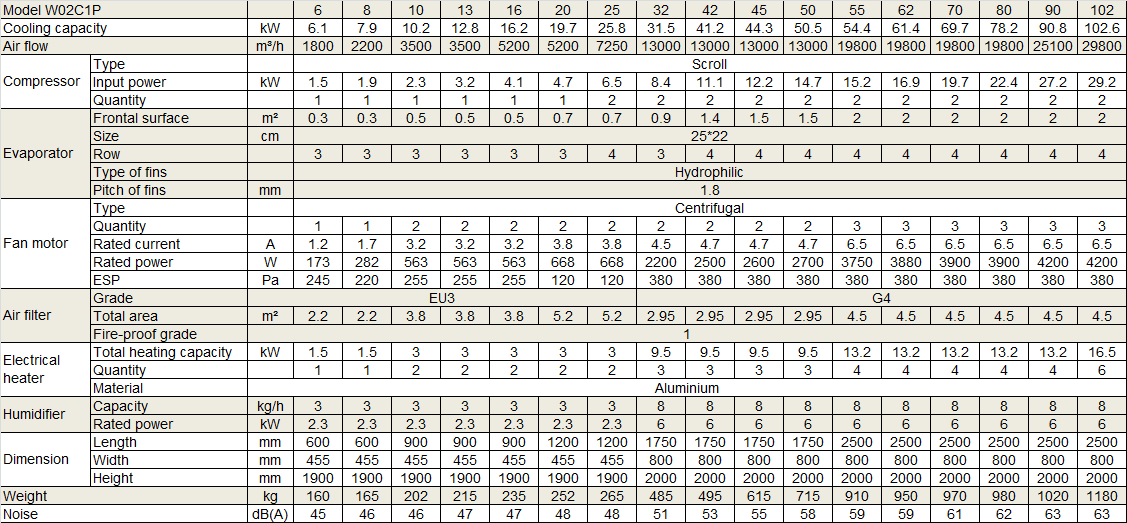

Air Cooled DX Units Series
Notes:
1.Air return temperature 24℃；relative humidity 50%; amibient 35℃.

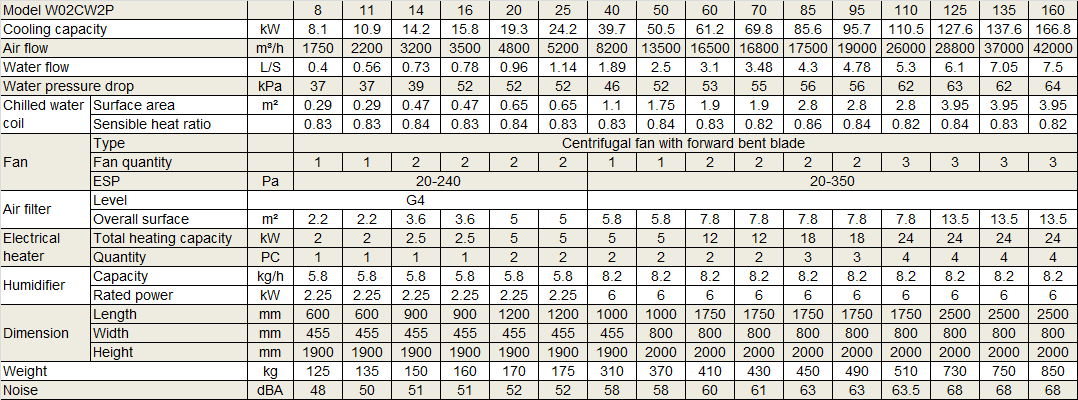

Chilled Water Units Series
Notes:
1.Standard working condition: entering chilled water temperature 7℃,leaving chilled water temperature 12℃..
Packaging & Transportation
● Four steps of pakacges, plastic film, foam, carton and plywood for stable transporation.
Withair® provides two styles package for different transporation modes:
(1). St andard package(free of charge): unit is wrapped with plastic film, foam and carton, which is suitable for container shipment & a few transshipment cargo;
