Kitchen and Bathroom Ducted & Concealed Fan Coil Unit

  • W05F Series

  • Withair® / OEM brand as option

  • 8418612090

  • 1.8 ÷ 3.6 kW

  • 2.9 ÷ 5.8 kW

  • 3 year limited

  • Hydrophilic aluminum fin coils heat exchanger

  • Office Use, Residential Use, Commercial Use

  • 230V/1Ph/50Hz (230V/110V/1Ph/60Hz as option)

  • Withair® Chilled Water Fan Coil Units Catalogue (2022 Version).pdf


Product Overview

—— Product Description ——

Withair® Fan Coil Unit is designed and manufacturted on the base of advanced technology, and utilizes qualified galvanized iron as structre material. Due to its supper thin design, it has such advantages:beautiful outer looking, space saving, easy instalation,etc. and the most obious advantage is that it can decrease the outlet air temperature difference as low as possible to make the  room more comfortable,as well as doesnt't reduce the cooling capacity output. for the large air flow volume design, it can increase room ventilation frequency, supply more fresh air, and balance room temperature distribution. benefiting from adopting of advanced material and technology, it can be widely applied in market, hospital, office building, hotel, airport and so on.


Withair® Fan Coil Unit contains ceiling exposed type,ceiling concealed type, wall type,cassette type,free standing type, universal type, Vertical High Rise Fan Coil Unit. and the air volume varies from 150CFM~2800CFM.the standard voltage supply is 220V/1P/50Hz, and 110V/1P/60Hz and 220V/1P/60Hz are also available.

Including 6 series: ceiling concealed/exposed units, floor standing units, ceiling cassette unit and so on.

Meeting customer’s various needs, presenting attractive appearance and realizing convenient installation.

—— The Key Advantages Include ——

● Aesthetic design with high-quality galvanized steel.

● Slim FCU body is specially designed for limited space.

● Hydrophilic aluminum foil improves efficiency and resists corrosion.
● Highly efficient motor and centrifugal fan ensures low-noise performance.
● Built-in water pump for option.

● The round air inlet and outlet, make the installation easily.

—— You May Like ——

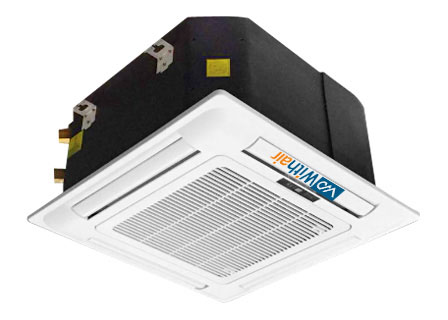

4-way cassette fan coil unit  Withair® Air Vent.jpgWithAir® flow switch.jpg Pressure Gauge(2).pngPressure Gauge(2) Withair® Air conditioning terminal switch valveWithair® Insulation pipe      Termostat controls (2)

             Fan Coil Unit      +          Air Vent      +      Flow Switch    +    Pressure gague   +   Switch Valve + Insulation pipe  +  Thermostat

Physical Data

Kitchen and Bathroom Ducted & Concealed Fan Coil Unit (2-PIPE SYSTEM)

Power supply
AC   208~230V/1Ph/50Hz (60Hz as option)
Air flowHigh   speedm3/h300600
Middle speedm3/h180360
Low speedm3/h100200
Static pressurePa12~3012~30
Cooling capacityTHHigh   speedW18003600
THMiddle   speedW13002630
THLow   speedW7651550
Heating capacityHigh   speedW29005800
Middle speedW20804180
Low speedW12353490
Noise levelHigh speeddB(A)3436
Power   inputHigh speedW2040
High   efficient copper pipe to wear Hydrophilic aluminum coil
EC   motor; The motor insulation system shall be Class E
Water flow ratem3/h0.310.62
Pressure dropkPa2130
Maximum working pressureMPa1.61.6
Condensated water pipemm26∅26∅
Coil connection & drain pipeInch3/4"3/4"
Unit dimensionL×W×Hmm570×415×200570×650×200
Net weightkg1722
1.    Cooling condition: Indoor DB=27℃(80.6℉), WB=19℃(66.2℉), water supply 7℃(44.6℉), entering/leaving water temperature difference 5℃(41℉).Notes:
2.    Heating condition: Indoor DB=21℃(69.8℉), water supply temp 60℃(140℉).

3.    All models, sizes, dimensions, and specifications are subject to change without prior notice, please refer to nameplates for the most accurate specifications

Packaging & Transportation


● Four steps of pakacges, plastic film, foam, carton and plywood for stable transporation.

● 100% test before deliverying products.
● Item shipped in 25 working days against payment depends on the quantity.
● Products catalogue, installation & operation manual will be sent together.
● Tracking number will be sent to customer as soon as we ship the products.
● Ocean shipping, railway shipment and air transportation are acceptable according to customer demand.

Withair® provides standard package(free of charge): unit is packaged by carton, which is suitable for container shipment & a few transshipment cargo;

 Withair FCU Package 1Withair FCU Package
