Hot Water Absorption Chiller

  • W02C3 Series

  • WithAir®

  • 8418692090


Product Overview

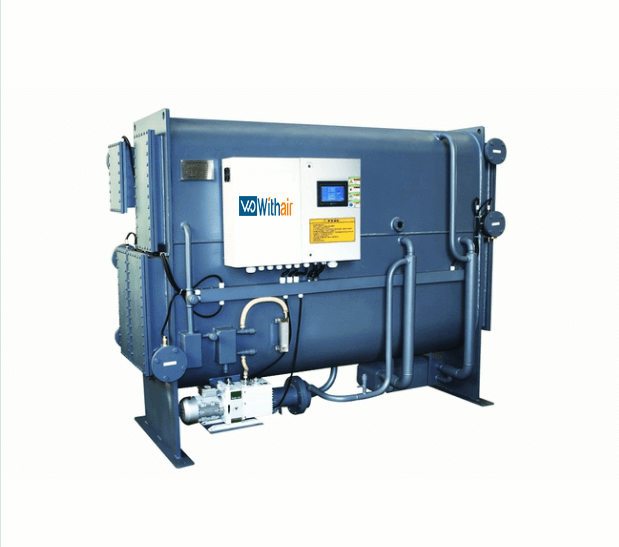

Withair® Hot Water Absorption Chiller ,adopts hot water to make cool (including to use hot water from solar)

 WithAir® Hot Water Absorption Chiller (system)

—— The key advantages Include ——


● Cooling capacity: from 11.5kW(3.5TR) and above.

● Fuel: Natural gas or diesel oil or bios.
● Refrigeration: Water.
● Absorber: Lithium bromide solution.
● Inhibitor: Lithium chromate or Lithium molybdate.
● Unit can use hot water from solar to make cool.
● It could be double effect when its inlet temp is up to 160°C.

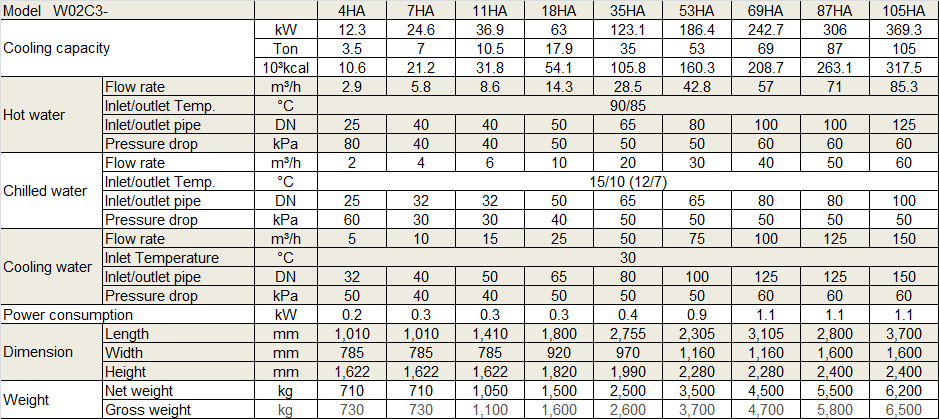

Physical Data

Physical Data of Withair® Hot Water Absorption Chiller.png

The data in the above table test as following:

1. The lowset working temperature of hot water:75°C;
2. Optional parts:cooling water tower, chilled water pump, cooling water pump, hot water adjusting valve, filter of chilled & cooling water, vacuum pump;
3. Fouling factor for chilled water :0.085m²·h·°C/kW(0.0001m²·h·°C/kcal);
4. The standard gague pressure limit for chilled/cooling water chamber ≤0.8Mpa;
5. The data in this table are for reference only, please following the nameplate parameter of this product.

Packaging & Transportation


● Four steps of pakacges, plastic film, foam, carton and plywood for stable transporation.

● 100% test before deliverying products.
● Item shipped in 25 working days against payment depends on the quantity.
● Products catalogue, installation & operation manual will be sent together.
● Tracking number will be sent to customer as soon as we ship the products.
● Ocean shipping, railway shipment and air transportation are acceptable according to customer demand.

Withair® provides two styles package for different transporation modes:

(1). St andard package(free of charge): unit is wrapped with plastic film, foam and carton, which is suitable for container shipment & a few transshipment cargo;
          withair heat pump_carton package-
(2). Special pac kage(extra charge): unit is wrapped with plastic film and wooded box, which is suitable for bulk cargo transporation;
       Withair Heat Pumps package by wooden box
