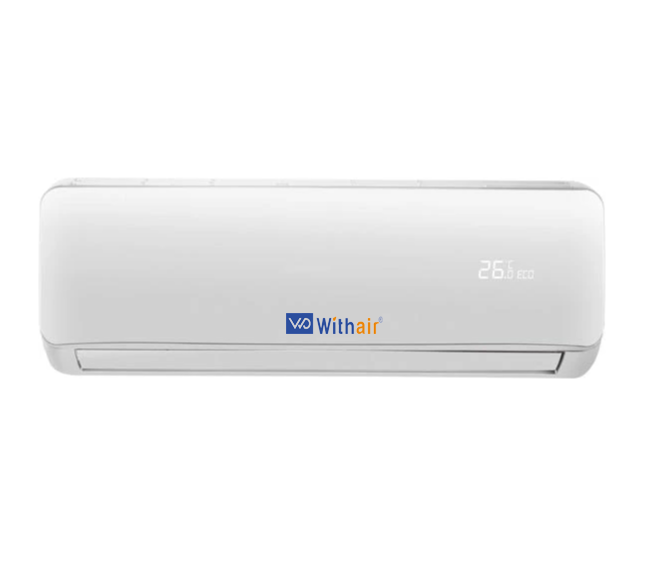

High Wall Fan Coil Unit

  • W05F Series

  • Withair® / OEM brand as option

  • 8415909090

  • 8415830000

  • 2.7 ÷ 7.2 kW

  • 4.5 ÷ 10.8 kW

  • 5 year limited

  • Hydrophilic aluminum fin coils heat exchanger

  • Office Use, Residential Use, Industrial Use

  • 230V/1Ph/50Hz (230V/110V/1Ph/60Hz as option)

  • Withair® Chilled Water Fan Coil Units Catalogue (2022 Version).pdf

Availability:

Product Overview


—— Product Description ——


Withair’s high wall fan coil unit designed for optimum comfort and high performance. Available in 6 sizes and many different configurations, and is easy to install and use, just

like a standard fan coil. The modular design allows for mounting 2-way or 3-way valves and condensate pump into the casing, without any impact on performance and footprint.

Thanks to its modern and appealing design, Withair’s high wall fan coil unit can be used for a wide range of 2-pipe applications.

All sizes can be provided with standard AC fan motors or low energy consumption EC fan motors.


Withair’s chilled water wall mounted units offer a comfortable air conditioning for residential applications, hotels and small offices. Wall mounted fan coils are terminals of a hydronic system for high wall mounted installation. They can be used with chilled or hot water to form an air conditioning system.


The consists of a fan coil unit, a heat exchange element, and a filter. Fan coils are ideal machines for summer air conditioning and winter heating of the home and of any room. Fed with cooled water coming from a chiller, they make the air of the room fresh, dry, and clean in a very short time and with great energy efficiency. The units are fed with hot water coming from a heat pump or from a common boiler and supply dry heating during the winter season.


Fan coil model for wall-mount installations, whose elegance and reduced dimensions make it aesthetically pleasing; this terminal is thus suitable for applications in residential or light commercial sectors. To respond to the various system requirements, the product is configurable and available with or without (2- or 3-way) valve, as well as with or without control board, which ensures compatibility with various system requirements.Fan coils without control board must be necessarily combined with an external control device.


Meeting customer’s various needs, presenting attractive appearance and realizing convenient installation.



—— The Key Advantages Include ——


  ●  Plastic body Hi-wall fan coil units

  ●  Availabe two-pipes system installation

  ●  Pre-fitted high quality chilled water system

  ●  Available in 0.75,1.0, 1.5, 2.0, 2.5 & 3.0TR

  ●  LCD display remote control

  ●  Multi-layer air purifying technology

  ●  Multi-fan speeds for powerful & quiet cooling/heating operation

  ●  Four-way air deflection

  ●  Selectable auto air swing

  ●  Comfortable sleeping mode

  ●  LED display with multi-temperature display on front panel

  ●  Self-diagnosis with digital display

  ●  24 hour On-Off timer

  ●  Auto clean & anti mildew function

  ●  Auto restart function

  ●  Ultra low height

  ●  Superior freedom of layout

  ●  High indoor air quality

  ●  Available with motorized & other valves

  ●  Hydrophilic aluminum foil improves efficiency and resists corrosion

  ●  Highly efficient motor and centrifugal fan ensures low-noise performance

  ●  Left/right hand chiller water connetion as option





—— You May Like ——


Concealed Type Fan Coil Unit  Withair® Air Vent.jpgWithAir® flow switch.jpg Pressure Gauge(2).pngPressure Gauge(2) Withair® Air conditioning terminal switch valveWithair® Insulation pipe      Termostat controls (2)

          Fan Coil Unit           +     Air Vent      +     Flow Switch  +  Pressure gague  +  Switch Valve + Insulation pipe    +    Thermostat

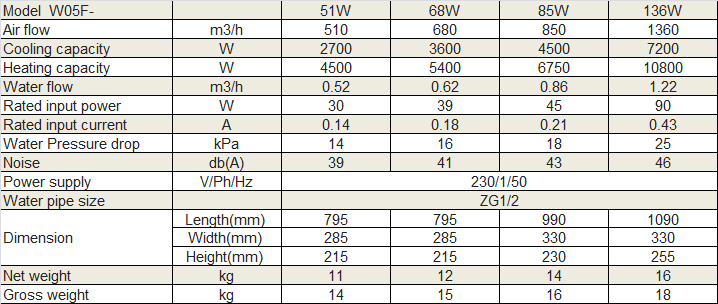

Physical Data


Physical Data of Withair® Wall type Fan Coil Unit.png

Notes:

1.    Cooling condition: Indoor DB=27℃(80.6℉), WB=19℃(66.2℉), water supply 7℃(44.6℉), entering/leaving water temperature difference 5℃(41℉).
2.    Heating condition: Indoor DB=21℃(69.8℉), water supply temp 60℃(140℉).
3.    The water pipe connection direction can be changed before installing;
4.    All models, sizes, dimensions, and specifications are subject to change without prior notice, please refer to nameplates for the most accurate specifications.

Packaging & Transportation

-

● Four steps of pakacges, plastic film, foam, carton and plywood for stable transporation.

● 100% test before deliverying products.
● Item shipped in 25 working days against payment depends on the quantity.
● Products catalogue, installation & operation manual will be sent together.
● Tracking number will be sent to customer as soon as we ship the products.

● Ocean shipping, railway shipment and air transportation are acceptable according to customer demand.


Withair® provides standard package(free of charge): unit is packaged by carton, which is suitable for container shipment & a few transshipment cargo;

Withair FCU Package 1Withair FCU Package
