W01R Series
Withair®
8415811000
Product Overview
—— Product Description ——
In the running elevator, due to external heat radiation or natural heat from the passengers and other reasons, the temperature will rise inside the car, even to "steamer" state. In order to improve the elevator riding comfort, Withair® has been committed to elevator air conditioner development and application, its advanced water treatment methods, highly automated intelligent control systems, and air conditioner automatic dust removal and other heat technology has received a number of national patents.
Withair® elevator air conditioner not only has cooling, ventilation, dust removal, dehumidification and other functions, but also heating, environmentally friendly refrigerants, sterilization and other optional features, such as easy installation and maintenance, fully meet the needs of different users. Hotels, restaurants, high-end office space, by installing an elevator air conditioner, and can effectively eliminate blind spots of central air conditioning and improve the quality of the buildings. Truly achieve cooling in the summer, warm in winter, spring ventilation, meet people’s needs for comfortable, efficient, long life elevator air conditioners, is a product to the trend of the times.
—— The key advantages Include ——
● No water drop
No electricity heating in vaporizing the condensation water, safe and electricity saving; Multiple protection from water spilling over; Efficient heat-insulation soft duct, ensuring no frost on the surface; High quality anti-rust bottom water pan.
● Low noise
International brand compressor; Dual muffler design, Damping material , absorb vibration.
● Efficient and energy saving
Highly efficient compressor, advanced heat exchanger technology; Increased air flow design, dual cooling to refrigerant; Overall system optimization to national energy conservation standards.
● Healthy and environment harmony
Efficient mildew proof screen, clearing dust; High-quality cold medium, removing harmful gas ;Negative oxygen ion, elevator car air purification and sterilization (optional).
● Convenient use
The on/off time program controlled; Start the air condition only once for the whole summer or winter; Remote control in the elevator car; Auto resume after electricity black out.
● High purification efficiency, excellent sterilization effect
Quickly and effectively eliminate more than 95% of the bacteria, viruses and others, effectively remove TVOC, formaldehyde ,benzene and other organic pollutants.The anion can inhibit dust, increase the degree of fresh air.and effectively remove smoke and hydrogen sulfide ,ammonia nitrogen and different smell.
● Running stability and security.
* Ozone concentration of equipment is less than 0.04ppm.(In china,the ministry of construction and ministry of health is rules of ozone concentration in indoors air is less than 0.15 part per million(PPM):the United Starts environmental protection agency (epa) rules of indoor air is less than 0.1 parts per million(PPM)
* Products don't cause secondary pollution (such as nitrogen oxides,etc.) ,safe and reliable in usage process.
—— You May Like ——

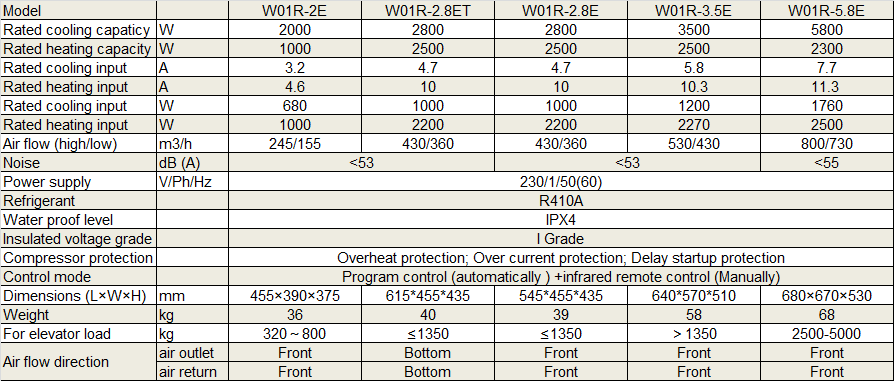

Physical Data
Note: All specifications are subject to change without prior notice, please refer to nameplates for the most accurate specifications
Packaging & Transportation
● Four steps of pakacges, plastic film, foam, carton and plywood for stable transporation.
Withair® provides two styles package for different transporation modes:
(1). St andard package(free of charge): unit is wrapped with plastic film, foam and carton, which is suitable for container shipment & a few transshipment cargo;
