5.3 ÷ 17.6 kW / 1.5 ÷ 5.0 Tons
5.8 ÷ 18.5 kW / 1.7 ÷ 5.3 Tons
3.1 EER / 3.4 COP
Compressor - 5 year limited ; Other parts - 1 year limited
R410A, R407C,R22
Scroll type; HITACHI, Daikin, Panasonic, MITSUBISHI,Copeland
High efficiency finned copper pipe heat exchanger
High efficiency finned copper pipe heat exchanger
230V/1Ph/50Hz and 380V/3Ph/50Hz (400V/415V/3Ph/50Hz, 230V/380V/460V/3Ph/60Hz as option)
Product Description
—— Product Description ——
Withair Ductable Split Air Conditioning systems offer superior performance, energy-efficiency, and comfort in stylish solutions conforming to all interior spaces and lifestyles.
Temperature control by inverter compressor, Indoor units operate quietly to meet individual temperature set points for each zone. Variable-speed compressors with wide capacity and precise modulation help maintain the temperature within a narrow range.Withair ductable split air conditioning involve a range of 6 models, with heating and cooling capacity among 1.5TR and 5.0TR, which allow to create "customized" solution, matching the different installations requests.
—— The key advantages Include ——
● Built-in hydraulic module for option.
● Intelligent defrost totally.
● Ultra Slim Design, only 290mm in height, save installation space.
● The independent design and manufacturing of high efficiency heat exchanger, strong energy saving and anti-freeing.
● Fresh air intake, fresh air makes indoor air healthy and comfortable; Long term filter.
● Electronic expansion valve throttle control, refrigerant flow control precision at at the cold temperature.
● Air side heat exchanger(hydrophilic aluminum fin) with anti-ice system design, prevent heat exchanger to frost at the cold temperature.
● Multi self-protection functions, such as: high & low pressure, high temperature, and antifreeze protection.
● Modular networking technology, the operation of individual modules can be coordinated according demand.
● Advanced & world-famous compressor high-efficiency, low-noise and low-vibration operation.
● Optional external static pressure(ESP): 50Pa and 80Pa can be freely chosen.
● Remote monitoring and control features enable the unit’s operational schedule to be set via internet or phone.
● Using modular networking technology, the operation of individual modules can be coordinated according demand.
● Built-in water pump (optional), the built-in pump can lift condensing water up to 1200mm high from the drainage pan.
● Remote control, central control and WIFI control are for options.
● Flexible air intake options, air intake from rear as standard, from bottom is optional.The size of the plate from bottom is the same as the flange from back, which makes it convenient to change installation style due to different decoration requirements.
● Applicable to a variety of room types, specific ESP design can be applied to various room types easily, like rooms of L type or U type; the air outlet can be set separately from the indoor unit, so the air flow can be equally distributed even the room is in irregular structure.

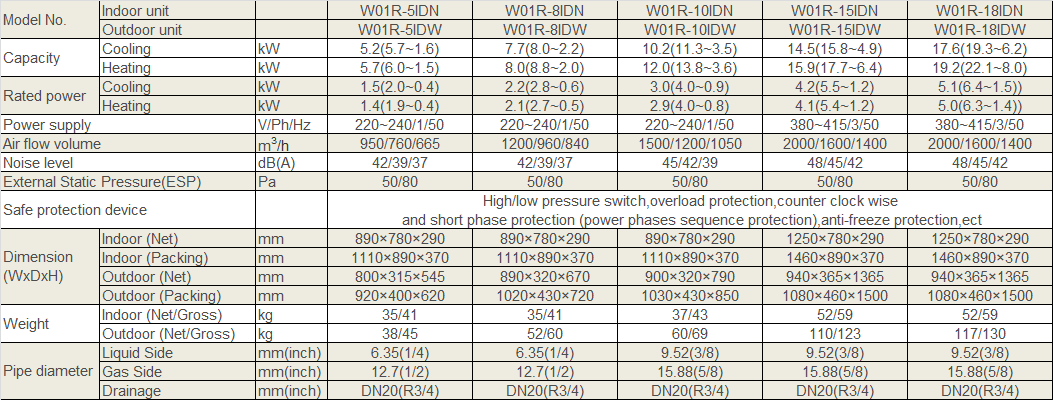

Physical Data
Ductable Split Air Conditioning
Notes:
1.Standard cooling work condition: indoor dry bulb temperature 27℃,wet bulb temperature 19℃; outdoor dry bulb temperature 35℃,wet bulb temperature 24℃.
2.Standard heating work condition: indoor dry bulb temperature 20℃; outdoor dry bulb temperature 7℃,wet bulb temperature 6℃.
3.All models, sizes, dimensions, and specifications are subject to change without prior notice, please refer to nameplates for the most accurate specifications
Packaging & Transportation
● Four steps of pakacges, plastic film, foam, carton and plywood for stable transporation.
Withair® provides two styles package for different transporation modes:
(1). Standard package(free of charge): unit is wrapped with plastic film, foam and carton,which is suitable for container shipment & a few transshipment cargo;
