W03D Series
Withair®
8415909090
Product Overview
—— Product Description ——

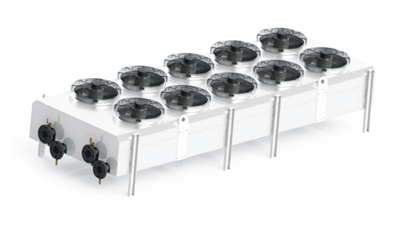

Withair® series dry coolers can be used for cooling water, glycol and industrial oil cooling etc. for the equipment that need cooling medium.
Widely apply to the air cooling ,installation of air conditioning outdoor, food processing industry ,heat plants factory and power stations etc. for the equipment that need big capacity.
Withair® customize dry coolers base on customer's requirement: different media (water, glycol and oil), multiple circuits, sub-cooling circuits, stainless steel or aluminium casing, coated aluminium or copper fins, explosion proof motor and customized fin spacing.
—— The Key Advantages Include ——
● Using low energy consumption fans ,three phase 400/3/50Hz,double speed,IP54,insulation class F, from small specification 350 fan to big 630 fan;
● Fan nozzle designs for maximum air flow and minimality noise; Separate chamber for each fan;
● Casing use galvanized steel sheet with RAL 9010 coating ,have certain corrosion protection;
● Using V-type construction for horizontal air inflow ,vertical supply air;
● Thermodynamic chooses suitable heat exchange tube ,different capacity can choose 3/8”、1/2”、5/8”tube;
● Grade 4-6-8 of fan for selection, suitable for different requirements for noise of occasion;
● Fan motor and casing are both with earthing installation;
● Floating coil system can prevent leakage medium effectively ,strong warranty the heat exchanger durable service and safe assurance
● Capacity designs for maximizing the heat transfer relative to the energy consumption of the fan;
● Tube in tube coupling design for low pressure drop in the coil on the media sides (maximum 100kPa at water designing condition);
● More 15 years long servicelife and low maintainance operation;
● Durable material and rigid enclosure with hard gloss powder coated finish;
● Protective enclosure for both manifolds and U-bends;
● Unit designs for outdoor installation;
● 100% leakage tested at 40 bar;

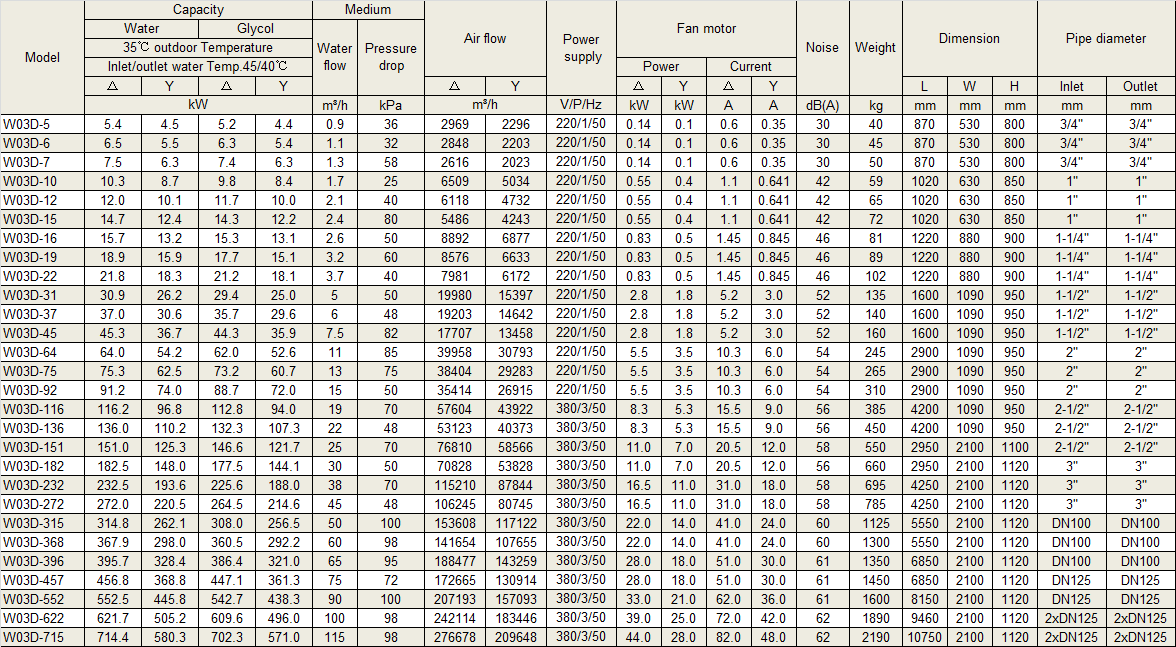

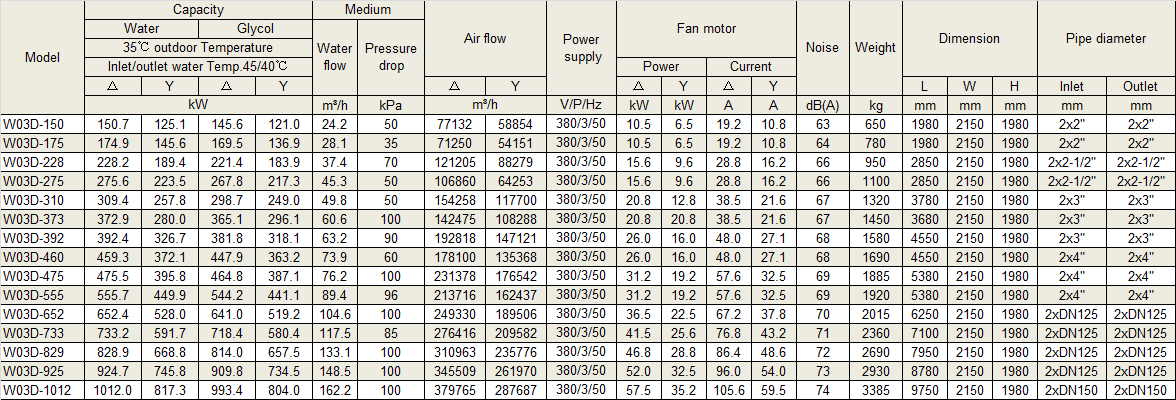

Physical Data
Heavy Capacity Series Dry Coolers
Note:
Standard unit is vertical air discharge, Horizontal air discharge is for option.
Rated working conditions: 40% relative humidity, atmosphere pressure 1bar, 20% glycol , water and oil SAE30 apply for 45℃.
3. All models, sizes, dimensions, and specifications are subject to change without prior notice, please refer to nameplates for the most accurate specifications
Packaging & Transportation

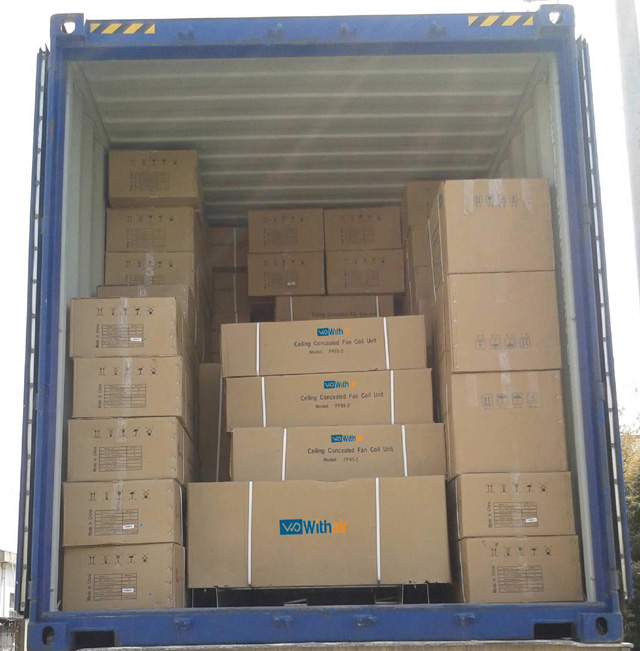

● Four steps of pakacges, plastic film, foam, carton and plywood for stable transporation.
● Ocean shipping, railway shipment and air transportation are acceptable according to customer demand.
Withair® provides two styles package for different transporation modes:
(1). Standard package(free of charge): unit is wrapped with plastic film, which is suitable for container shipment & a few transshipment cargo;
(2). Special package(extra charge): unit is wrapped with plastic film and wooded box, which is suitable for bulk cargo transporation;
