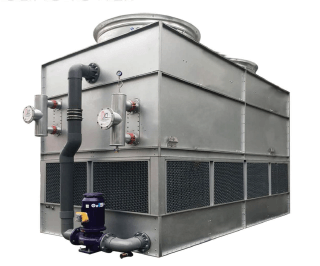

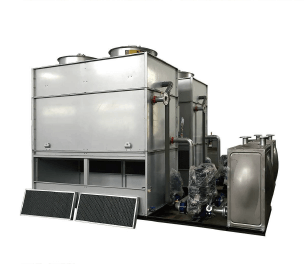

Counter-flow Closed Cooling Tower

—— Product Description ——

The heated working fluid inlet from cooling coils, then the waste heat be took away by the fall down spray water and reverse flow with the cold dry air which is inlet from the bottom of the tower and form to saturated vapor in the process. The heat is exhausted out of tower by the top fan and the water is collected to bottom tank and circulate continuously by the special evaporator.

—— The key advantages Include ——

* Energy saving & high efficiency

   Few cooling blind area, high thermal efficiency. High air duct design, make sure the equipment to meet the demand of cooling air flow rate in operation.

* A wide range of applications

   Withair® Counter-flow Closed Cooling Tower is apply to the low cooling temperature (Temp.<45 ℃ or not higher than the location wet bulb temperature

    too much ) or needs a small cooling range projects （ΔT=5-10 ℃）.

* Compact Structure

   Compare with other forms, there are no PVC fills inside, so this type’s structure is compact, installation area is less, meet the users’ space demanding.

* Supporting auxiliaries

   We can combine the tower with auxiliary together to be a whole suit, it will convenient for customers to operate, and easy to transportation & installation.

Notes:

1. Design conditions: dry bulb temp.≤31.5℃,wet bulb temp.≤28℃,relative humidity≤85%,elevation below ≤1000m.

2. Taking antifreeze measures when climate temperature below 0℃.

3. All models, sizes, dimensions, and specifications are subject to change without prior notice, please refer to nameplates for the most accurate specifications.
