Constant Temperature and Humidity Air Conditioning

Model:
W05D Series
Brand:
Withair®
Code:
8418699090

Availability:

Product Overview

—— The Flow Chart ——

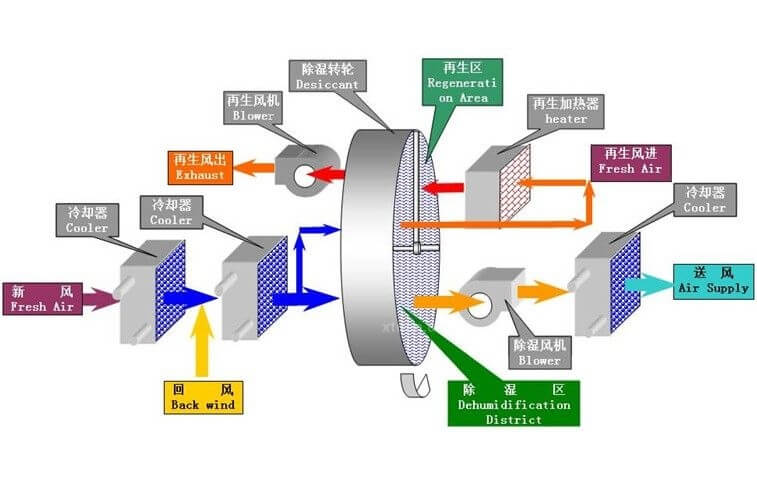

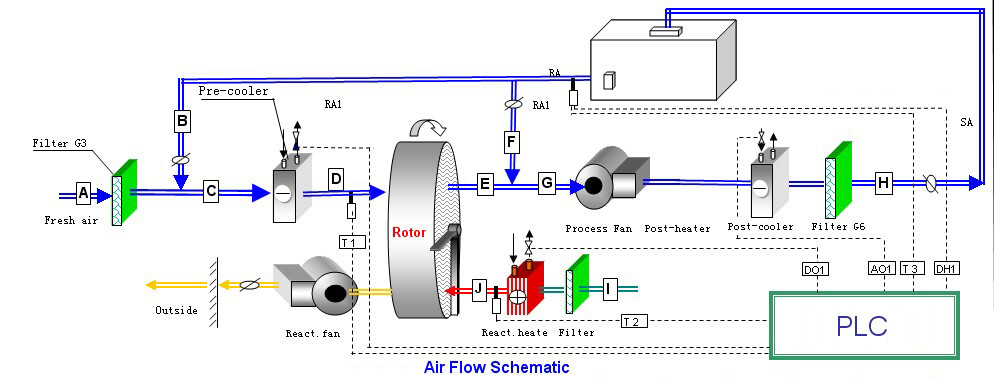

WithAir® Dehumidification system flow chart 01

—— The Key Advantages Include ——

● Wide application as workshop, exhibition hall, precision machine manufacture, metering room, etc.

● Panels and frame are made from metal steel protected with polyester powder painting to ensure total resistance to atmospheric agents.
● High efficiency scroll compressor for the whole range, with built-in thermal overload cut-out and crankcase heater, mounted on rubber vibration dampers.
● The units with high precision as well as wide range for temperature and humidity control.
● Immersed electrode humidifier provides clean humidifying with automatic washing cycle ensuring higher efficiency and increasing system life.
● Evaporator and condenser built with seamless copper tubes mechanically expanded into blue hydrophilic aluminum fins.

Physical Data

Air Cooled Constant Temperature and Humidity

Model W05C-			5ACTH	7ACTH	9ACTH	12ACTH	15ACTH	20ACTH	26ACTH	30ACTH	35ACTH	40ACTH	50ACTH	60ACTH	70ACTH	90ACTH
Cooling capacity		kW	5.0	7.0	9.0	12.0	15.0	20.0	26.0	30.0	35.0	40.0	50.0	60.0	70.0	90.0
Electrical heater		kW	3.0	4.0	6.0	7.5	8.0	12.0	15.0	18.0	20.0	22.0	28.0	35.0	40.0	45.0
Humidify capacity		kg/h	2.0	3.0	3.0	3.0	4.0	5.0	5.0	5.0	7.0	7.0	8.0	8.0	12.0	13.0
Air flow		m³/h	1,000	1,500	1,900	2,500	3,000	4,200	5,800	7,000	8,500	10,000	12,000	14,000	16,000	18,000
Power supply		V/P/Hz	380/3/50
Temperature control range		°C	12~20 , 18~28
Humidify control range		%	50~80 , 40~70, 70~95
Filter			Primary filter
Applicable area		m²	12~20	20~30	30~40	40~50	40~60	60~80	80~100	90~120	100~140	120~160	150~200	180~240	200~260	220~300
Noise		dB(A)	58	59	59	60	61	61	63	63	64	64	65	66	68	68
Dimension	Length	mm	600	600	600	780	780	1,250	1,350	1,350	1,450	1,450	1,550	1,650	1,750	1,850
	Width	mm	500	500	500	600	600	500	600	600	650	650	750	800	800	900
	Height	mm	1,880	1,880	1,880	1,880	1,880	1,880	1,880	1,880	1,880	1,880	1,880	1,880	1,880	1,880
Weight	Net weight	kg	120	140	160	195	200	310	380	430	480	530	580	660	800	900
Weight	Gross weight	kg	145	175	192	216	228	345	426	465	524	585	635	715	896	1,025

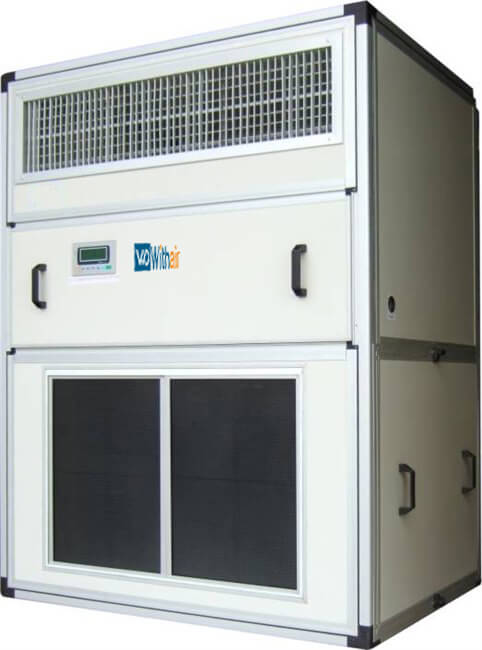

Water Cooled Constant Temperature and Humidity

Model W05D-			6WCTH	8WCTH	10WCTH	13WCTH	16WCTH	22WCTH	28WCTH	13WCTH	38WCTH	43WCTH	54WCTH	65WCTH	76WCTH	88WCTH
Cooling capacity		kW	5.8	7.9	10.0	13.0	16.0	22.0	28.0	33.0	38.0	43.0	54.0	65.0	76.0	88.0
Electrical heater		kW	3.0	4.0	6.0	7.5	8.0	12.0	15.0	18.0	20.0	22.0	28.0	35.0	40.0	45.0
Humidify capacity		kg/h	2.0	3.0	3.0	3.0	4.0	5.0	5.0	5.0	7.0	7.0	8.0	8.0	12.0	13.0
Air flow		m³/h	1,000	1,500	1,900	2,500	3,000	4,200	5,800	7,000	8,500	10,000	12,000	14,000	16,000	18,000
Power supply		V/P/Hz	380/3/50
Temperature control range		°C	12~20 , 18~28
Humidify control range		%	50~80 , 40~70, 70~95
Filter			Primary filter
Applicable area		m²	10~20	20~30	30~40	40~50	40~60	60~80	80~100	95~125	105~145	125~165	155~205	185~245	205~265	225~305
Noise		dB(A)	58	59	59	60	61	61	63	63	64	64	65	66	68	68
Dimension	Length	mm	600	600	600	780	780	1,250	1,350	1,350	1,450	1,450	1,550	1,650	1,750	1,850
	Width	mm	500	500	500	600	600	500	600	600	650	650	750	800	800	900
	Height	mm	1,800	1,800	1,800	1,800	1,800	1,800	1,800	1,800	1,800	1,800	1,800	1,800	1,800	1,800
Weight	Net weight	kg	100	120	140	170	180	260	310	380	450	480	540	600	660	800
Weight	Gross weight	kg	126	149	175	216	232	295	365	438	496	546	590	678	722	920

Packaging & Transportation

-

● Four steps of pakacges, plastic film, foam, carton and plywood for stable transporation.

● 100% test before deliverying products.

● Item shipped in 25 working days against payment depends on the quantity.

● Products catalogue, installation & operation manual will be sent together.

● Tracking number will be sent to customer as soon as we ship the products.

● Ocean shipping, railway shipment and air transportation are acceptable according to customer demand.
