26.9 ÷ 248.0 kW / 3.0 ÷ 150.1 Tons
28.8 ÷ 268.0 kW / 3.3 ÷ 168.1 Tons
3.1 EER / 3.2 COP
Compressor - 5 year limited ; Other parts - 1 year limited
R410A
Scroll type; Copeland, Danfoss, Daikin, HITACHI, Panasonic, MITSUBISHI
High efficiency finned copper pipe heat exchanger
High efficiency finned copper pipe heat exchanger
380V/3Ph/50Hz (400V/415V/3Ph/50Hz, 208V/380V/460V/1(3)Ph/60Hz as option)
Product Overview
—— Product Description ——

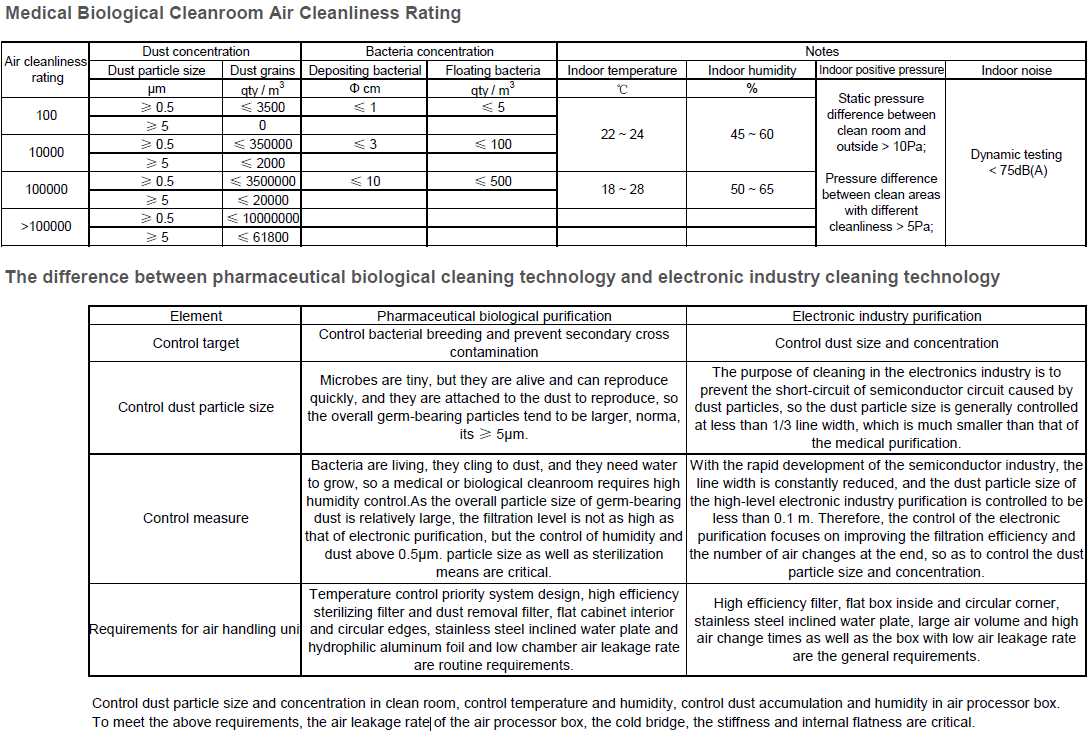

Bacteria count and cleanness of indoor air meet the comprehensive requirements of the operating room, comfort is the most basic requirement, energy-saving operation is the enduring topic of clean air-conditioners, and only reliable air-conditioning system can guarantee the health of doctors and patients.

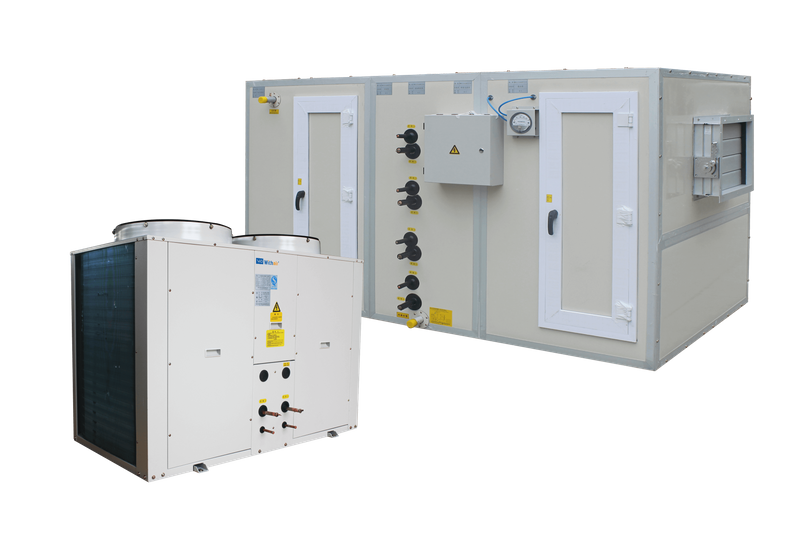

Withair have developed a direct evaporative (direct expansion) air conditioning unit for operating cleanrooms.The unit is a combined air processor with its own heat and cold source. It consists of an outdoor part (air cooled compressor condensing unit) and an indoor part (air treatment unit through direct evaporative heat exchanger, including control system). Indoor and outdoor through refrigerant pipeline connection, without water system, simple and energy-saving. At the same time, the unit also can be used in other clean room applications.
.

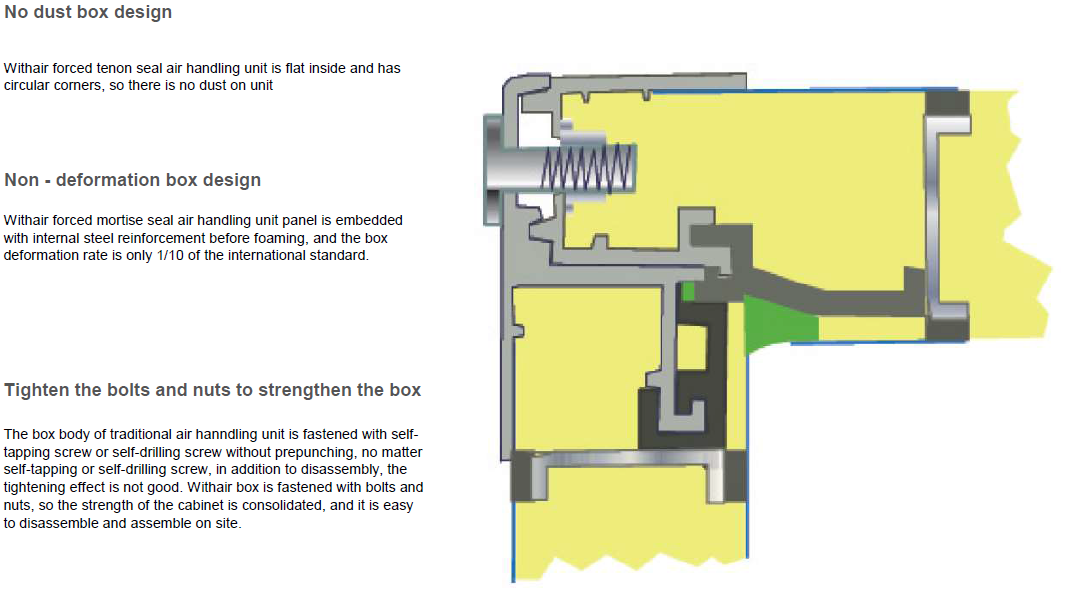

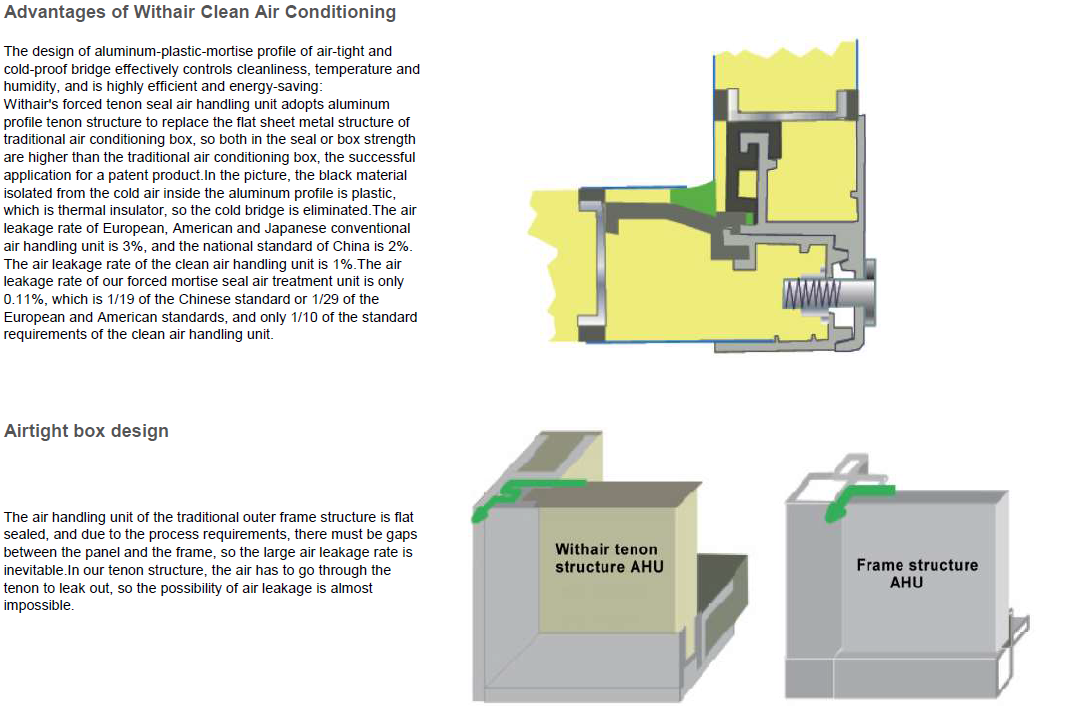

—— The Key Advantages Include ——
● All model sizes share a common, compact cabinet in a single footprint for on-site flexibility.
● Installation time and costs are reduced by easy power and control wiring. All units are factory-wired, charged and tested prior to shipment.
● Electric utility knockouts are provided on unit side and bottom for easy connections.
● Delivers clean, dehumidified outside air in all weather and climate conditions.
● Compressor is internally protected against high pressure and temperature.
● Units are engineered and built to be among the quietest models.
● Full-perimeter base rails are easily removable, yet provide a solid unit foundation.
● Durable finish, made of powder-painted, galvanized steel to meet 500-hour salt-spray test demands.
● Condensate pan is non-corrosive, long-lasting and watertight.
● Heat exchangers are corrosion-resistant, with aluminized steel tubular construction for durability and long service life.
● Post-purge induced draft combustion exhausts combustion products from the heat exchanger to prolong heat exchanger life.
● Hot surface to pilot ignition provides faster, more reliable heat delivery.
● Secured service access ports are protected, externally mounted and reusable on both high and low lines.
● Complete line of field-installed accessories,including propane and high altitude conversion kits,economizers,single-and dual-enthalpy sensors and more.
● Evaporator coils are constructed with grooved copper tubes and enhanced for construction to improve heat transfer.
● Condenser coils are constructed of MicroChannel aluminum tubing and aluminum fins for durability and long-lasting efficient operation.
● Control terminal board facilitating simple safety circuit troubleshooting and simplified control box arrangement.
● Access panels with easy grip handles and tool-less filter access door
● Belt drive evaporator-fan motor and pulley combinations available on all three phase models to meet any application
● Field convertible from vertical to horizontal airflow for slab mounting.
● Dependable time/temperature defrost board and logic.
● Loss of charge, freeze protection, and high-pressure switches
● Totally enclosed condenser motors with permanently lubricated bearings.
● Permanently lubricated evaporator-fan motor.
● Flexible Design- The unit and its associated ductwork are typically sized for only the minimum ventilation airflow required, in turn requiring less ceiling plenum height and allowing for more usable space inside the building. Reconfiguring a zone often requires moving only the downstream flex duct and supply-air diffusers; the sensible-cooling terminal units and water piping often do not need to move. And, the sensible-cooling terminal units can be equipped with either a hot-water coil or electric heater, if necessary.
● Low Maintenance- No condensation occurs at the zone-level terminal units, meaning no drain pans to clean and no condensate drain traps and piping to install and maintain. And, since the cooling coil in each terminal unit operates dry, an optional upstream filter is available, but not required.

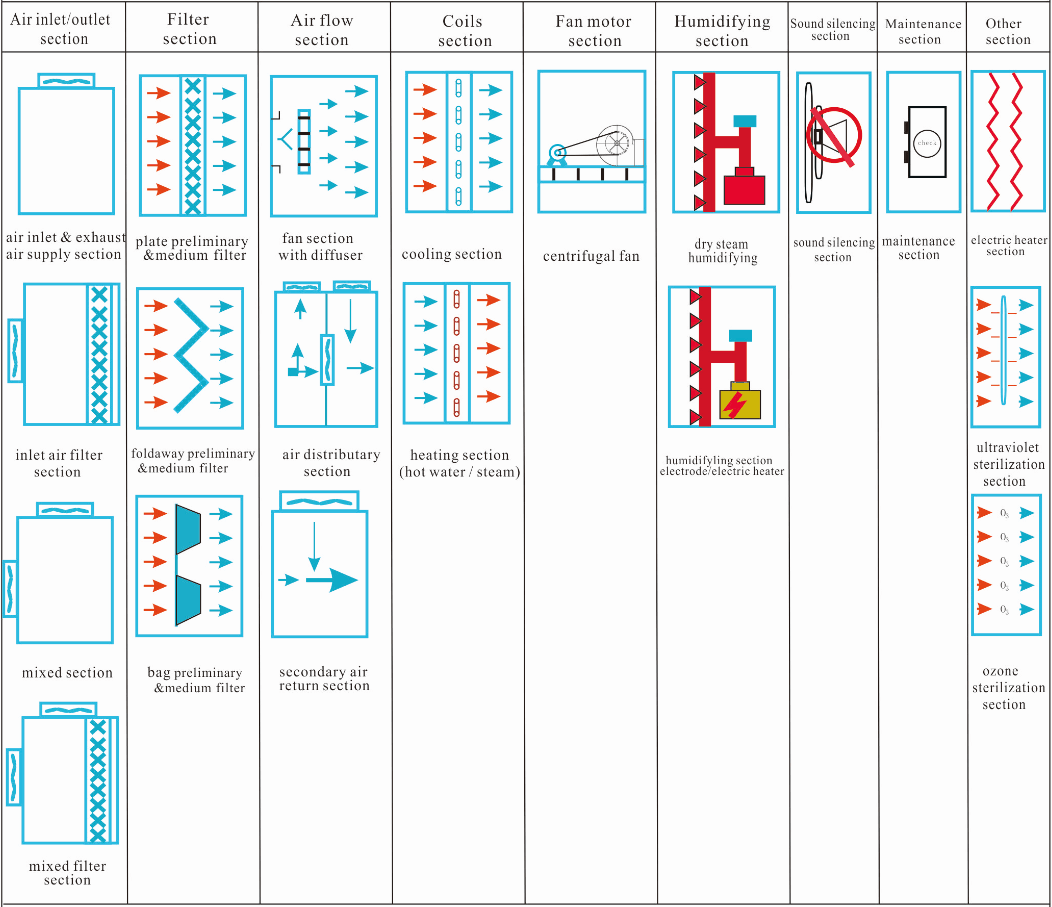

—— Common Functions Illustration ——

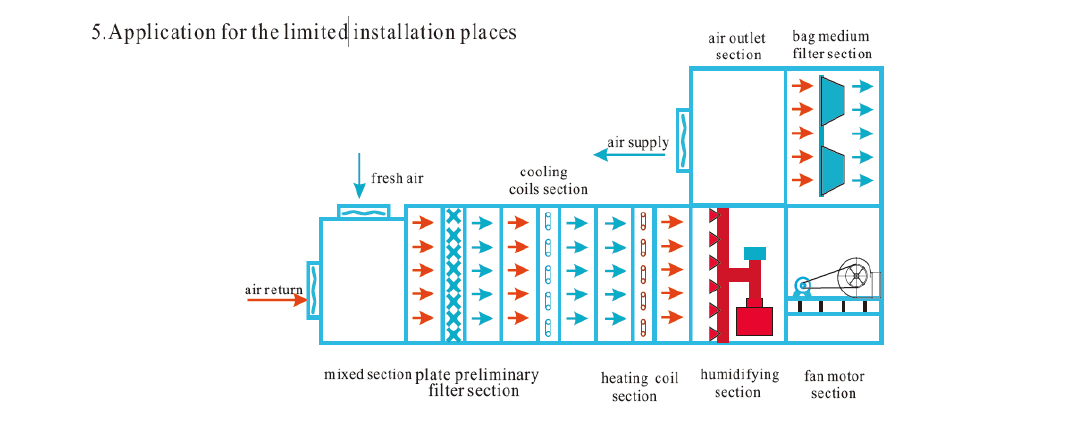

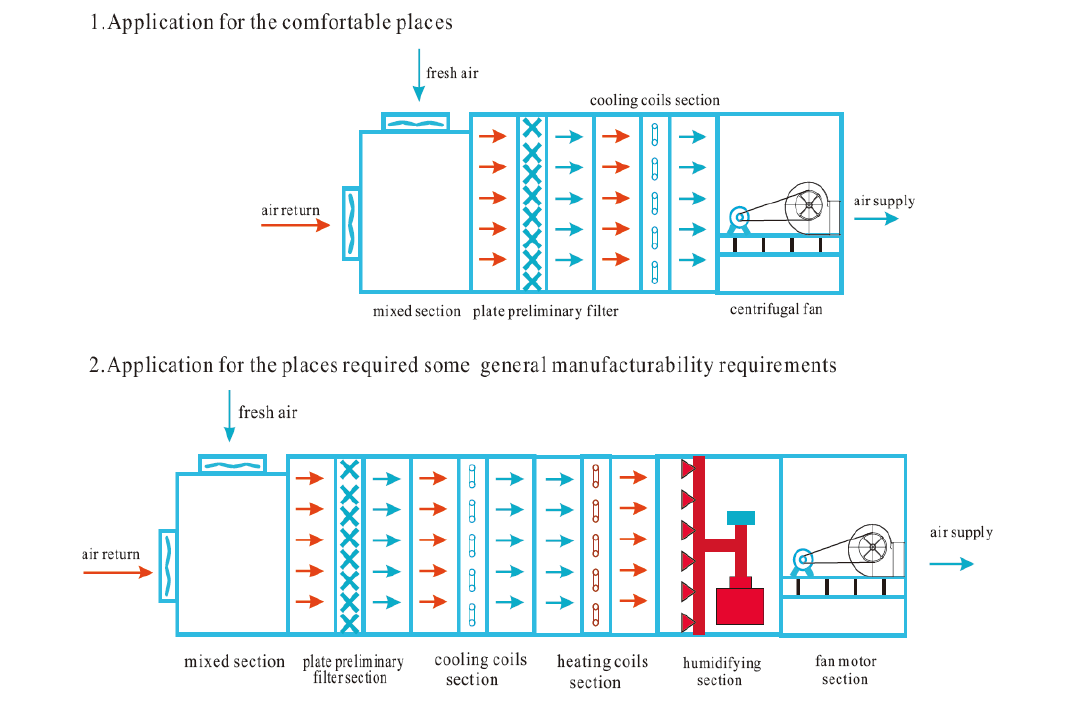

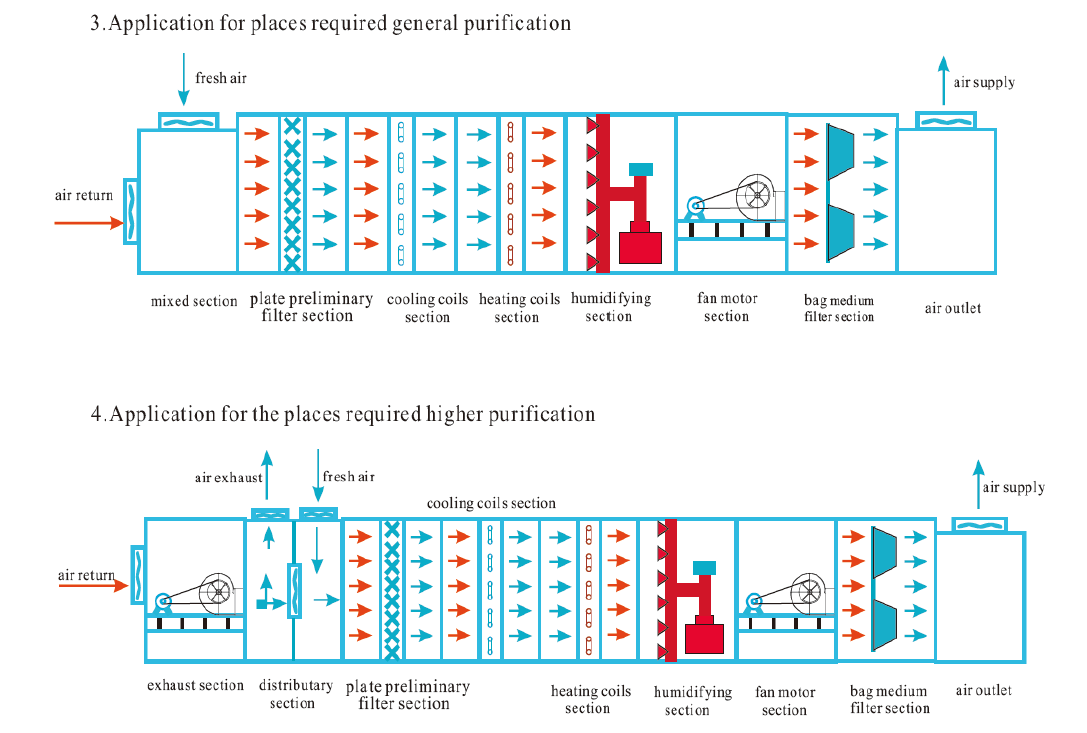

—— Different Applications ——
Physical Data
Ordinary type
| Model No. | Indoor unit | W01CI | 0613-C(H) | 0616-C(H) | 0816-C(H) | 0819-C(H) | 0919-C(H) | 1316-C(H) |
| Outdoor unit | W01CO | 100AC(H) | 125AC(H) | 140AC(H) | 200AC(H) | 250AC(H) | 140AC(H)M*2 | |
| Capacity | Cooling | kW | 26.9 | 31.0 | 39.0 | 52.5 | 62.0 | 78.0 |
| Ton | 7.6 | 8.8 | 11.1 | 14.9 | 17.6 | 22.2 | ||
| Heating | kW | 28.8 | 34.5 | 43.0 | 58.5 | 67.0 | 86.0 | |
| Ton | 8.2 | 9.8 | 12.2 | 16.6 | 19.1 | 24.5 | ||
| Air flow rate | m3/h | 5100 | 6150 | 7500 | 10000 | 12000 | 15000 | |
| Cooling coil length | mm | 600 | 600 | 600 | 600 | 600 | 600 | |
| Electric data | Power supply | V/Ph/Hz | 380~415/3/50 (60) | 380~415/3/50 (60) | 380~415/3/50 (60) | 380~415/3/50 (60) | 380~415/3/50 (60) | 380~415/3/50 (60) |
| Cooling input power | kW | 9.2 | 10.7 | 13.1 | 17.8 | 20.6 | 13.1 | |
| Heating input power | kW | 9.0 | 10.2 | 12.8 | 17.3 | 20.1 | 12.8 | |
| Cooling current | A | 17.2 | 19.7 | 25.3 | 33.6 | 38.3 | 25.3 | |
| Heating current | A | 16.4 | 18.9 | 24.5 | 32.5 | 37.2 | 24.5 | |
| Outdoor unit (single unit) | Length | mm | 1403 | 1403 | 1560 | 1808 | 1808 | 1560 |
| Width | mm | 821 | 821 | 890 | 1090 | 1090 | 890 | |
| Height | mm | 1012 | 1012 | 1240 | 1240 | 1240 | 1240 | |
| Weight | kg | 225 | 256 | 320 | 480 | 520 | 320 | |
| Safe protection device | High/low pressure switch,overload protection,counter clock wise and short phase protection (power phases sequence protection),anti-freeze protection,ect | |||||||
| Compressor type | Advanced fully hermetic scroll compressor | |||||||
| Refrigerant type | HFC- R410A | |||||||
| Pipe size | Liquid pipe | Φmm | 12.7*2 | 12.7*2 | 12.7*2 | 15.88*2 | 15.88*2 | 12.7*4 |
| Gas pipe | Φmm | 19.05*2 | 19.05*2 | 22.23*2 | 28.6*2 | 28.6*2 | 22.23*4 | |
| Connecting method | Welding connection | |||||||
| Model No. | Indoor unit | W01CI | 1519-C(H) | 1719-C(H) | 2119-C(H) | 2419-C(H) | 2525-C(H) |
| Outdoor unit | W01CO | 200AC(H)M*2 | 250AC(H)M*2 | 200AC(H)M*3 | 250AC(H)M*3 | 250AC(H)M*4 | |
| Capacity | Cooling | kW | 106.0 | 124.0 | 158.5 | 187.0 | 251.0 |
| Ton | 30.1 | 35.3 | 45.1 | 53.2 | 71.4 | ||
| Heating | kW | 118.0 | 136.0 | 177.5 | 203.0 | 271.0 | |
| Ton | 33.6 | 38.7 | 50.5 | 57.7 | 77.1 | ||
| Air flow rate | m3/h | 20000 | 24000 | 31000 | 37500 | 49000 | |
| Cooling coil length | mm | 600 | 600 | 900 | 900 | 900 | |
| Electric data | Power supply | V/Ph/Hz | 380~415/3/50 (60) | 380~415/3/50 (60) | 380~415/3/50 (60) | 380~415/3/50 (60) | 380~415/3/50 (60) |
| Cooling input power | kW | 17.8*2 | 20.6*2 | 17.8*3 | 20.6*3 | 20.6*4 | |
| Heating input power | kW | 17.3*2 | 20.1*2 | 17.3*3 | 20.1*3 | 20.1*4 | |
| Cooling current | A | 33.6*2 | 38.3*2 | 33.6*3 | 38.3*3 | 38.3*4 | |
| Heating current | A | 32.5*2 | 37.2*2 | 32.5*3 | 37.2*3 | 37.2*4 | |
| Outdoor unit (single unit) | Length | mm | 1808 | 1808 | 1808 | 1808 | 1808 |
| Width | mm | 1090 | 1090 | 1090 | 1090 | 1090 | |
| Height | mm | 1240 | 1240 | 1240 | 1240 | 1240 | |
| Weight | kg | 480 | 520 | 480 | 520 | 520 | |
| Safe protection device | High/low pressure switch,overload protection,counter clock wise and short phase protection (power phases sequence protection),anti-freeze protection,ect | ||||||
| Compressor type | Advanced fully hermetic scroll compressor | ||||||
| Refrigerant type | HFC- R410A | ||||||
| Pipe size | Liquid pipe | Φmm | 15.88*4 | 15.88*4 | 15.88*6 | 15.88*6 | 15.88*8 |
| Gas pipe | Φmm | 28.6*4 | 28.6*4 | 28.6*6 | 28.6*6 | 28.6*8 | |
| Connecting method | Welding connection | ||||||
Notes:
1. Cooling condition: indoor air inlet dry bulb temperature 27℃, wet bulb temperature 19℃, outdoor air inlet dry bulb temperature 35℃,wet bulb temperature 24℃.
2. Heating condition: indoor air inlet dry bulb temperature 20℃, wet bulb temperature 15℃, outdoor air inlet dry bulb temperature 7℃, wet bulb temperature 6℃.
3. All specifications are subject to change without prior notice, please refer to nameplates for the most accurate specifications.
Constant temperature and humidity type
| Model No. | Indoor unit | W01CI | 0811-T | 0814-T | 0915-T | 1116-T | 1118-T | 1220-T |
| Outdoor unit | W01CO | 100ACT | 125ACT | 140ACT | 200ACT | 250ACT | 140ACTM*2 | |
| Capacity | Cooling | kW | 25.0 | 31.0 | 39.0 | 52.5 | 62.0 | 78.0 |
| Ton | 7.1 | 8.8 | 11.1 | 14.9 | 17.6 | 22.2 | ||
| Heating | kW | 20.0 | 24.0 | 30.0 | 35.0 | 45.0 | 60.0 | |
| Ton | 5.7 | 6.8 | 8.5 | 10.0 | 12.8 | 17.1 | ||
| Indoor unit | Air flow rate | m3/h | 5000 | 6150 | 7500 | 10000 | 12000 | 15000 |
| Cooling coil length | mm | 600 | 600 | 600 | 600 | 600 | 600 | |
| Temp. setting | 20~26℃±1℃ | 20~26℃±1℃ | 20~26℃±1℃ | 20~26℃±1℃ | 20~26℃±1℃ | 20~26℃±1℃ | ||
| Humidity setting | 45~65℃±5% | 45~65℃±5% | 45~65℃±5% | 45~65℃±5% | 45~65℃±5% | 45~65℃±5% | ||
| Power supply | V/Ph/Hz | 380~415/3/50 (60) | 380~415/3/50 (60) | 380~415/3/50 (60) | 380~415/3/50 (60) | 380~415/3/50 (60) | 380~415/3/50 (60) | |
| Electric heater | kW | 20.0 | 24.0 | 30.0 | 35.0 | 45.0 | 55.0 | |
| Humidifier | Electrode humidifier | |||||||
| kW | 6.7 | 11.2 | 11.2 | 16.5 | 16.5 | 21.7 | ||
| kg/h | 8.0 | 10.0 | 13.0 | 16.0 | 21.0 | 26.0 | ||
| pipe | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | ||
| Outdoor unit (single unit) | Power supply | V/Ph/Hz | 380~415/3/50 (60) | 380~415/3/50 (60) | 380~415/3/50 (60) | 380~415/3/50 (60) | 380~415/3/50 (60) | 380~415/3/50 (60) |
| Cooling input power | kW | 9.2 | 10.7 | 13.1 | 17.8 | 20.6 | 13.1 | |
| Heating input power | kW | 9.0 | 10.2 | 12.8 | 17.3 | 20.1 | 12.8 | |
| Cooling current | A | 17.2 | 19.7 | 25.3 | 33.6 | 38.3 | 25.3 | |
| Heating current | A | 16.4 | 18.9 | 24.5 | 32.5 | 37.2 | 24.5 | |
| Length | mm | 1403 | 1403 | 1560 | 1808 | 1808 | 1560 | |
| Width | mm | 821 | 821 | 890 | 1090 | 1090 | 890 | |
| Height | mm | 1012 | 1012 | 1240 | 1240 | 1240 | 1240 | |
| Weight | kg | 225 | 256 | 320 | 480 | 520 | 320 | |
| Safe protection device | High/low pressure switch,overload protection,counter clock wise and short phase protection (power phases sequence protection),anti-freeze protection,ect | |||||||
| Compressor type | Advanced fully hermetic scroll compressor | |||||||
| Refrigerant type | HFC- R410A | |||||||
| Pipe size | Liquid pipe | Φmm | 12.7*2 | 12.7*2 | 12.7*2 | 15.88*2 | 15.88*2 | 12.7*4 |
| Gas pipe | Φmm | 19.05*2 | 19.05*2 | 22.23*2 | 28.6*2 | 28.6*2 | 22.23*4 | |
| Connecting method | Welding connection | |||||||
| Model No. | Indoor unit | W01CI | 1820-T | 1922-T | 2620-T | 2722-T | 2530-T |
| Outdoor unit | W01CO | 200ACTM*2 | 250ACTM*2 | 200ACTM*3 | 250ACTM*3 | 250ACTM*4 | |
| Capacity | Cooling | kW | 100.0 | 124.0 | 150.0 | 186.0 | 248.0 |
| Ton | 28.4 | 35.3 | 42.6 | 52.9 | 70.5 | ||
| Heating | kW | 70.0 | 90.0 | 105.0 | 135.0 | 180.0 | |
| Ton | 19.9 | 25.6 | 29.9 | 38.4 | 51.2 | ||
| Indoor unit | Air flow rate | m3/h | 20000 | 24000 | 30000 | 36000 | 48000 |
| Cooling coil length | mm | 600 | 600 | 900 | 900 | 900 | |
| Temp. setting | 20~26℃±1℃ | 20~26℃±1℃ | 20~26℃±1℃ | 20~26℃±1℃ | 20~26℃±1℃ | ||
| Humidity setting | 45~65℃±5% | 45~65℃±5% | 45~65℃±5% | 45~65℃±5% | 45~65℃±5% | ||
| Power supply | V/Ph/Hz | 380~415/3/50 (60) | 380~415/3/50 (60) | 380~415/3/50 (60) | 380~415/3/50 (60) | 380~415/3/50 (60) | |
| Electric heater | kW | 70.0 | 90.0 | 100.0 | 140.0 | 180.0 | |
| Humidifier | Electrode humidifier | ||||||
| kW | 33.7 | 33.7 | 45.0 | 45.0 | 67.5 | ||
| kg/h | 32.0 | 41.0 | 50.0 | 55.0 | 82.0 | ||
| pipe | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | ||
| Outdoor unit (single unit) | Power supply | V/Ph/Hz | 380~415/3/50 (60) | 380~415/3/50 (60) | 380~415/3/50 (60) | 380~415/3/50 (60) | 380~415/3/50 (60) |
| Cooling input power | kW | 17.8 | 20.6 | 17.8 | 20.6 | 20.6 | |
| Heating input power | kW | 17.3 | 20.1 | 17.3 | 20.1 | 20.1 | |
| Cooling current | A | 33.6 | 38.3 | 33.6 | 38.3 | 38.3 | |
| Heating current | A | 32.5 | 37.2 | 32.5 | 37.2 | 37.2 | |
| Length | mm | 1808 | 1808 | 1808 | 1808 | 1808 | |
| Width | mm | 1090 | 1090 | 1090 | 1090 | 1090 | |
| Height | mm | 1240 | 1240 | 1240 | 1240 | 1240 | |
| Weight | kg | 480 | 520 | 480 | 520 | 520 | |
| Safe protection device | High/low pressure switch,overload protection,counter clock wise and short phase protection (power phases sequence protection),anti-freeze protection,ect | ||||||
| Compressor type | Advanced fully hermetic scroll compressor | ||||||
| Refrigerant type | HFC- R410A | ||||||
| Pipe size | Liquid pipe | Φmm | 15.88*4 | 15.88*4 | 15.88*6 | 15.88*6 | 15.88*8 |
| Gas pipe | Φmm | 28.6*4 | 28.6*4 | 28.6*6 | 28.6*6 | 28.6*8 | |
| Connecting method | Welding connection | ||||||
Notes:
1. Cooling condition: indoor air inlet dry bulb temperature 24℃, wet bulb temperature 17℃, outdoor air inlet dry bulb temperature 35℃,wet bulb temperature 24℃.
2. All specifications are subject to change without prior notice, please refer to nameplates for the most accurate specifications.
100% Fresh air type
| Model No. | Indoor unit | W01CI | 0512-C(H)F | 0613-C(H)F | 0715-C(H)F | 0717-C(H)F | 0818-C(H)F |
| Outdoor unit | W01CO | 100ACT | 125ACT | 140ACT | 200ACT | 250ACT | |
| Capacity | Cooling | kW | 26.8 | 33.5 | 40.0 | 55.0 | 68.0 |
| Ton | 7.6 | 9.5 | 11.4 | 15.6 | 19.3 | ||
| Heating | kW | 19.4 | 23.5 | 31.5 | 39.5 | 49.5 | |
| Ton | 5.5 | 6.7 | 9.0 | 11.2 | 14.1 | ||
| Indoor unit | Air flow rate | m3/h | 2500 | 3000 | 4000 | 5000 | 6000 |
| Cooling coil length | mm | 600 | 600 | 700 | 700 | 700 | |
| Outdoor unit (single unit) | Power supply | V/Ph/Hz | 380~415/3/50 (60) | 380~415/3/50 (60) | 380~415/3/50 (60) | 380~415/3/50 (60) | 380~415/3/50 (60) |
| Cooling input power | kW | 9.2 | 10.7 | 13.1 | 17.8 | 20.6 | |
| Heating input power | kW | 9.0 | 10.2 | 12.8 | 17.3 | 20.1 | |
| Cooling current | A | 17.2 | 19.7 | 25.3 | 33.6 | 38.3 | |
| Heating current | A | 16.4 | 18.9 | 24.5 | 32.5 | 37.2 | |
| Length | mm | 1403 | 1403 | 1560 | 1808 | 1808 | |
| Width | mm | 821 | 821 | 890 | 1090 | 1090 | |
| Height | mm | 1012 | 1012 | 1240 | 1240 | 1240 | |
| Weight | kg | 225 | 256 | 320 | 480 | 520 | |
| Safe protection device | High/low pressure switch,overload protection,counter clock wise and short phase protection (power phases sequence protection),anti-freeze protection,ect | ||||||
| Compressor type | Advanced fully hermetic scroll compressor | ||||||
| Refrigerant type | HFC- R410A | ||||||
| Pipe size | Liquid pipe | Φmm | 12.7*2 | 12.7*2 | 12.7*2 | 15.88*2 | 15.88*2 |
| Gas pipe | Φmm | 19.05*2 | 19.05*2 | 22.23*2 | 28.6*2 | 28.6*2 | |
| Connecting method | Welding connection | ||||||
| Model No. | Indoor unit | W01CI | 1315-C(H)F | 1517-C(H)F | 1718-C(H)F | 1622-C(H)F |
| Outdoor unit | W01CO | 140AC(H)FM*2 | 200AC(H)FM*2 | 250AC(H)FM*2 | 200AC(H)FM*3 | |
| Capacity | Cooling | kW | 80.0 | 110.0 | 136.0 | 165.0 |
| Ton | 22.7 | 31.3 | 38.7 | 46.9 | ||
| Heating | kW | 63.0 | 79.0 | 99.0 | 118.5 | |
| Ton | 17.9 | 22.5 | 28.1 | 33.7 | ||
| Indoor unit | Air flow rate | m3/h | 8000 | 10000 | 12000 | 15000 |
| Cooling coil length | mm | 700 | 800 | 800 | 900 | |
| Outdoor unit (single unit) | Power supply | V/Ph/Hz | 380~415/3/50 (60) | 380~415/3/50 (60) | 380~415/3/50 (60) | 380~415/3/50 (60) |
| Cooling input power | kW | 13.1 | 17.8 | 20.6 | 17.8 | |
| Heating input power | kW | 17.3 | 17.3 | 20.1 | 17.3 | |
| Cooling current | A | 25.3 | 33.6 | 38.3 | 33.6 | |
| Heating current | A | 24.5 | 32.5 | 37.2 | 32.5 | |
| Length | mm | 1560 | 1808 | 1808 | 1808 | |
| Width | mm | 890 | 1090 | 1090 | 1090 | |
| Height | mm | 1240 | 1240 | 1240 | 1240 | |
| Weight | kg | 320 | 480 | 520 | 480 | |
| Safe protection device | High/low pressure switch,overload protection,counter clock wise and short phase protection (power phases sequence protection),anti-freeze protection,ect | |||||
| Compressor type | Advanced fully hermetic scroll compressor | |||||
| Refrigerant type | HFC- R410A | |||||
| Pipe size | Liquid pipe | Φmm | 12.7*4 | 15.88*4 | 15.88*4 | 15.88*6 |
| Gas pipe | Φmm | 22.23*4 | 28.6*4 | 28.6*4 | 28.6*6 | |
| Connecting method | Welding connection | |||||
Notes:
1. Cooling condition: indoor air inlet dry bulb temperature 34℃, wet bulb temperature 28℃.
2. Heating condition: indoor air inlet dry bulb temperature 7℃, wet bulb temperature 6℃.
3. All specifications are subject to change without prior notice, please refer to nameplates for the most accurate specifications.

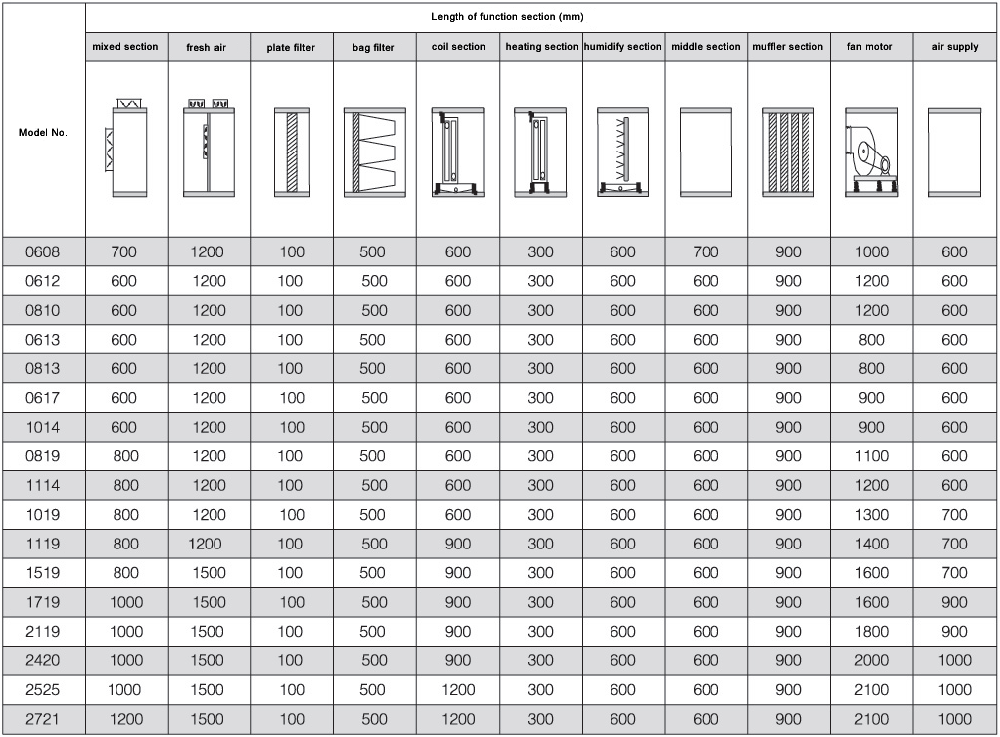

Dimension of Function Section
Packaging & Transportation
● Four steps of pakacges, plastic film, foam, carton and plywood for stable transporation.
Withair® provides two styles package for different transporation modes:
(1). St andard package(free of charge): unit is wrapped with plastic film, foam and carton, which is suitable for container shipment & a few transshipment cargo;
Catalogue Download
