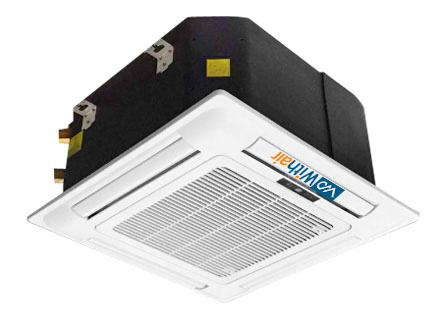

Cassette Fan Coil Unit

Model:
W05F Series
Brand:
Withair® / OEM brand as option
Code:
8418612090
Cooling capacity:
1.8 ÷ 12.6 kW
Heating capacity:
2.7 ÷ 18.9 kW
Warranty:
3 year limited
Condenser:
Hydrophilic aluminum fin coils heat exchanger
Applications:
Office Use, Residential Use, Commercial Use
Power supply:
230V/1Ph/50Hz (230V/110V/1Ph/60Hz as option)
E - Catalogue:
Withair® Chilled Water Fan Coil Units Catalogue (2022 Version).pdf

Availability:



Get Best Quote

Product Overview

—— Product Description ——

Withair® Fan Coil Unit is designed and manufacturted on the base of advanced technology, and utilizes qualified galvanized iron as structre material. Due to its supper thin design, it has such advantages:beautiful outer looking, space saving, easy instalation,etc. and the most obious advantage is that it can decrease the outlet air temperature difference as low as possible to make the room more comfortable,as well as doesnt't reduce the cooling capacity output. for the large air flow volume design, it can increase room ventilation frequency, supply more fresh air, and balance room temperature distribution. benefiting from adopting of advanced material and technology, it can be widely applied in market, hospital, office building, hotel, airport and so on.

Withair® Fan Coil Unit contains ceiling exposed type,ceiling concealed type, wall type,cassette type,free standing type, universal type. and the air volume varies from 150CFM~2800CFM.the standard voltage supply is 220V/1P/50Hz, and 110V/1P/60Hz and 220V/1P/60Hz are also available.

Including 6 series: ceiling concealed/exposed units, floor standing units, ceiling cassette unit and so on.

Meeting customer’s various needs, presenting attractive appearance and realizing convenient installation.

—— The Key Advantages Include ——

● Aesthetic design with high-quality galvanized steel.

● Available in two-pipe，three-pipe and four-pipe configurations.

● Hydrophilic aluminum foil improves efficiency and resists corrosion.

● Highly efficient motor and centrifugal fan ensures low-noise performance.

● Built-in water pump for option.

● Proprietary symmetric design allows pipe entrance to be installed on either side of the unit to adapt to building conditions.

—— You May Like ——

Fan Coil Unit + Air Vent + Flow Switch + Pressure gague + Switch Valve + Insulation pipe + Thermostat

Physical Data

Four-way Cassette Type Fan Coil Unit (two-pipe system)

Model			W05F-	51K4M2	68K4M2	85K4M2	102K4M2	136K4M2	170K4M2	204K4M2	238K4M2	272K4M2
Power supply				AC 208~230V/1Ph/50Hz (60Hz as option)
Air flow		High speed	m³/h	550	680	880	1050	1380	1750	2050	2200	2720
		Middle speed	m³/h	440	540	700	840	1100	1400	1640	1760	2040
		Low speed	m³/h	330	410	530	630	830	1050	1230	1320	1360
Static pressure			Pa	0	0	0	0	0	0	0	0	0
Cooling capacity	TH	High speed	W	3000	3800	4900	5800	7500	9800	11000	12000	15000
	SH	High speed	W	2200	2850	3500	4250	5500	7150	8250	9100	11175
	TH	Middle speed	W	2550	3250	4150	4950	6400	8350	9350	10200	12450
	SH	Middle speed	W	1800	2350	2850	3500	4550	5950	6850	7650	9560
	TH	Low speed	W	2050	2600	3400	4000	5200	6750	7600	8300	10300
	SH	Low speed	W	1400	1850	2300	2800	3600	4700	5450	6000	8400
Heating capacity	High speed		W	4700	5900	7600	9000	11600	15200	17100	18600	2400
	Middle speed		W	4000	5000	6450	7650	9850	12900	14550	15800	19900
	Low speed		W	3150	3950	5100	6050	7750	10200	11450	12450	15200
Noise level	High speed		dB(A)	40	42	42	44	46	47	50	51	53
Power input	High speed		W	50	58	70	95	130	160	190	210	230
Coil				High efficient copper pipe to wear Hydrophilic aluminum coil
Fan				Cross-flow
Motor				AC motor; The motor insulation system shall be Class E
Water flow rate			m³/h	0.51	0.65	0.83	0.99	1.28	1.67	1.87	2.04	2.55
Pressure drop			kPa	13	22	18	25	23	28	33	42	45
Coil connection & drain pipe			Inch	3/4"	3/4"	3/4"	3/4"	3/4"	3/4"	3/4"	3/4"	3/4"
Dimension	Unit	L×W×H	mm	590×590×242	590×590×242	590×590×242	750×750×242	750×750×242	840×840×242	840×840×292	840×840×292	946×946×292
Dimension	Panel	L×W×H	mm	650×650×40	650×650×40	650×650×40	850×850×40	850×850×40	950×950×40	950×950×40	950×950×40	1050×1050×40
Weight	Unit (drained by pump)		kg	22	23	26	27	29	30	31	33	36
Weight	Panel		kg	5	5	7	7	8	8	9	9	11

Four-way Cassette Type Fan Coil Unit (two-pipe system)

Model			W05F-	51K4M4	68K4M4	85K4M4	102K4M4	136K4M4	170K4M4	204K4M4	238K4M4	272K4M4
Power supply				AC 208~230V/1Ph/50Hz (60Hz as option)
Air flow		High speed	m³/h	520	650	840	1000	1320	1660	1950	2090	2720
		Middle speed	m³/h	420	510	670	800	1050	1330	1560	1670	2040
		Low speed	m³/h	310	390	500	600	790	1000	1170	1250	1360
Static pressure			Pa	0	0	0	0	0	0	0	0	0
Cooling capacity	TH	High speed	W	2950	3700	4800	5700	7350	9600	10800	11750	13200
	SH	High speed	W	2150	2800	3450	4150	5400	7000	8100	8900	10000
	TH	Middle speed	W	2500	3200	4050	4850	6250	8200	9150	10000	11000
	SH	Middle speed	W	1750	2300	2800	3450	4450	5850	6700	7500	7630
	TH	Low speed	W	2000	2550	3350	3900	5100	6600	7450	8150	9100
	SH	Low speed	W	1350	1800	2250	2750	3550	4600	5350	5900	6600
Heating capacity	High speed		W	3000	3750	4850	5750	7400	9700	10900	11850	13500
	Middle speed		W	2550	3200	4100	4850	6250	8200	9250	10050	11200
	Low speed		W	2000	2500	3250	3850	4950	6500	7300	7950	8750
Noise level	High speed		dB(A)	40	42	42	44	46	47	50	51	53
Power input	High speed		W	50	58	70	95	130	160	190	210	230
Coil				High efficient copper pipe to wear Hydrophilic aluminum coil
Fan				Cross-flow
Motor				AC motor; The motor insulation system shall be Class E
Water flow rate		Chilled pipe	m³/h	0.5	0.64	0.81	0.97	1.25	1.64	1.83	2	2.2
Water flow rate		Hot water pipe	m³/h	0.33	0.42	0.54	0.64	0.82	1.08	1.21	1.32	1.5
Pressure drop		Chilled pipe	kPa	13	22	18	25	23	28	33	42	42
Pressure drop		Hot water pipe	kPa	8	13	11	15	15	19	23	26	30
Coil connection & drain pipe			Inch	3/4"	3/4"	3/4"	3/4"	3/4"	3/4"	3/4"	3/4"	3/4"
Dimension	Unit	L×W×H	mm	590×590×242	590×590×242	590×590×242	750×750×242	750×750×242	840×840×242	840×840×292	840×840×292	946×946×292
Dimension	Panel	L×W×H	mm	650×650×40	650×650×40	650×650×40	850×850×40	850×850×40	950×950×40	950×950×40	950×950×40	1050×1050×40
Weight	Unit (drained by pump)		kg	24	25	28	29	31	32	33	35	38
Weight	Panel		kg	5	5	7	7	8	8	9	9	11

Notes:

1. Cooling condition: Indoor DB=27℃(80.6℉), WB=19℃(66.2℉), water supply 7℃(44.6℉), entering/leaving water temperature difference 5℃(41℉).

2. Heating condition: Indoor DB=21℃(69.8℉), water supply temp 60℃(140℉).

3. All models, sizes, dimensions, and specifications are subject to change without prior notice, please refer to nameplates for the most accurate specifications

Packaging & Transportation

-

● Four steps of pakacges, plastic film, foam, carton and plywood for stable transporation.

● 100% test before deliverying products.

● Item shipped in 25 working days against payment depends on the quantity.

● Products catalogue, installation & operation manual will be sent together.

● Tracking number will be sent to customer as soon as we ship the products.

● Ocean shipping, railway shipment and air transportation are acceptable according to customer demand.

Withair® provides standard package(free of charge): unit is packaged by carton, which is suitable for container shipment & a few transshipment cargo;
