Air Cooled Scroll Heat Pump with Heat Recovery

  • 68.0 ÷ 200.0 kW / 19.3 ÷ 56.9 Tons

  • 72.5 ÷ 215.0 kW / 20.6 ÷ 61.1 Tons

  • 3.1 EER / 3.4 COP

  • Compressor - 5 year limited ; Other parts - 1 year limited

  • R410A, R407C,R22

  • Scroll type; HITACHI, Daikin, Panasonic, MITSUBISHI,Copeland

  • High efficiency shell-and-tube heat exchanger

  • High efficiency finned copper pipe heat exchanger

  • 380V/3Ph/50Hz (400V/415V/3Ph/50Hz, 230V/380V/460V/3Ph/60Hz as option)


Product Overview

—— Product Description ——

Withair® Air-Cooled Heat Pump Unit is a kind of central air conditioner which adopts air as the cooling & heating source and water as cooling & heating medium. Withair® offer quiet, reliable, energy efficient equipment. These units incorporate high quality compressors, state-of-the-art coil design, and innovative packaging. As a sort of integrated equipment, it needs no cooling tower,cooling water pump,boiler and correspoding auxiliary parts, which makes the system more simple,saves installation space, convenient maintenance and energy saving, thus it is very suitable for areas that are short of water.several modules can be formed in to a air-cooled heat pump module unit by connecting each module's inlet & outlet pipeline in parallel. the whole unit consists of 1~16 modules and the max.capacity is 3200kW.


Withair® Air-Cooled Heat Pump Unit can be widely applied to civilian projects and industrial projects,such as hotel, villa,restaurant, hostital, factory,etc,. it is a wise choice for areas where water is insufficient or therre are strict limits on  noise level and surroudings.

—— The key advantages Include ——

● ECO friendly refrigerant R410A,R407C.

● Built-in hydraulic module for option.

● Intelligent defrost totally.

● Heat recovery function provides free hot water using heat removed from room during cooling.

● Multi self-protection  functions, such as: high & low pressure, high temperature, water flow and antifreeze protection.

● Modular networking technology, the operation of individual modules can be coordinated according demand.

● Advanced & world-famous hermetic scroll compressor high-efficiency, low-noise and low-vibration operation.

● Standalone subsystems enable maintenance of individual subsystems without affecting the continued operation of the rest.

● Hydrophilic and corrosion-resistant material ensures adaptability to poor weather.
● Uses advanced hermetic scroll compressor high-efficiency, low-noise, and low-vibration operation.
● Remote monitoring and control features enable the unit’s operational schedule to be set via internet or phone.
● Using modular networking technology, the operation of individual modules can be coordinated according demand.
● Standalone subsystems enable maintenance of individual subsystems without affecting the continued operation of the rest.
● Unique heat exchanger protection technology, increases heat exchange efficiency to 30% above that of conventional heat exchangers.

—— You May Like ——

 Withair® Air Cooled Heat Pump Chiller (2)  Concealed Type Fan Coil Unit Withair® Hydraulic module     Withair® Hydraulic balance distributor       Withair® Insulation pipe         Termostat controls (2)

Air Cooled Heat Pump        +        Fan Coil Unit        +        Hydraulic Module   +   Hydraulic balance distributor   +   Insulation pipe     +     Thermostat

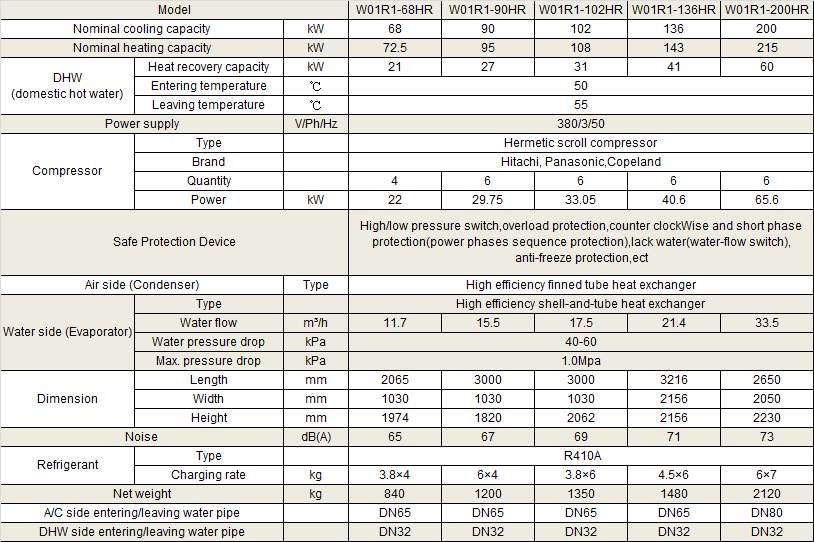

Physical Data


Physical Data of Withair® Air Cooled Scroll Compressor Heat Pumps with domestic hot water.png


1.    Standard cooling work condition: entering chilled water temperature 12℃, leaving temperature 7℃;dry bulb temperature 35℃,wet bulb temperature 24℃;
2.    Standard heating work condition: entering hot water temperature 40℃,leaving temperature 45℃; dry bulb temperature 7℃,wet bulb temperature 6℃.
3.    Units can realize 1~16 unit's modular connection and control energy-regulation automatically.
4.    All models, sizes, dimensions, and specifications are subject to change without prior notice, please refer to nameplates for the most accurate specifications

Packaging & Transportation


● 100% test before deliverying products.

● Products catalogue, installation & operation manual will be sent together.

● Tracking number will be sent to customer as soon as we ship the products.

● Item shipped in 25 working days against payment depends on the quantity.

● Four steps of pakacges, plastic film, foam, carton and plywood for stable transporation.

● Ocean shipping, railway shipment and air transportation are acceptable according to customer demand.

WithAir® provides two styles package for different transporation modes:

(1). Standard package(free of charge): unit is wrapped with plastic film, which is suitable for container shipment & a few transshipment cargo;

  withair heat pump package_3withair heat pump shipment
(2). Special package(extra charge): unit is wrapped with plastic film and wooded box, which is suitable for bulk cargo transporation;
withair heat pump package_1
