Absorption Chiller

  • W02C3 Series

  • Withair®

  • 8418692090


Product Overview

WithAir® Hot Water Absorption Chiller,adopts hot water to make cool (including to use hot water from solar).

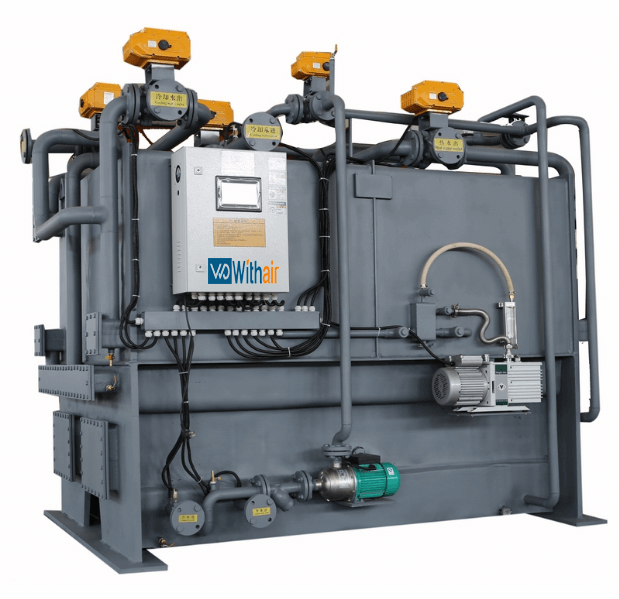

 WithAir® Hot Water Absorption Chiller (system)

—— The key advantages Include ——


● Cooling capacity: from 1.5TR and above.

● Fuel: Natural gas or diesel oil or bios.
● Refrigeration: Water.
● Absorber: Lithium bromide solution.
● Inhibitor: Lithium chromate or Lithium molybdate.
● Unit can use hot water from solar to make cool.
● It could be double effect when its inlet temp is up to 160°C.

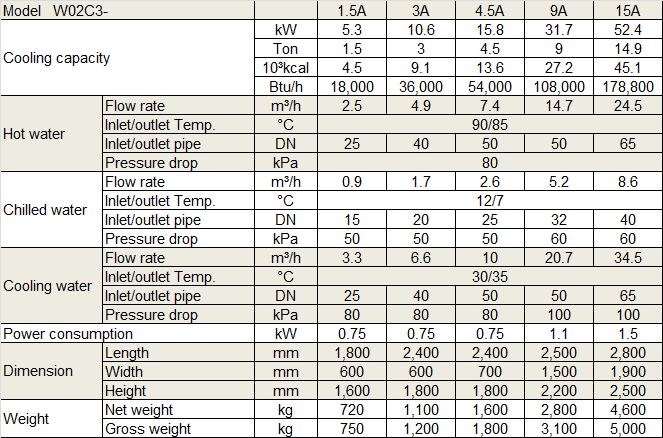

Physical Data

Physical Data of Withair® Absorption Chiller.png

The data in the above table test as following:

1. The lowset working temperature of hot water:60°C;
2. Optional parts:cooling water tower, chilled water pump, cooling water pump, hot water adjusting valve, filter of chilled & cooling water, vacuum pump;
3. Fouling factor for chilled water :0.085m²·h·°C/kW(0.0001m²·h·°C/kcal);
4. The standard gague pressure limit for chilled/cooling water chamber ≤0.8Mpa;
5. The data in this table are for reference only, please following the nameplate parameter of this product.
