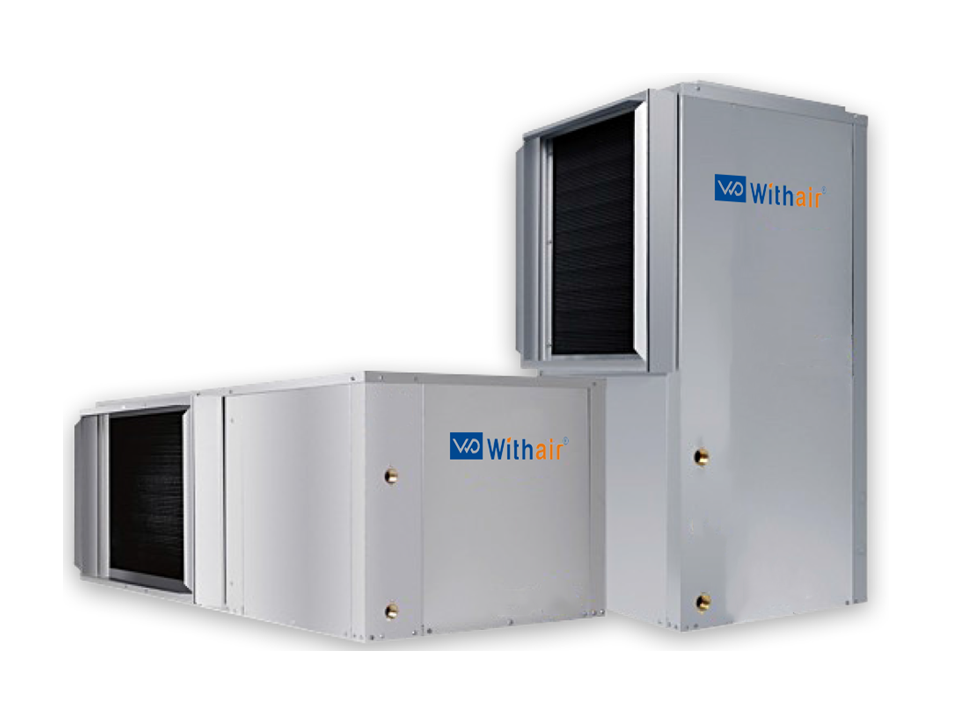

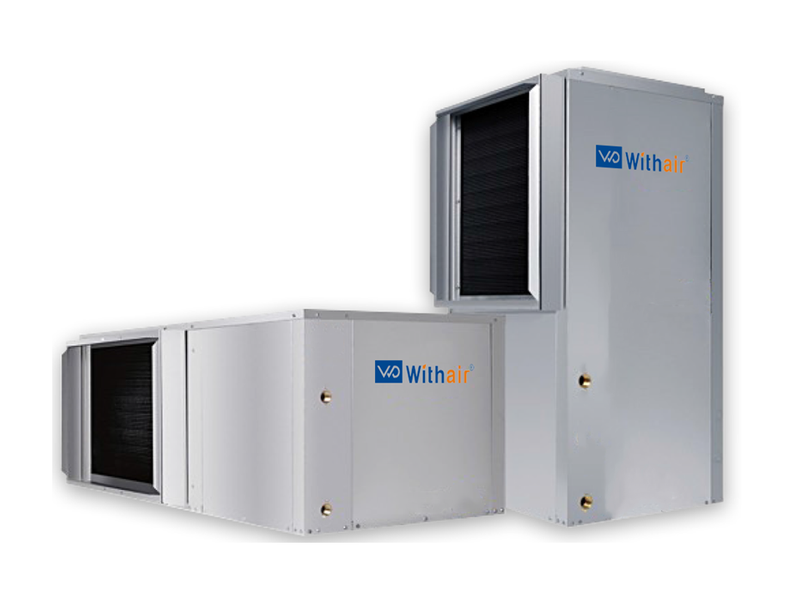

Water Source Heat Pumps (Water to Air Heat Pumps)

Model:
W01R2 Series
Brand:
Withair® / OEM brand as option
Code:
8418612090
Cooling capacity:
2.6 ÷ 140.0 kW / 0.74 ÷ 39.8 Tons
Heating capacity:
3.0 ÷ 162.9 kW / 0.85 ÷ 46.3 Tons
High efficiency:
4.5 EER / 5.0 COP
Warranty:
Compressor - 5 year limited ; Other parts - 1 year limited
Refrigerant:
R410A, R407C
Compressor:
Roraty & Scroll type; HITACHI, Panasonic, MITSUBISHI,Copeland
Evaporator:
Coaxial tube-in-tube, plate type, shell-and-tube heat exchanger
Condenser:
High efficiency finned copper pipe heat exchanger
Applications:
Office Use, Residential Use, Commercial Use
Power supply:
230V/1Ph/50Hz and 380V/3Ph/50Hz (400V/415V/3Ph/50Hz, 230V/380V/460V/3Ph/60Hz as option)
E - Catalogue:
Withair® Water-Source-Heat Pumps-Product Catalogue.pdf

Availability:



Get Best Quote

Product Overview

—— Product Description ——

Withair® water-source heat pump (WSHP) delivers high-performance heating and cooling with exceptional efficiency: up to 5.0 EER on select systems. Advanced technology makes a Withair® water-source heat pump easy to operate and maintain, resulting in optimal comfort and long-lasting durability. The broad range of products suit a variety of applications: schools, office buildings, health care and rehabilitation facilities, condominiums and retirement facilities and other commercial buildings are just a few of the building types utilizing the energy conscious water-source design of the 0.75 through 38+ tons horizontal and vertical water-source heat pump.

Withair® Water source heat pump systems are among the most efficient,economical and environmentally friendly methods to heat and cool buildings. Withair® has taken these benefits to a new level with horizontal and vertical water source heat pumps. We designed products to give you maximum flexibility to design, install, operate and maintain the ideal water source heat pump system for your building project. And we incorporated non-ozone depleting R-410A refrigerant, which–along with high Energy Efficiency Ratios (EER’s)–helps preserve our environment and precious energy resources.Withair® Water source heat pumps offer you the ability to achieve industry-leading energy efficiency in boiler/tower and geothermal applications.You can benefit from lower energy bills and higher energy rebates.

Withair® is among the original suppliers of water source heat pump systems and has remained at the forefront in expertise and the breadth of our product offering. Known for their compact size, quiet operation and durable with low maintenance requirements and quality construction. WSHPs are available in wide range of capacities and can be combined with electrical heating elements.The units are suitable for cooling tower installations, ground water sources or open water circuits.

Withair® ceiling-horizontal water source heat pumps are typically installed above hallways and other corridors, away from the occupied space for reduced sound and to allow easier service access. each single circuit unit provides heating and cooling to a specific space within the building. Withair® units allow easy access to critical components for maintenance and service access in a ceiling-hung application.

Withair® floor-vertical water source heat pumps are typically installed in closets or small mechanical rooms near the occupied space. each single circuit unit provides cooling and heating for a specific zone within the building. we offers some of the quietest water source heat pump units in the industry, allowing units to be located near the occupied space with minimal acoustic impact.

Withair® continues to enhance the application of Geothermal and other WSHP systems to help your buildings work better. Superior Withair® design makes our units among the quietest and most efficient on the market. A Withair® water source heat pump is easy to access and service components; meets high indoor air quality standards; offers quiet operation; and higher operating efficiencies to reduce total cost of ownership. Efficient systems for lighting, plumbing, and comfort can significantly reduce the operating expense of doing business. The extra high efficiency units provide energy savings that not only contribute to lowering the life cycle cost, but also reduce the waste impact on the environment.

The reliability, efficiency and comfort provided by Withair® water source heat pumps is evidenced by the owners, designers,and contractors that have placed their trust in our units in thousands of installations worldwide.

—— The Key Advantages Include ——

● Non-CFC, ECO friendly refrigerant R410a, R407c.

● Smart microchip control and large LCD user interface, capable of one-key startup.
● Standard model is air return working condition, fresh air working condition is optional.
● Large diameter coaxial tube-in-tube, plate type, shell-and-tube heat exchanger for high performance, reliability, and strong anti-freezing.

● Large panels for accessibility to compressor and fan sections.
● Standard or geothermal application flexibility.
● Easy, low cost design and installation.
● High EER promotes low operating costs and may qualify for rebates.
● Superior indoor air quality and quiet operation.
● Flexible control options include standalone or network operation.
● Performance rated with ISO Standard 13256-1.
● Unit choose efficient rotary or scroll compressor, the use of high efficient heat exchanger technology processing, condensation temperature greatly reduced, the COP is more 4.5 and higher 70% than air cooled heat pump.

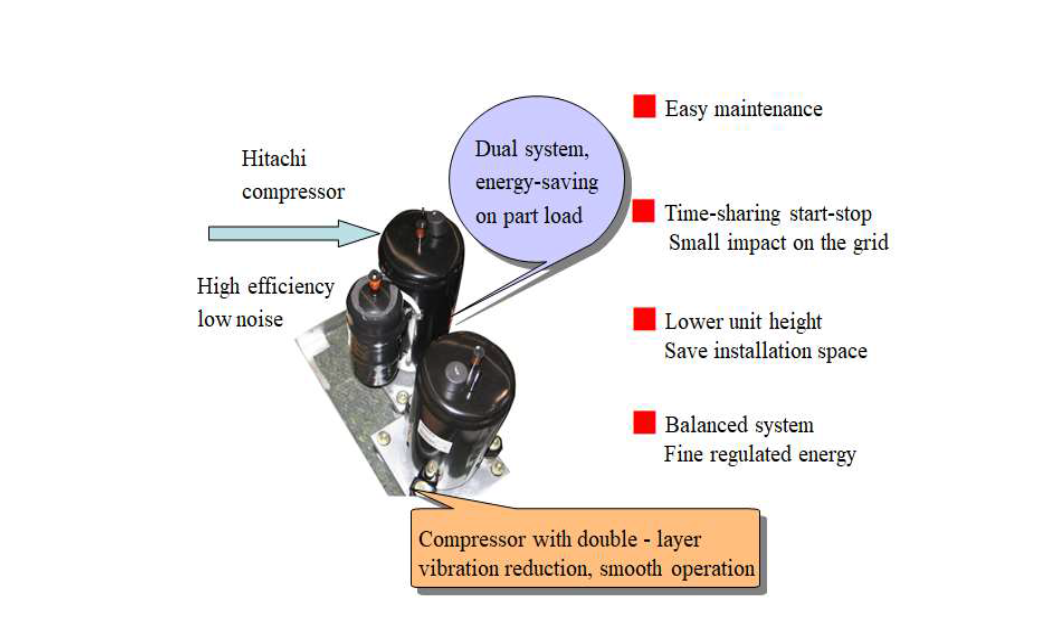

● Unique compressor anti-vibration technology and sound attenuation material ensure ultra-quiet performance.
● Multi-system design and wear-and-tear management technology reduces electric impulse and extend service life.
● Modular network function: unit control system is equipped with the network communication, the user can control operating units quantity according to the actual use load,make user side water system utilities, to realize the automatic device management automation and energy management.
● Automatic intelligent reset. Unit shall automatically restart 5 minutes after shutdown if the fault has cleared. Should a fault occur 3 times sequentially, then lockout will occur.
● Humanized design, widened application scope: the unit’s temperature settings for room, hot water, water intake/outlet, freeze protection, and compressor exhaust can be adjusted on-site according to environmental conditions.

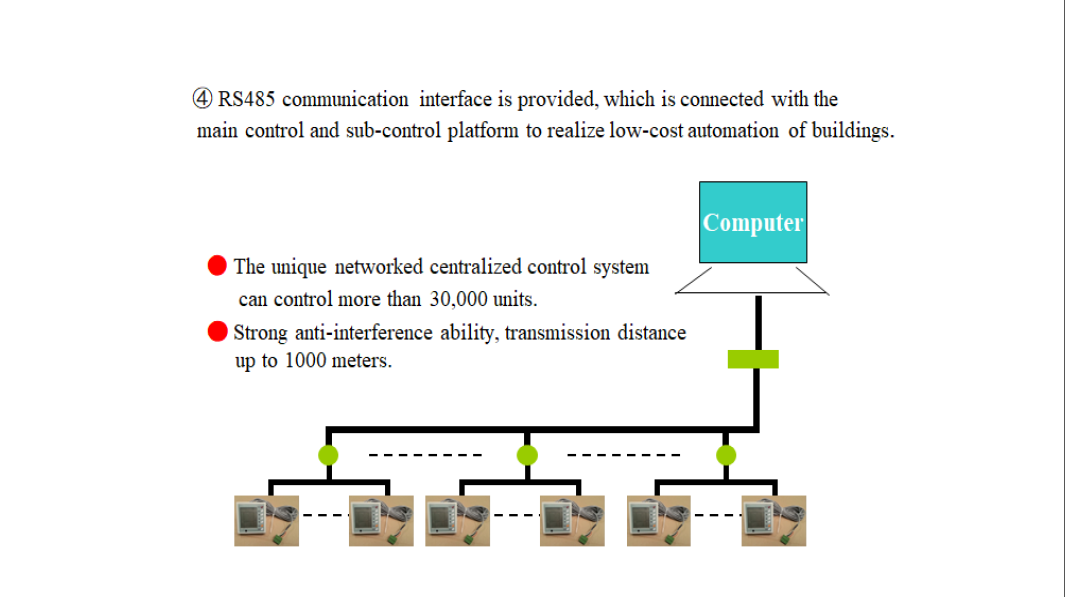

● Communication adapter connection the unit to BMS(Building Management System) is an optional accessory, please get in touch with us or our distributor if required.
● Unit with multi-protection to guarantee the unit running stability and security, such as: high/low voltage, low oil level protection, exhaust temperature, antifreeze,power lack/reverse phase, water system cut off. operating condition with small change range stable operation, safe, reliable and long service life.

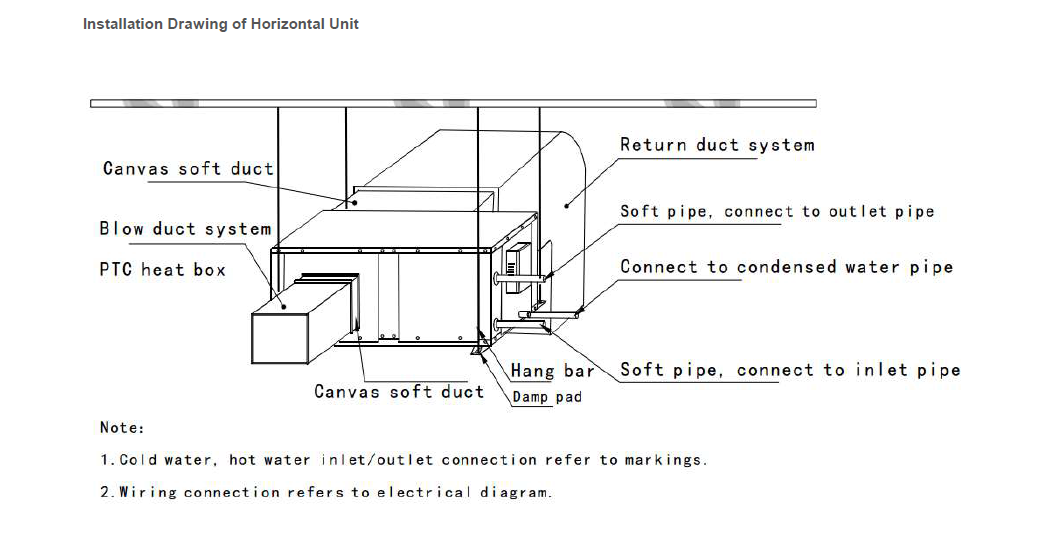

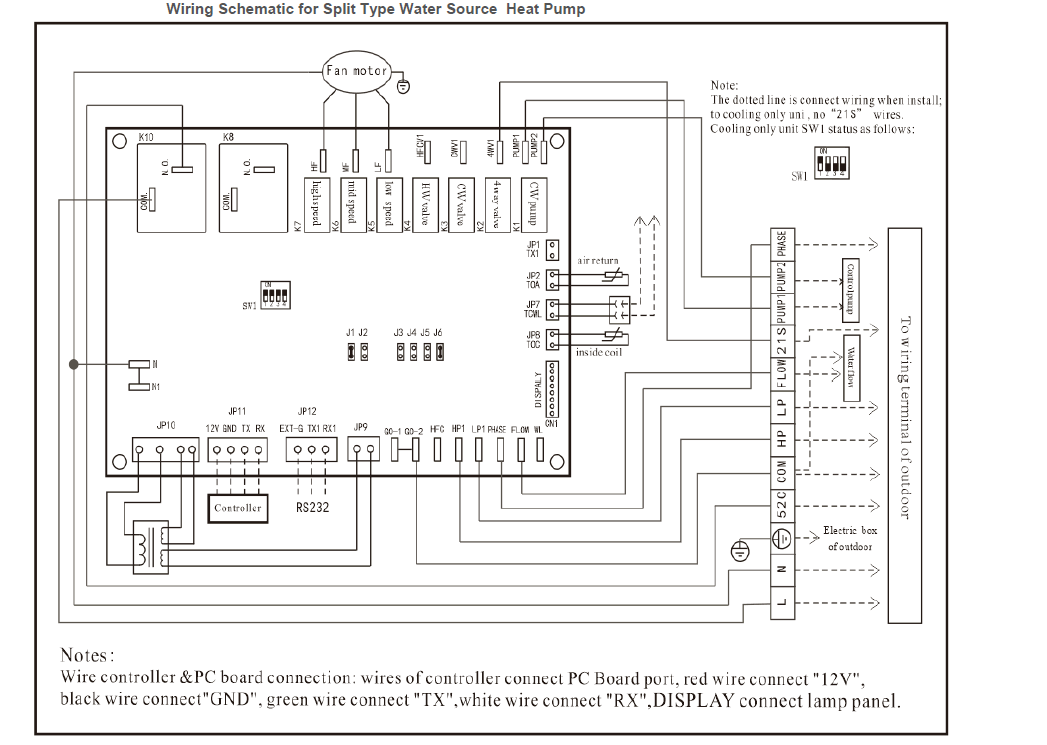

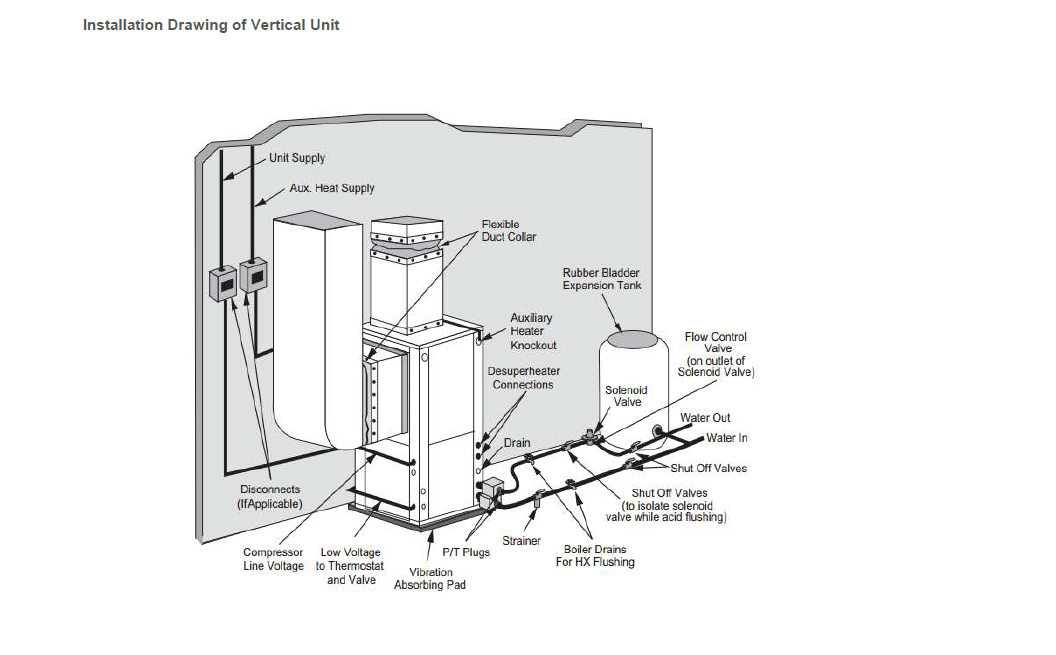

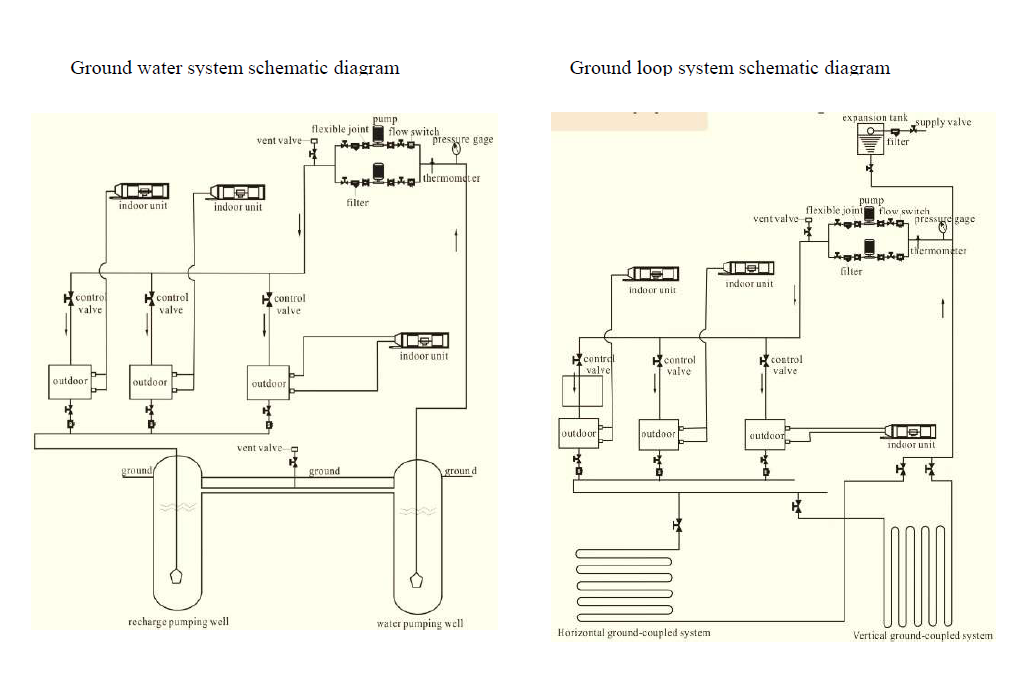

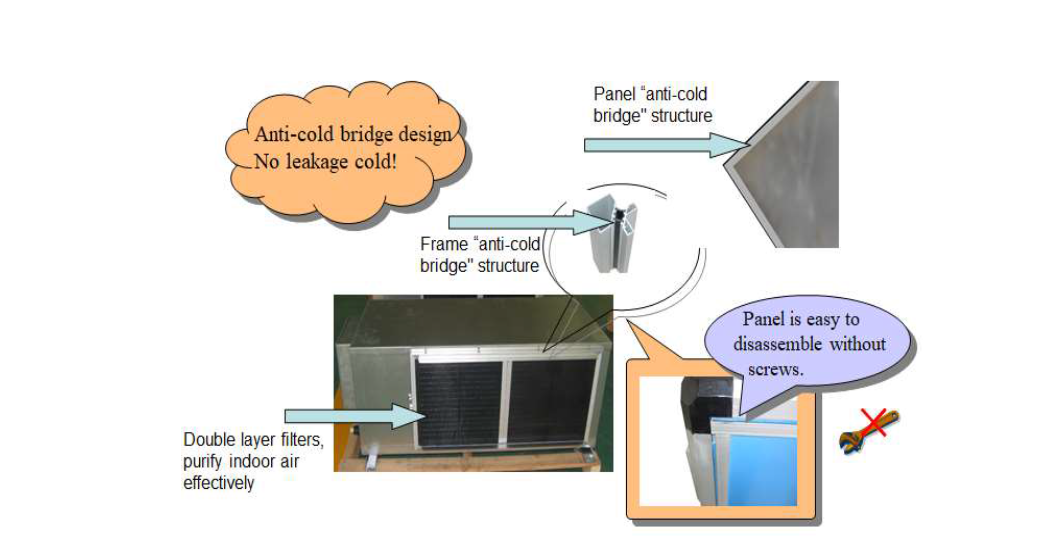

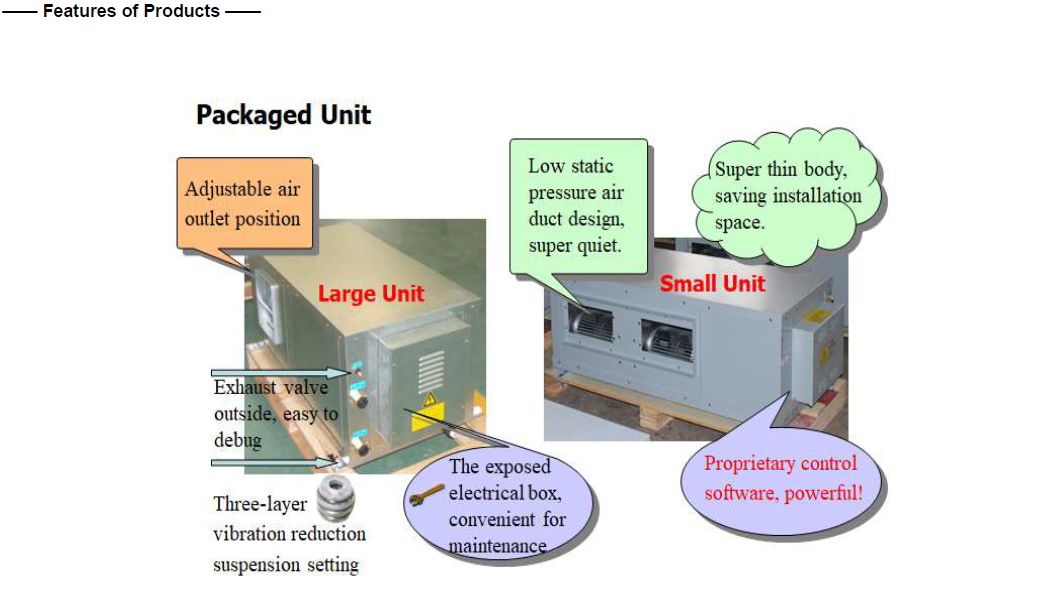

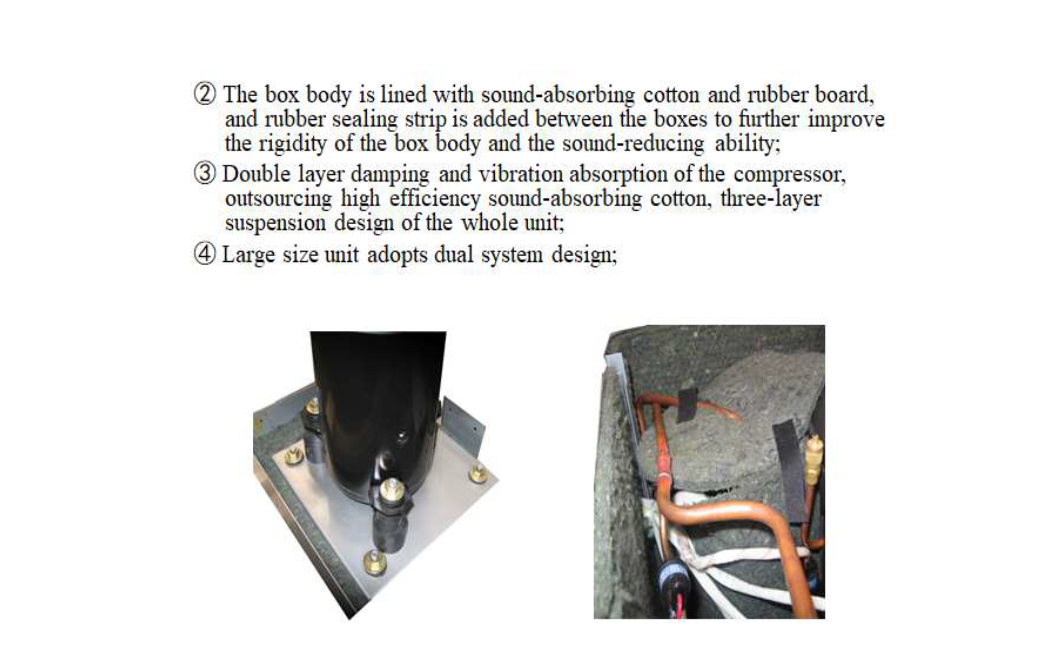

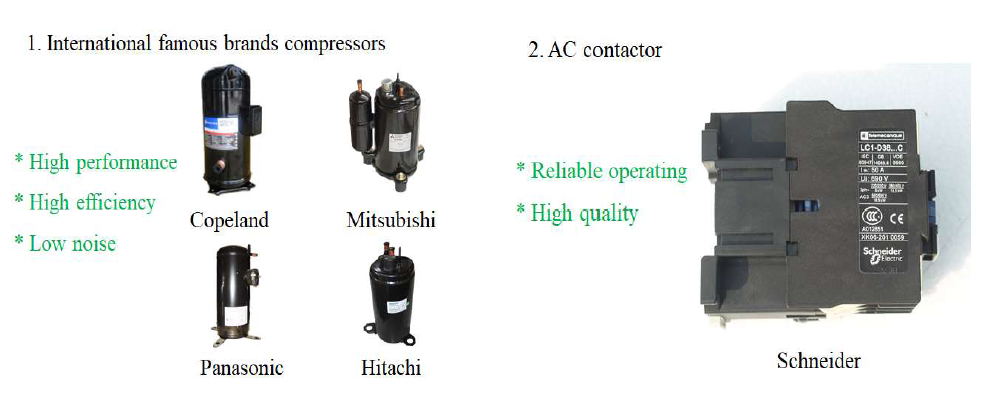

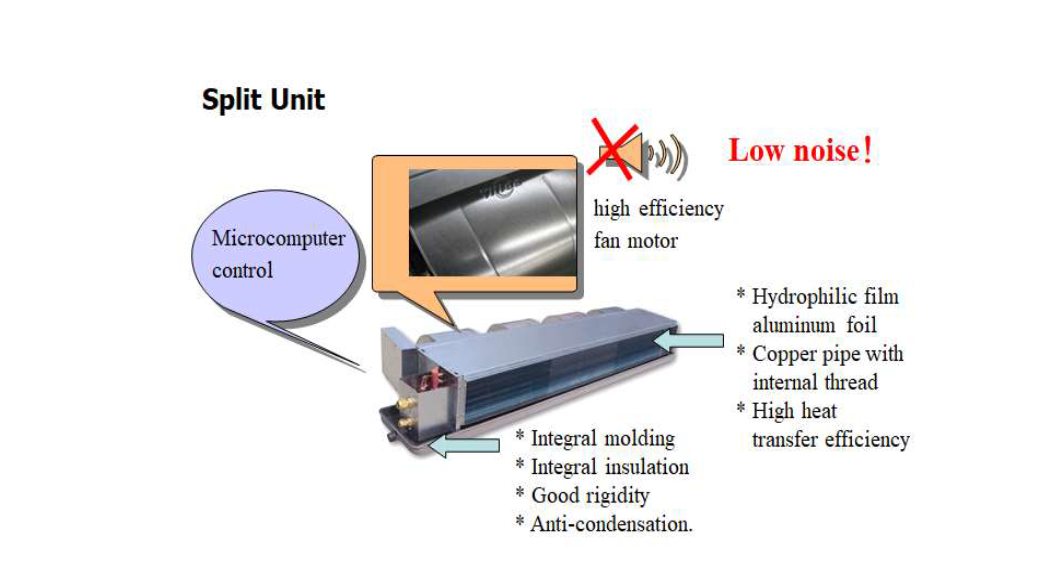

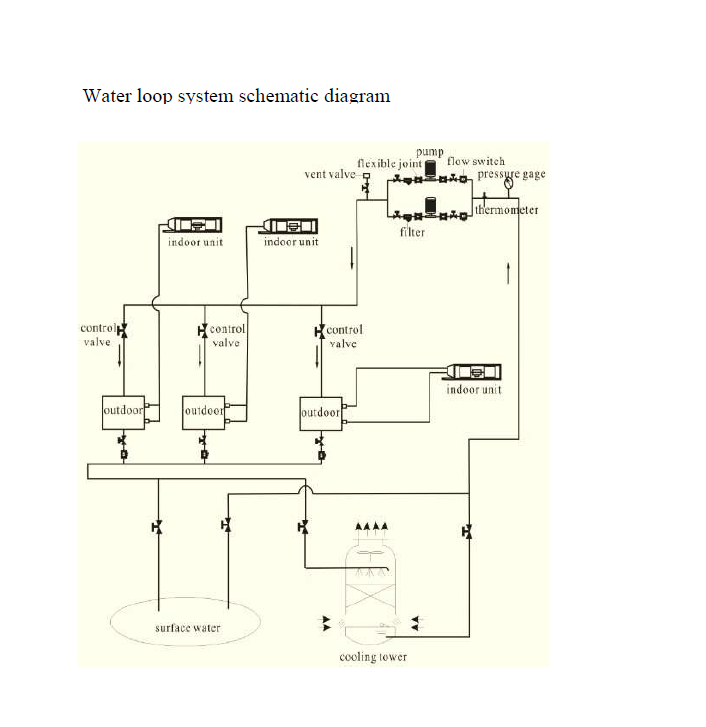

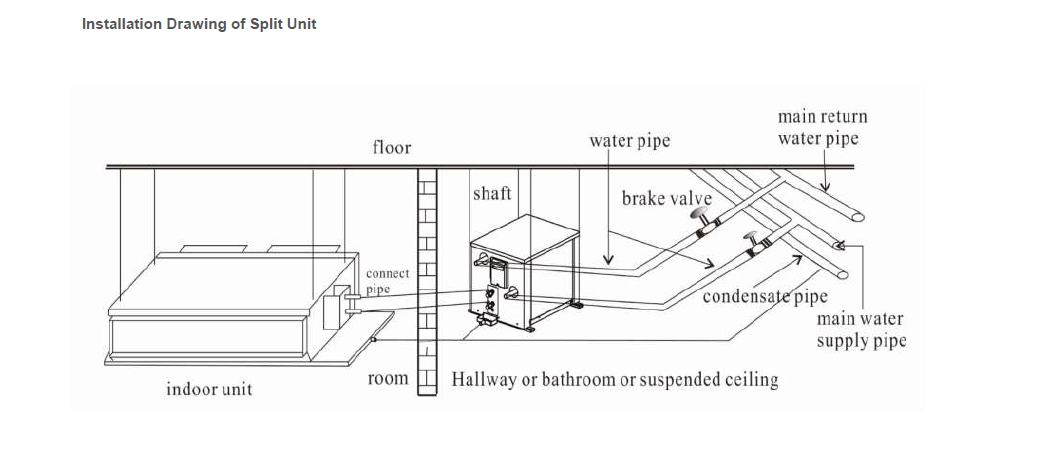

Withair Main Components

Withair Main Components_1

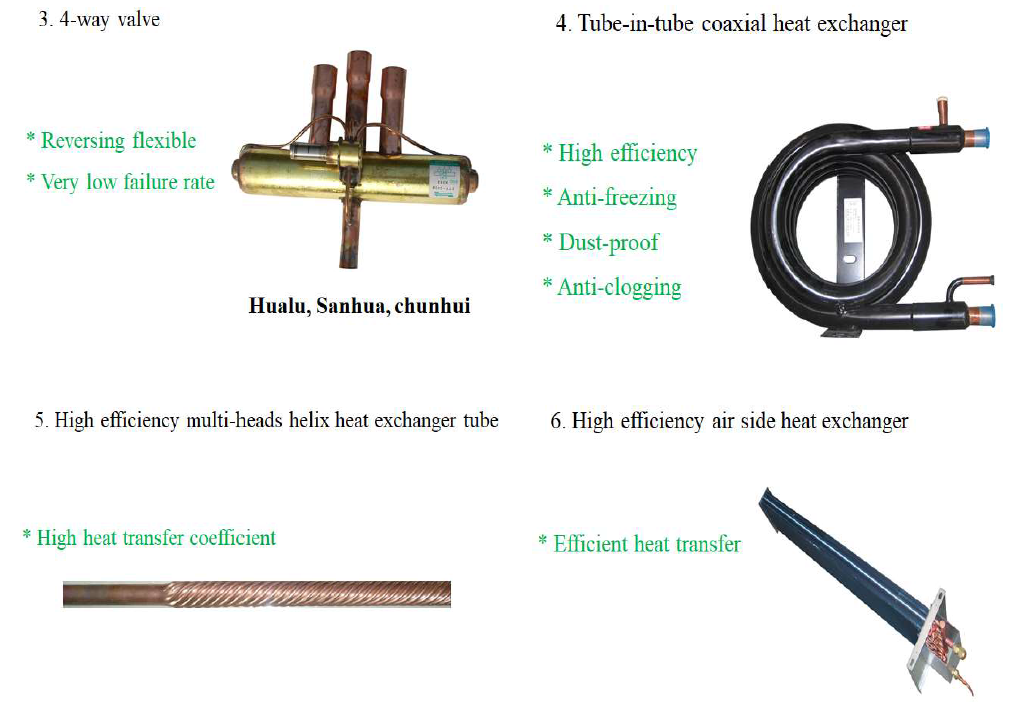

Withair Main Components_2

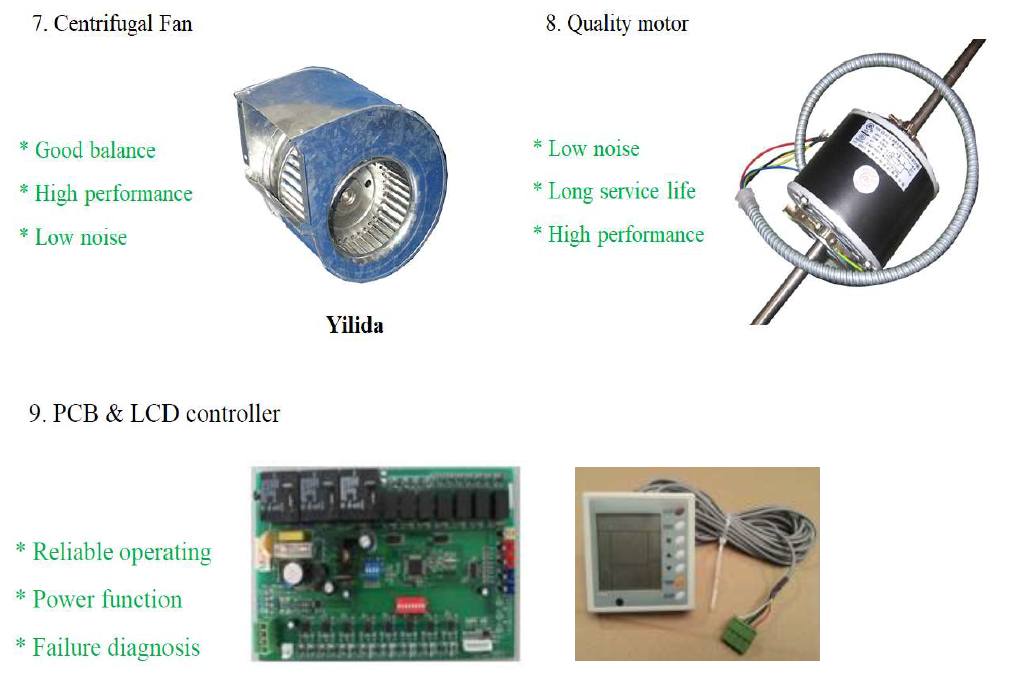

Withair Main Components_3

Withair Main Components_4

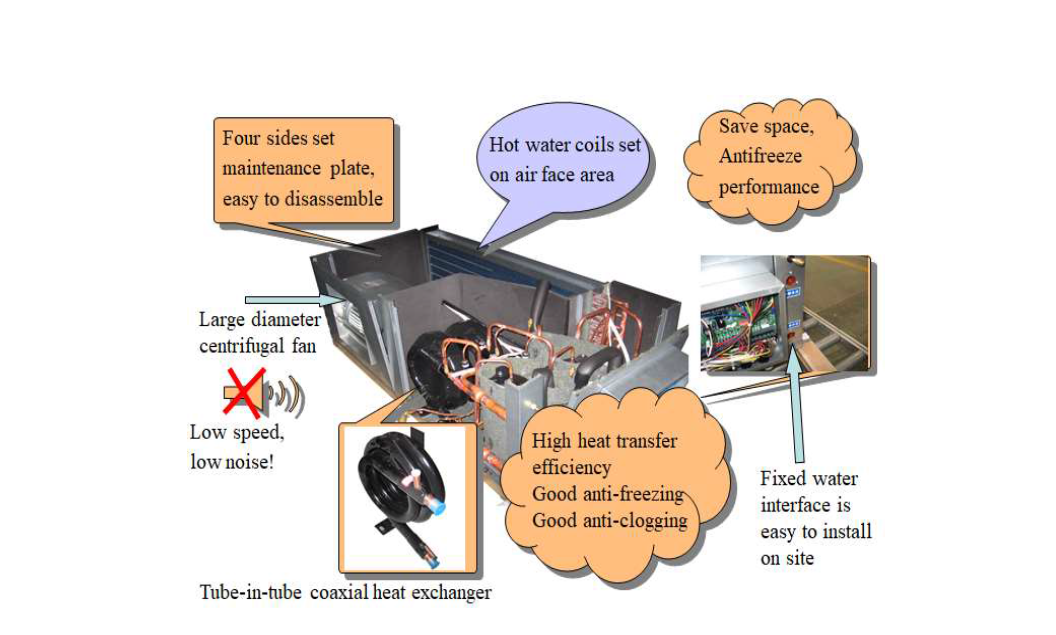

Withair Main Components_5

Withair Main Components_6

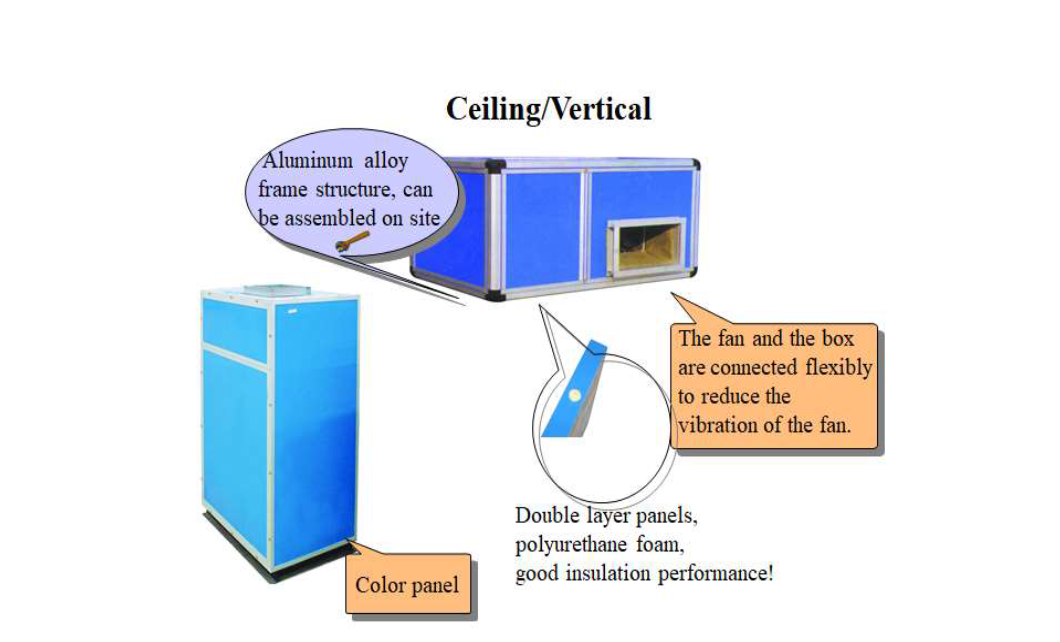

Withair Main Components_7

Withair Main Components_8

Withair Main Components_9

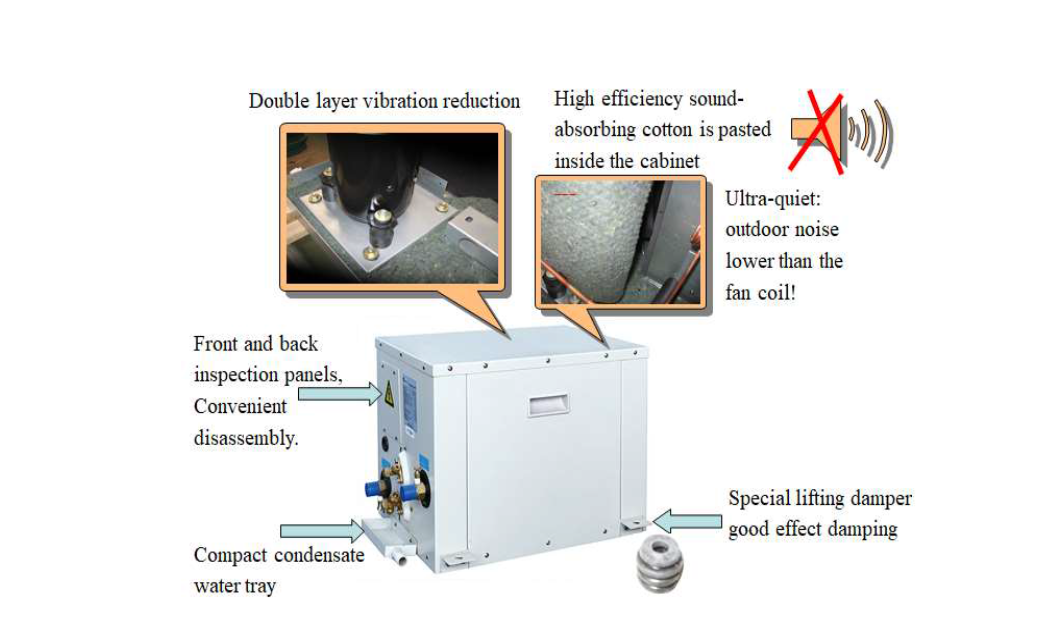

Withair Main Components_10

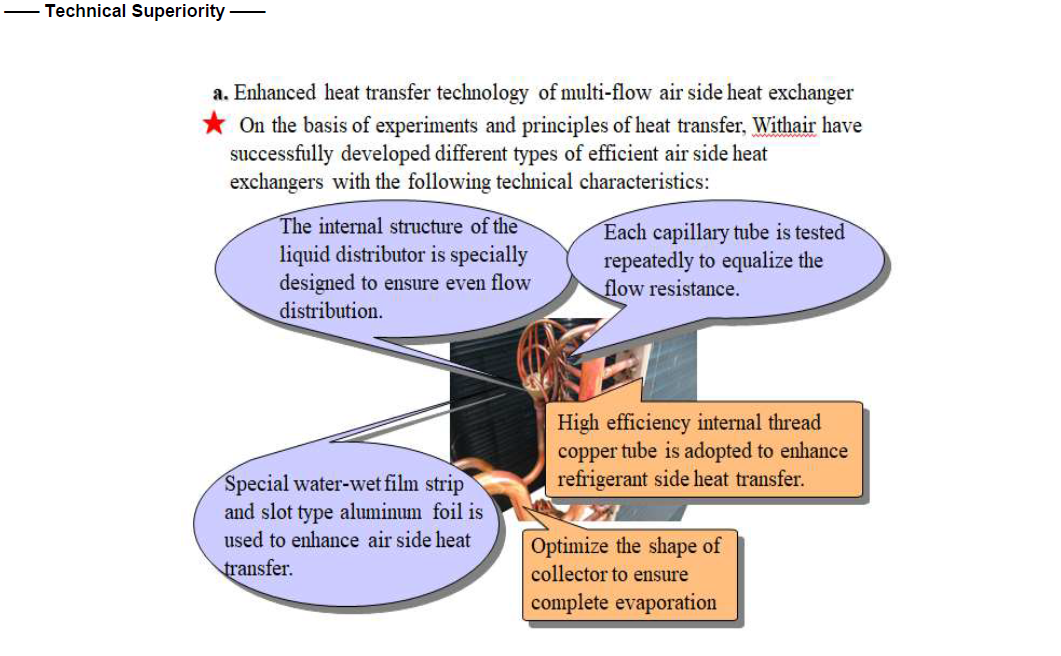

Withair Main Components_11

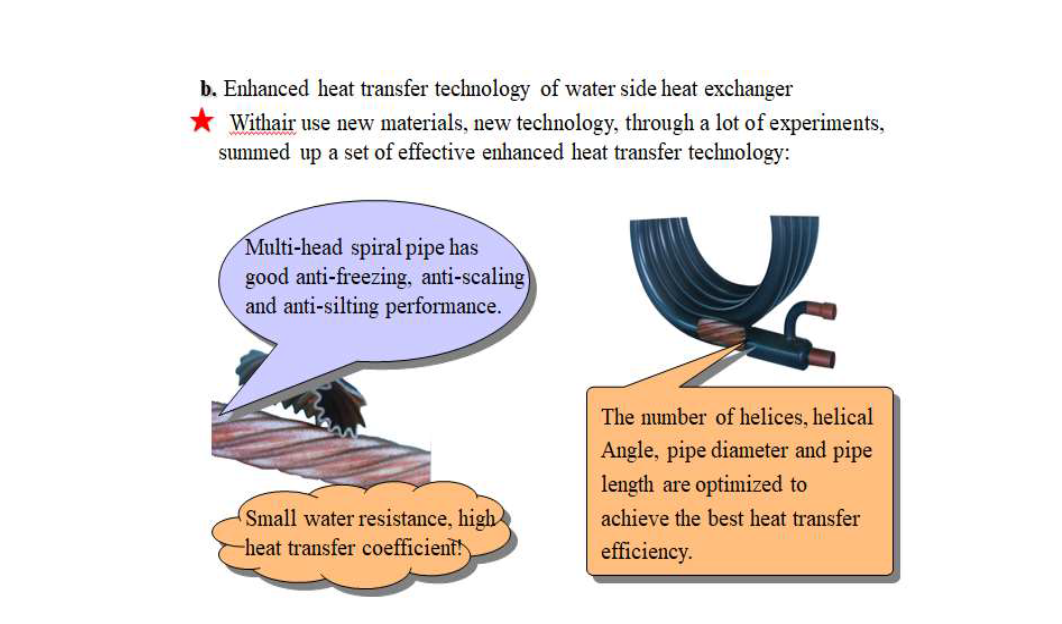

Withair Main Components_12

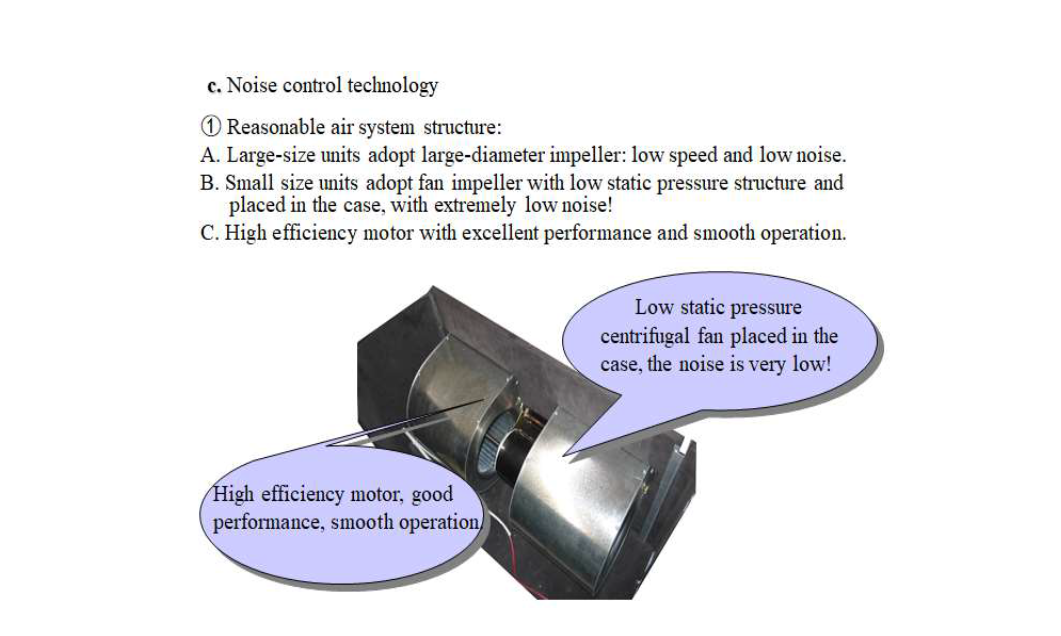

Withair Main Components_13

Withair Main Components_14

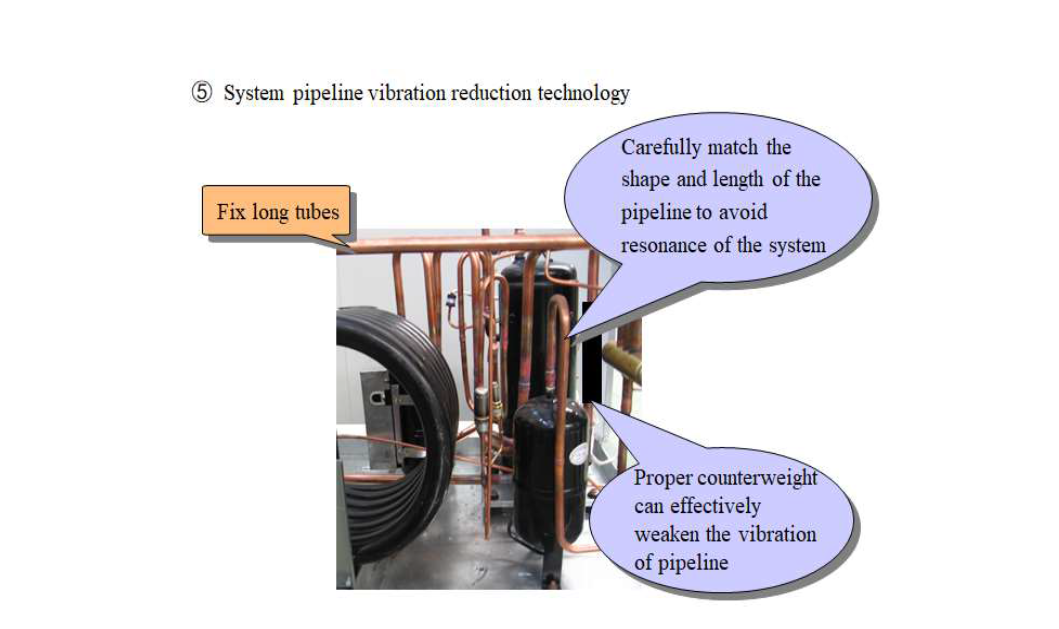

Withair Main Components_15

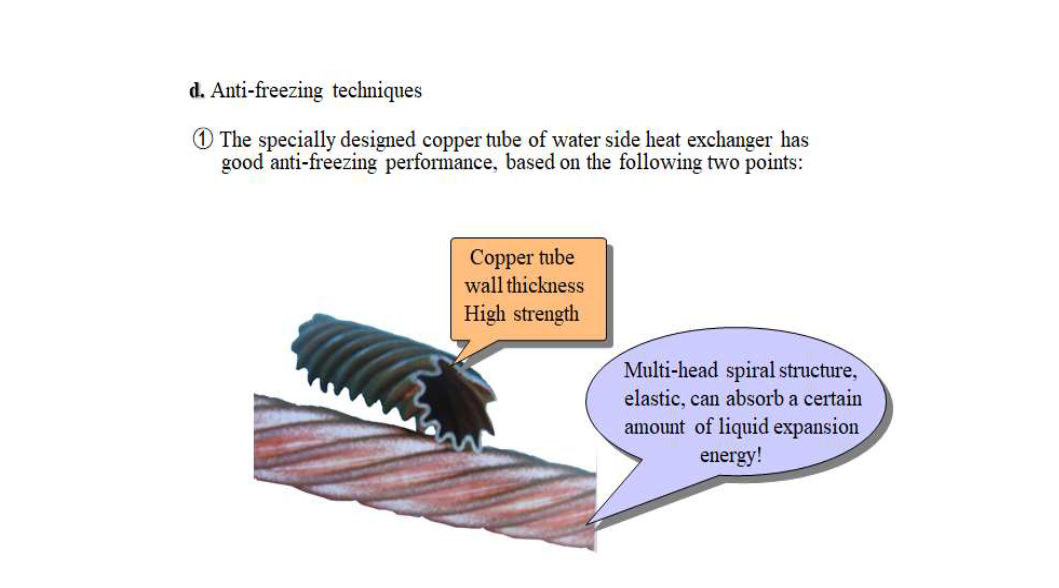

Withair Main Components_16

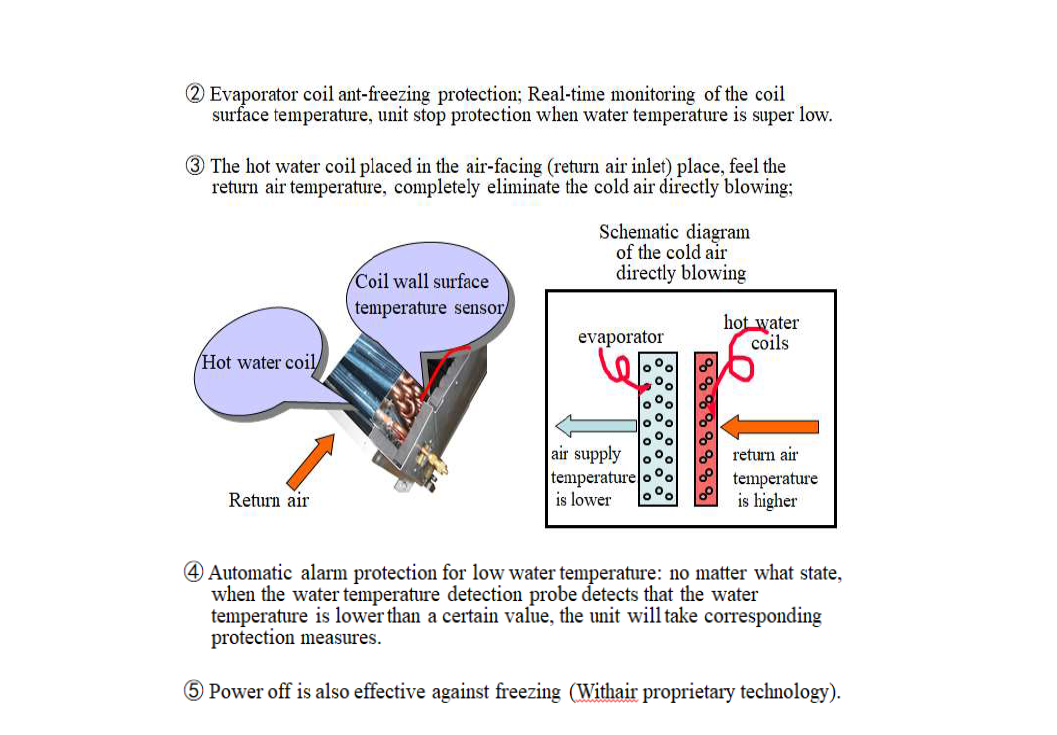

Withair Main Components_17

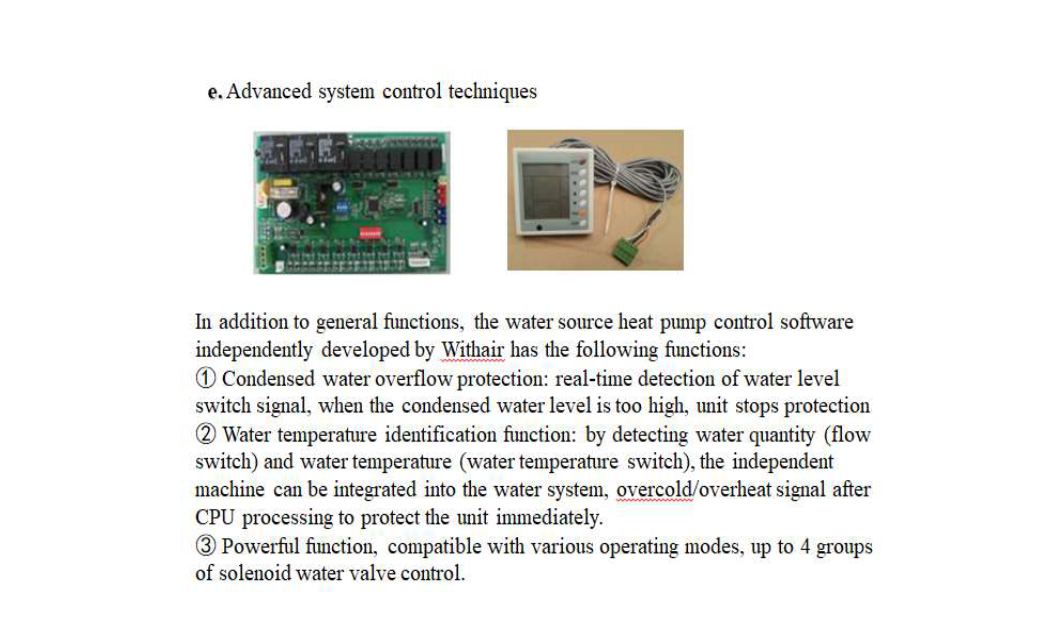

Withair Main Components_18

Withair Main Components_19

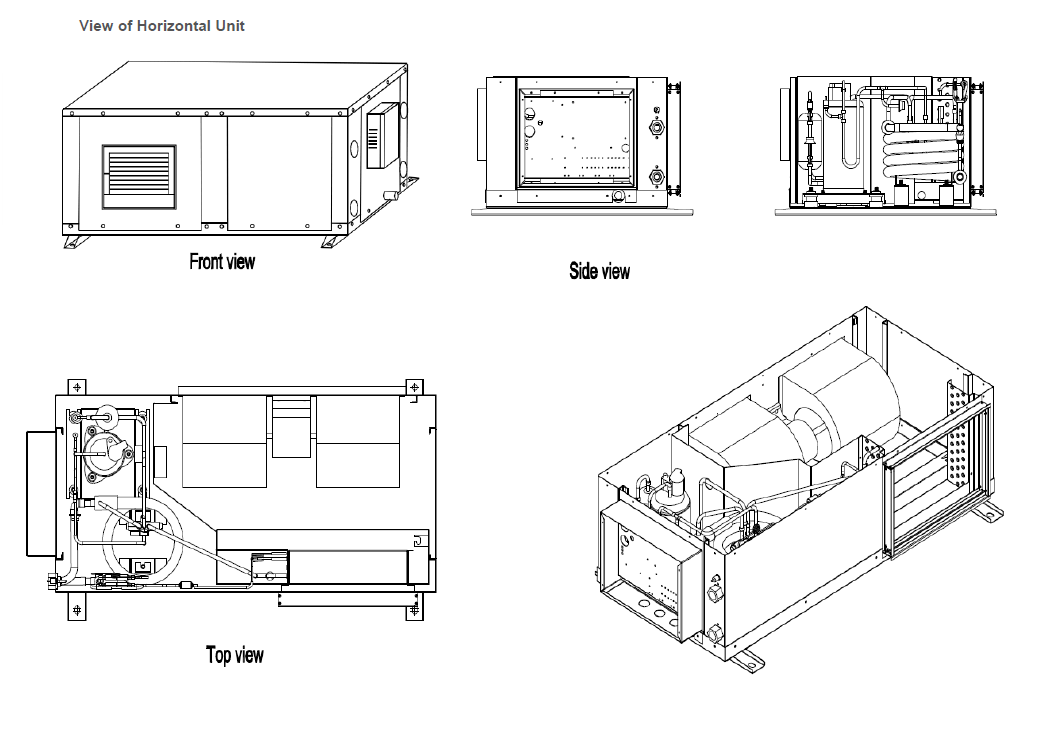

Withair Main Components_20

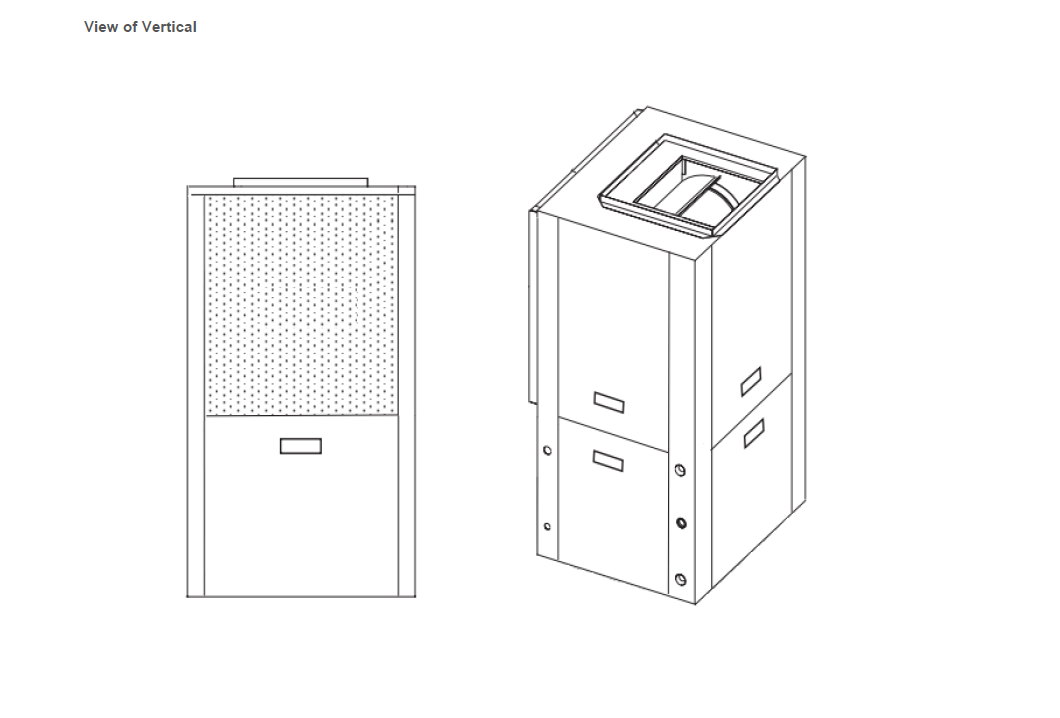

Withair Main Components_21

Withair Main Components_22

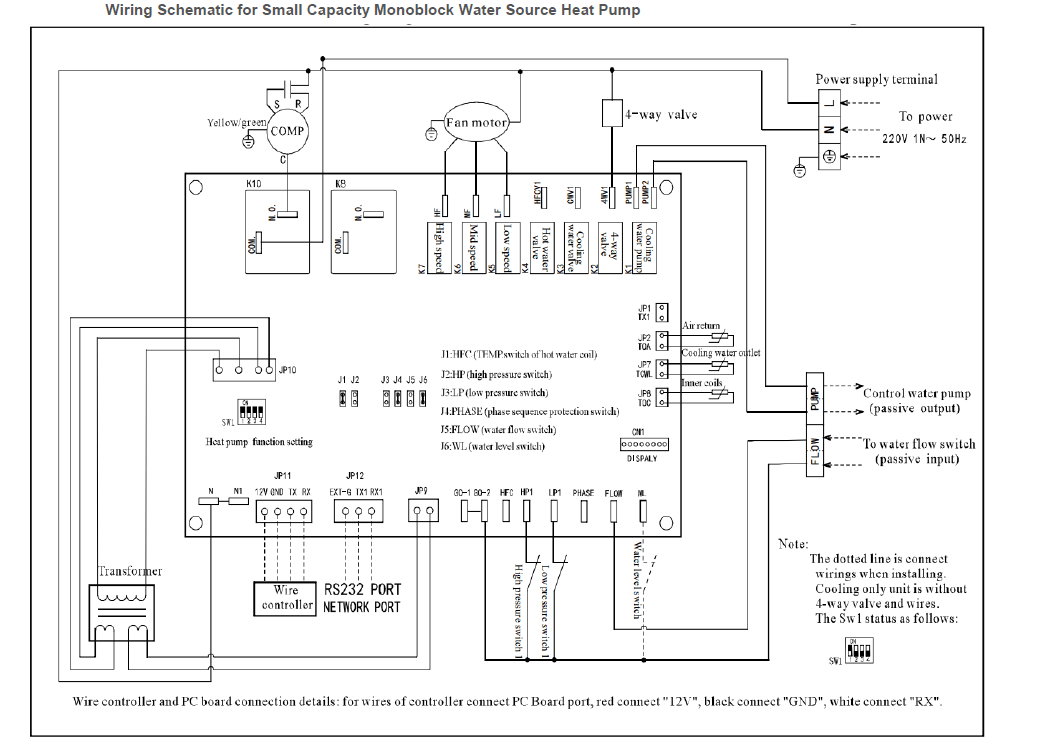

Withair Main Components_23

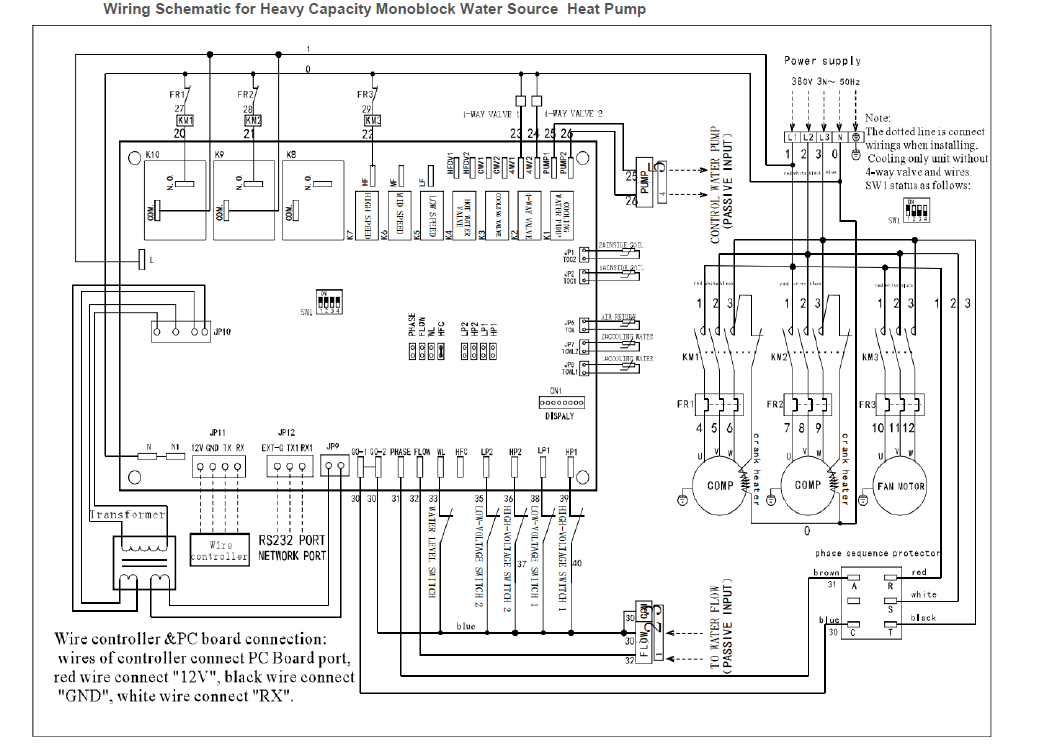

Withair Main Components_24

Withair Main Components_25

Withair Main Components_26

Withair Main Components_27

Withair Main Components_28

Withair Main Components_29

Withair Main Components_30

—— You May Like ——

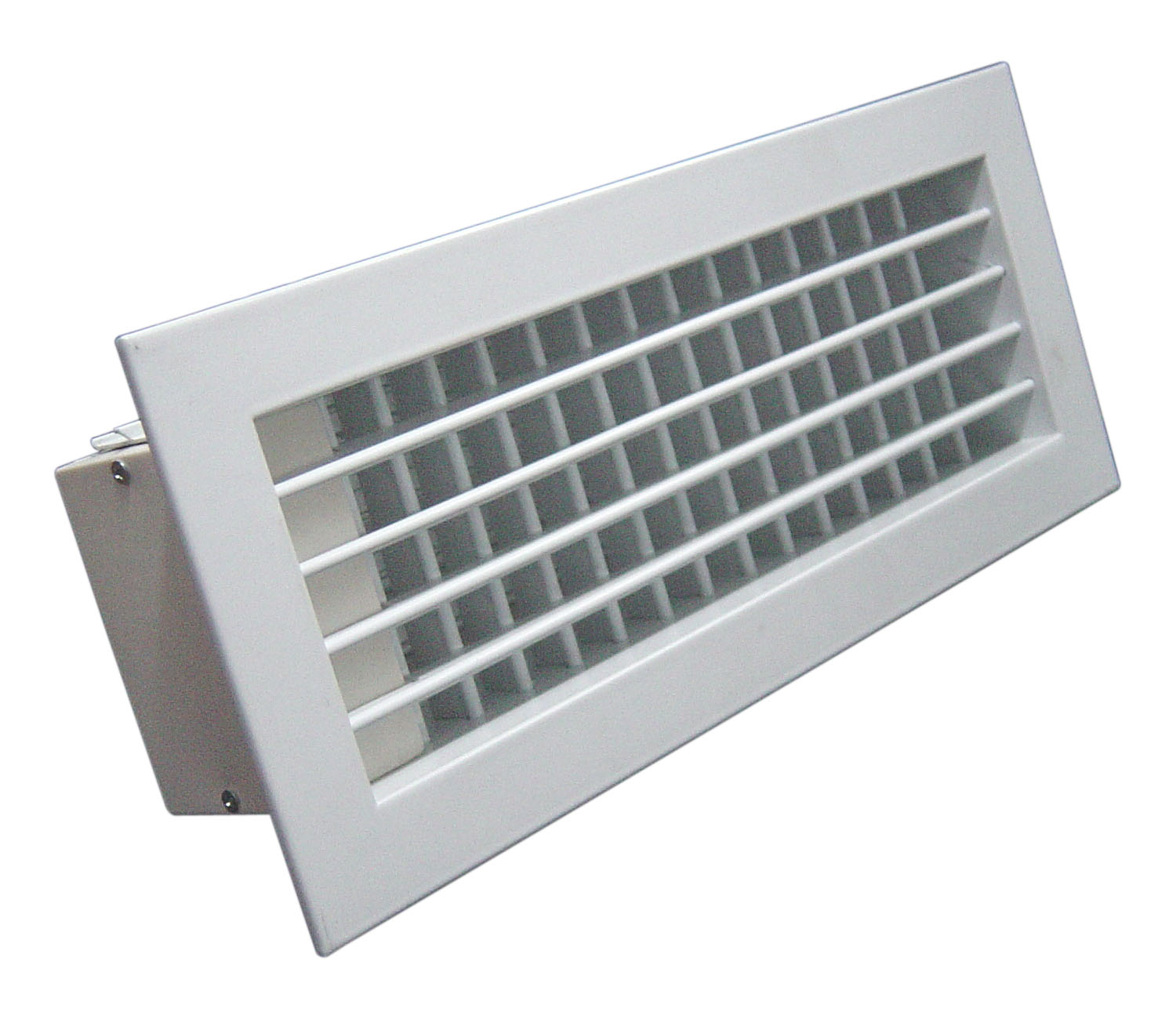

Water Source Heat Pump + Air Vents + Insulation pipe + Thermostat

Physical Data

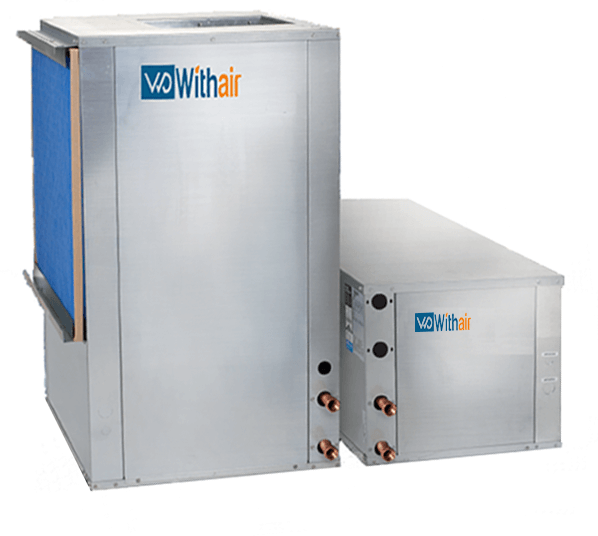

Small Capacity Package Water Source Heat Pump

Model			W01R2-2.6P	W01R2-3.5P	W01R2-4.5P	W01R2-5.8P	W01R2-7.2P	W01R2-8.6P	W01R2-10.5P	W01R2-12.6P	W01R2-14.6P
Rated cooling capacity		kW	2.6	3.5	4.5	5.8	7.2	8.6	10.5	12.6	14.6
Rated cooling capacity		USRT	0.74	1.00	1.28	1.65	2.05	2.45	2.99	3.58	4.15
Rated heating capacity		kW	3	3.95	5.1	6.48	8.1	9.4	11.4	13.6	15.8
Rated heating capacity		USRT	0.85	1.12	1.45	1.84	2.30	2.67	3.24	3.87	4.49
Rated cooling input power		kW	0.59	0.82	1.02	1.35	1.65	1.94	2.51	3.02	3.47
Rated heating input power		kW	0.63	0.85	1.1	1.45	1.74	2.03	2.71	3.24	3.7
Air flow rate		m³/h	520	715	910	1190	1480	1760	2150	2570	3010
External static pressure		Pa	12(8)	20(12)			30(20)		50(30)
Power supply			230V/1P/50Hz (60Hz as option)
Rated cooling input current		A	2.7	3.9	4.9	6.5	7.8	9.3	11.6	14	16
Rated heating input current		A	3	4	5.2	6.9	8.2	9.7	12.6	15	17.1
Water side heat exchanger	type		High efficiency tube in tube heat exchanger
	water flow rate	m³/h	0.58	0.72	0.92	1.25	1.52	1.85	2.25	2.66	3.12
	pressure drop	kPa	10	18	25	30	36	37	35	62	63
	Inlet/outlet pipe	Inch	3/4"						1"
Compressor			High efficiency rotary compressor						High efficiency scroll compressor
Safe protection device			High-low pressure protection, overload protection, Inverse/lack phase protection, water-lack, anti-freeze protector, overheat,etc
Refrigerant			HFC-R410A
Noise level		dB(A)	38.5	38.5	40	40	41	42.5	43.5	43.5	45
Dimension	length	mm	1050	1050	1050	1050	1100	1100	1300	1300	1400
	width	mm	500	500	500	500	560	560	680	680	680
	height	mm	360	360	420	420	485	485	525	525	525
Power lines			2.5mm²x3			4.0mm²x3			2.5mm²x5
Weight		kg	60	65	75	85	100	110	130	150	160

Performance Correction Table of Water Loop Working Condition(with Hot Water Coils)

Model			W01R2-2.6P	W01R2-3.5P	W01R2-4.5P	W01R2-5.8P	W01R2-7.2P	W01R2-8.6P	W01R2-10.5P	W01R2-12.6P	W01R2-14.6P
Rated cooling capacity		kW	2.6	3.5	4.5	5.8	7.2	8.6	10.5	12.6	14.6
Hot water heating capacity		kW	(2.34)	(3.15)	(4.05)	(5.22)	(10.00)	(12.00)	(14.50)	(17.50)	(20.50)
Rated cooling input power		kW	0.61	0.87	1.1	1.41	1.71	1.94	2.51	3.02	3.47
Hot water heating input power		kW	(0.05)	(0.07)	(0.09)	(0.13)	(0.28)	(0.31)	(0.38)	(0.42)	(0.53)
Hot water coils	pipe	In	3/4"	3/4"	3/4"	3/4"	3/4"	3/4"	3/4"	3/4"	3/4"
	water flow rate	m³/h	0.45	0.64	0.87	1.11	1.22	1.43	1.98	2.35	2.82
	pressure drop	kPa	2.2	2.4	4.87	10	13.56	14.9	3.31	4.7	7.5

Notes:

1.Cooling condition: the dry bulb temperature 27℃, wet bulb temperature 19℃;inlet water temperature 30℃,outlet water temperature 35℃.

2.Heating condition: the dry bulb temperature 20℃, wet bulb temperature 15℃; inlet water temperature 60℃,outlet water temperature 50℃.

Heavy Capacity Package Water Source Heat Pump

Model			W01R2-17.5P	W01R2-21P	W01R2-25P	W01R2-30P	W01R2-35P	W01R2-40P	W01R2-52P	W01R2-68P	W01R2-140P
Rated cooling capacity		kW	17.5	21.0	25.0	30.0	35.0	40.0	52.0	68.0	140.0
Rated cooling capacity		USRT	5.0	6.0	7.1	8.5	10.0	11.4	14.8	19.3	39.8
Rated heating capacity		kW	19.6	23.62	28	33.6	39.2	44.8	58.2	76.2	162.9
Rated heating capacity		USRT	5.6	6.7	8.0	9.6	11.1	12.7	16.5	21.7	46.3
Rated cooling input power		kW	4.18	5.13	6.04	7.2	8.3	9.5	12.4	16.5	43.7
Rated heating input power		kW	4.4	5.43	6.75	8.08	9.1	10.2	13.1	18.6	47.2
Air flow rate		m³/h	3600	4320	5400	6500	7500	8200	10800	14000	27500
External static pressure		Pa	80(50)	80(50)	120(150)			150(200)	200(250)
Power supply			380V/3P/50Hz (400V/415V/3P/50Hz, 230V/380V/460V/3P/60Hz as option)
Rated cooling input current		A	6.54	7.9	9.3	11.1	12.8	14.6	19	25.5	51.6
Rated heating input current		A	7	8.3	10.3	12.3	13.9	15.7	20	28.3	61.1
Water side heat exchanger	type		High efficiency plate heat exchanger					High efficiency shell & tube heat exchanger
	water flow rate	m³/h	3.65	4.32	5.14	6.17	7.2	8.23	10.69	13.99	26.5
	pressure drop	kPa	64	65	66	67	68	69	72	75	86
	Inlet/outlet pipe	Inch	1-1/4"						1-1/2"
Compressor			High efficiency scroll compressor
Safe protection device			High-low pressure protection, overload protection, Inverse/lack phase protection, water-lack, anti-freeze protector, overheat,etc
Refrigerant			HFC-R410A
Noise level		dB(A)	50	53	56	60	64	66	68	69	75
Dimension	length	mm	1700	1580	1580	2000	2100	2230	2380	2380	2560
	width	mm	680	1000	1000	1180	1180	1180	1180	1400	2203
	height	mm	550	730	730	730	730	730	880	1330	1476
Power lines			4.0mm²x5			6.0mm²x5			10.0mm²x5
Weight		kg	240	350	380	440	480	530	610	970	1580

Performance Correction Table of Water Loop Working Condition(with Hot Water Coils)

Model			W01R2-17.5P	W01R2-21P	W01R2-25P	W01R2-30P	W01R2-35P	W01R2-40P	W01R2-52P	W01R2-68P	W01R2-140P
Rated cooling capacity		kW	17.5	21.0	25.0	30.0	35.0	40.0	52.0	68.0	140.0
Hot water heating capacity		kW	24.5	(29.00)	(22.00)	(26.00)	(30.00)	(35.00)	(46.00)	(60.00)	(128.00)
Rated cooling input power		kW	4.18	5.13	6.04	7.2	8.3	9.5	12.4	16.5	43.7
Hot water heating input power		kW	0.71	0.76	1.10	1.25	1.70	1.80	1.95	2.30	4.90
Hot water coils	pipe	In	3/4"	3/4"	3/4"	3/4"	3/4"	3/4"	3/4"	3/4"	3/4"
	water flow rate	m³/h	2.94	3.2	4.2	5.1	6	7.2	8.6	10.1	22.3
	pressure drop	kPa	8.6	9.5	12.7	15.9	26.2	28.6	37.2	41.5	52.1

1.Cooling condition: the dry bulb temperature 27℃, wet bulb temperature 19℃;inlet water temperature 30℃,outlet water temperature 35℃.

2.Heating condition: the dry bulb temperature 20℃, wet bulb temperature 15℃; inlet water temperature 60℃,outlet water temperature 50℃.

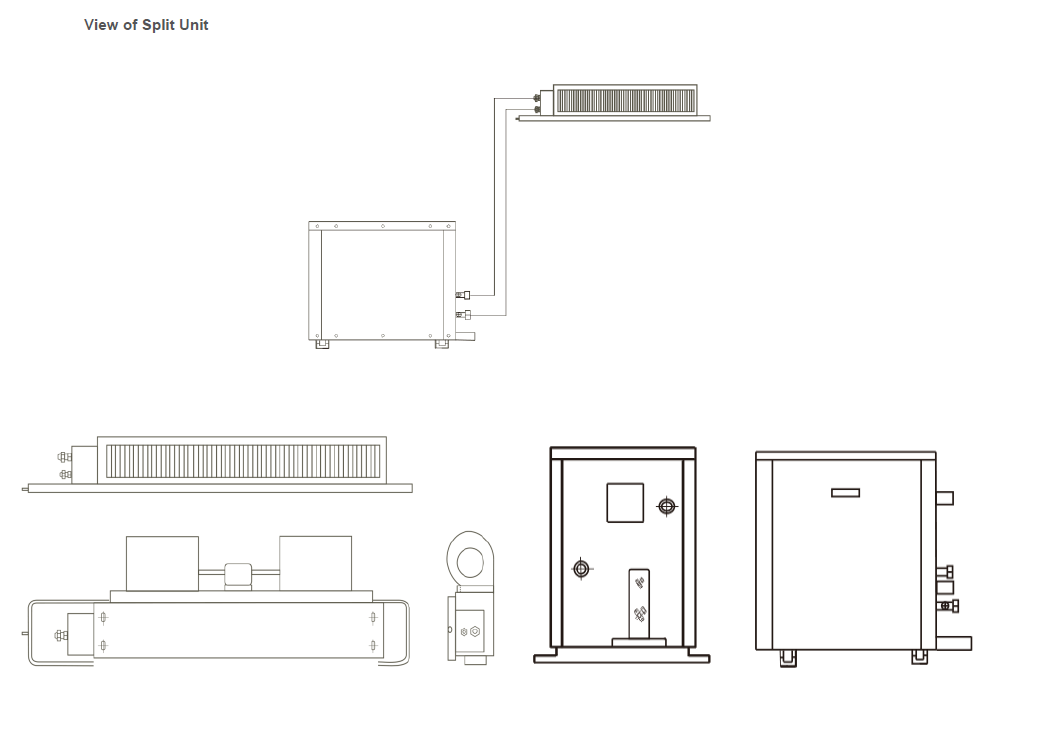

Split Type Water Source Heat Pump

Model	indoor		W01R2-2.6S1	W01R2-3.5S1	W01R2-4.5S1	W01R2-5.8S1	W01R2-7.2S1	W01R2-8.6S1	W01R2-10.5S1	W01R2-12.6S1	W01R2-14.6S1
Model	outdoor		W01R2-2.6S2	W01R2-3.5S2	W01R2-4.5S2	W01R2-5.8S2	W01R2-7.2S2	W01R2-8.6S2	W01R2-10.5S2	W01R2-12.6S2	W01R2-14.6S2
Rated cooling capacity		kW	2.6	3.5	4.5	5.8	7.2	8.6	10.5	12.6	14.6
Rated cooling capacity		USRT	0.74	1.00	1.28	1.65	2.05	2.45	2.99	3.58	4.15
Rated heating capacity		kW	3	3.95	5.1	6.48	8.1	9.4	11.4	13.6	15.8
Rated heating capacity		USRT	0.85	1.12	1.45	1.84	2.30	2.67	3.24	3.87	4.49
Rated cooling input power		kW	0.59	0.82	1.02	1.35	1.65	1.94	2.51	3.02	3.47
Rated heating input power		kW	0.63	0.85	1.1	1.45	1.74	2.03	2.71	3.24	3.7
Air flow rate		m³/h	500	700	910	1190	1480	1760	2150	2570	3010
External static pressure		Pa	12(8)	20(12)			30(20)		50(30)
Power supply			230V/1P/50Hz (60Hz as option)						380V/3P/50Hz (230V415V/3P/60Hz as option)
Rated cooling input current		A	2.7	3.9	4.9	6.5	7.8	9.3	3.9	4.7	5.4
Rated heating input current		A	3	4	5.2	6.9	8.2	9.7	4.2	5	5.7
Compressor type			High efficiency rotary compressor						High efficiency scroll compressor
Safe protection device			High-low pressure protection, overload protection, Inverse/lack phase protection, water-lack, anti-freeze protector, overheat,etc
Refrigerant			HFC-R410A
Water side heat exchanger	type
	water flow rate	m³/h	0.58	0.72	0.92	1.25	1.52	1.85	2.25	2.66	3.12
	pressure drop	kPa	18	22	30	35	35	35	35	38	38
	Inlet/outlet pipe	Inch	3/4"(DN20)					1"(DN25)		1"-1/4"(DN32)
Connection	liquid pipe	mm	￠6×0.75				￠9.52×0.75			￠12.7×0.75
Connection	gas pipe	mm	￠9.52×0.75		￠12.7×0.75		￠16×1.0		￠19×1.0
Noise	indoor	dB(A)	35	35	37	37	40	41	42	42	42
Noise	outdoor	dB(A)	30	31	32	32	35	36	36	38	38
Dimension (LxWxH)	indoor	mm	855475235	1005475235	1125475235	1355475235	1605475235	1750475235	2005475235	2065490285
Dimension (LxWxH)	outdoor	mm	550430385		590430385	550490420	635520510		695520535	720580535
Weight	indoor	kg	18	22	26	30	34	36	40	50	55
Weight	outdoor	kg	34	35	40	48	66	68	90	90	100

Performance Correction Table of Water Loop Working Condition(with Hot Water Coils)

Model	indoor		W01R2-2.6S1	W01R2-3.5S1	W01R2-4.5S1	W01R2-5.8S1	W01R2-7.2S1	W01R2-8.6S1	W01R2-10.5S1	W01R2-12.6S1	W01R2-14.6S1
Model	outdoor		W01R2-2.6S2	W01R2-3.5S2	W01R2-4.5S2	W01R2-5.8S2	W01R2-7.2S2	W01R2-8.6S2	W01R2-10.5S2	W01R2-12.6S2	W01R2-14.6S2
Rated cooling capacity		kW	2.6	3.5	4.5	5.8	7.2	8.6	10.5	12.6	14.6
Hot water heating capacity		kW	(2.34)	(3.15)	(4.05)	(5.22)	(6.48)	(7.78)	(9.45)	(11.40)	(13.20)
Rated cooling input power		kW	0.61	0.87	1.1	1.41	1.71	2.04	2.51	3.02	3.47
Hot water heating input power		kW	0.05	0.07	0.09	0.13	0.14	0.16	0.22	0.24	0.28

1.Cooling condition: the dry bulb temperature 27℃, wet bulb temperature 19℃;inlet water temperature 30℃,outlet water temperature 35℃.

2.Heating condition: the dry bulb temperature 20℃, wet bulb temperature 15℃; inlet water temperature 60℃,outlet water temperature 50℃.

Notes:

1. These parameter were tested according to pure water,not include anti-freezing liquid and water pump power.

2. The unit do not provide water pump,and disposed by project demand.

3. All models, sizes, dimensions, and specifications are subject to change without prior notice, please refer to nameplates for the most accurate specifications.

Ground Loop Working Condition:

1. Cooling standard working condition: User side inlet/outlet water temperature 12℃/7℃; Source side inlet/outlet water temperature 25℃/30℃;

2. Heating standard working condition: User side inlet/outlet water temperature 40℃/45℃; Source side inlet water temperature 10℃;

Ground Water Working Condition:
1. Cooling standard working condition: User side inlet/outlet water temperature 12℃/7℃; Source side inlet/outlet water temperature 18℃/29℃;

2. Heating standard working condition: User side inlet/outlet water temperature 40℃/45℃; Source side inlet water temperature 15℃;

Water Loop Working Condition:

1. Cooling standard working condition: User side inlet/outlet water temperature 12℃/7℃; Source side inlet/outlet water temperature 30℃/35℃;

2. Heating standard working condition: User side inlet/outlet water temperature 40℃/45℃; Source side inlet water temperature 20℃;

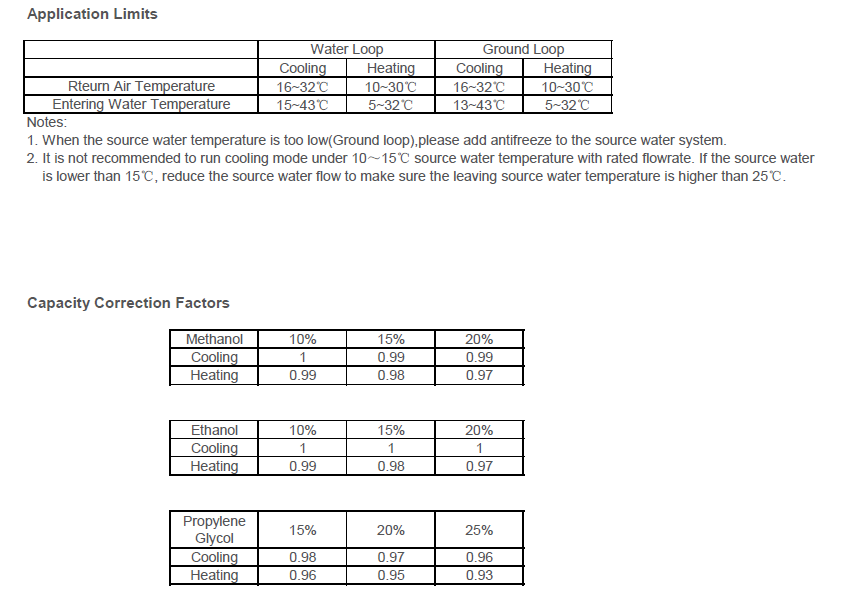

Withair data

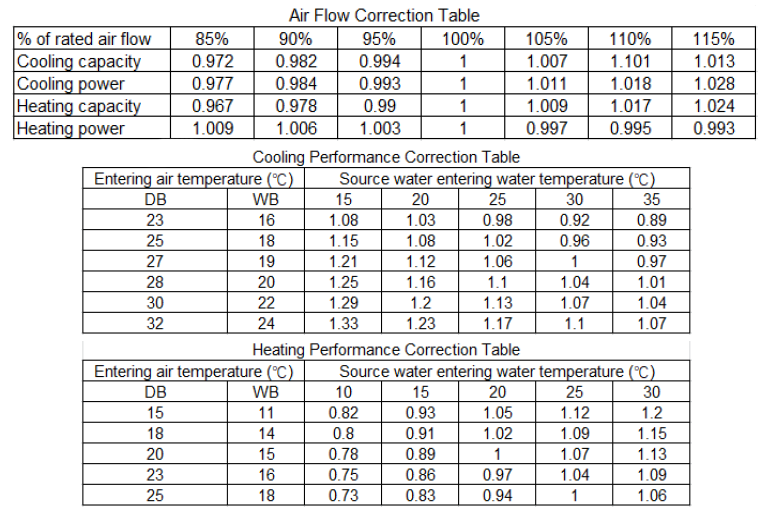

Withair data 2

Packaging & Transportation

-

● Four steps of pakacges, plastic film, foam, carton and plywood for stable transporation.

● 100% test before deliverying products.

● Item shipped in 25 working days against payment depends on the quantity.

● Products catalogue, installation & operation manual will be sent together.

● Tracking number will be sent to customer as soon as we ship the products.

● Ocean shipping, railway shipment and air transportation are acceptable according to customer demand.

Withair® provides two styles package for different transporation modes:

(1). Standard package(free of charge): unit is wrapped with plastic film and carton, which is suitable for container shipment & a few transshipment cargo;
Withair Water Source Heat Pump package by carton

Withair Water Source Heat Pump package by carton

(2). Special package(extra charge): unit is wrapped with plastic film and wooded box, which is suitable for bulk cargo transporation;
Withair Water Source Heat Pump package by wooden case

Withair Water Source Heat Pump package by wooden case

Catalogue Download

Withair® Water Source Heat Pumps Catalogue 2017.pdf

Water Source Heat Pumps Water Source Heat Pump Water to Air Heat Pumps Ground Source Heat Pumps Geothermal Heat Pumps Heat Pump Water to Air Water to air Monoblock units Water Cooled Heat Pumps heat source pump heat pump heating

Water Source Heat Pumps (Water to Air Heat Pumps)

Water Source Heat Pump + Air Vents + Insulation pipe + Thermostat

Quick Links

Product Category

Get In Touch
