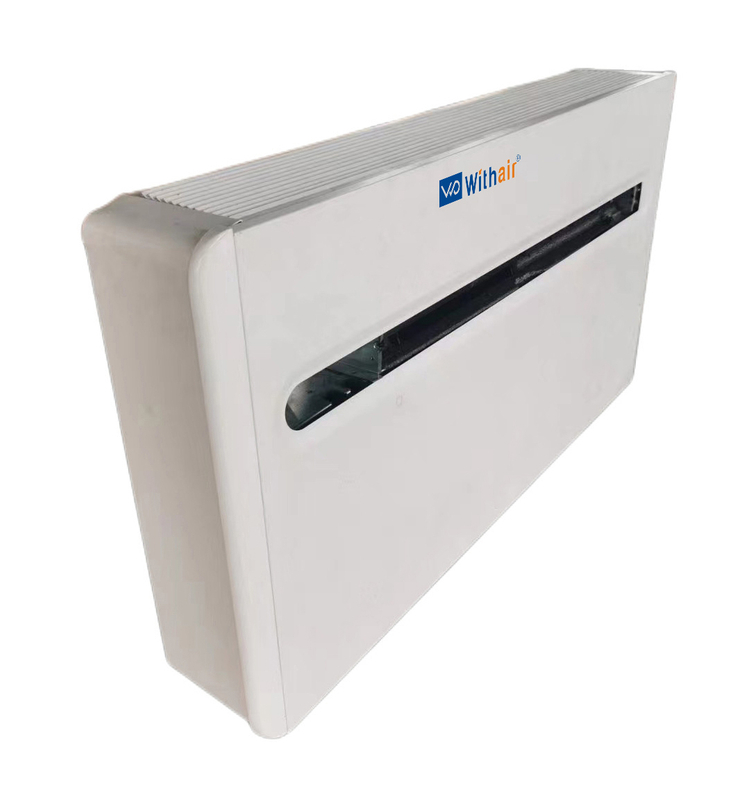

Through Wall Packaged Heat Pump

  • W01R1 Series

  • Withair® / OEM brand as option

  • 8418612090

  • 7,000 ÷ 12,000Btu/h

  • 7,200 ÷ 12,400Btu/h

  • 2.8 EER / 3.2 COP

  • Compressor - 5 year limited ; Other parts - 1 year limited

  • R410A

  • Rotary type; HITACHI, Daikin, Panasonic, MITSUBISHI,Copeland

  • High efficiency finned copper pipe heat exchanger

  • High efficiency finned copper pipe heat exchanger

  • Office Use, Residential Use

  • 230V/1Ph/50Hz (208V/1Ph/60Hz as option)

  • Withair® Through Wall Packaged Heat Pump.pdf


Product Description

—— Product Description ——

Almost invisible, powerful, noiseless and space-saving: this is the Withair® air conditioner without an external unit. No more of the usual bulky, unsightly condensing units that spoil homes. Withair® has developed a high-efficiency solution with a hyper-compact design that minimises aesthetic impact. Just 16 centimetres deep, super simple installation and DC Inverter technology to optimise performance.

Optimised power, reduced consumption and noise. With DC Inverter technology, the powers are optimised for maximum comfort with less consumption and noise, and thanks to Dual Power you can use maximum power to reach the required temperature in the shortest possible time.  Once reached, the unit automatically adjusts itself in function of comfort. The external grilles are foldable: they open when the machine is running and close when it is switched off, so as to minimise dust, noise and pollution, maximising comfort.

High on the wall or down on the floor? Withair® can count on a complete product range that allows you to find the right model for every type of installation.    All you need is an external wall and you can find the space to insert it high up on the wall, low down on the floor, in the corner or to the side of a French door. Maximum versatility to meet every need.

Form follows function, Hyper-compact design and no plastic. The minimum depth, the right colour, the perfectly smooth surface, the body made entirely of metal... a product designed to integrate perfectly into any domestic environment, giving excellent performance and at the same time... disappearing... in both horizontal and vertical developments, the design of unit has been carefully studied down to the smallest detail so as to combine form and function in a perfect symbiosis. Unit has a 100% metal body that is strong and robust. In the design, the dimensions of the components have been reduced and optimised to include all the functions required for perfect operation within a hyper-compact design. The depth? Just 16 centimetres. An ultra-thin thickness that minimises aesthetic impact, both inside and out.


—— The Key Advantages Include ——


● ECO friendly refrigerant R410A,R407C.

Two holes, no outdoor units for option.

Intelligent defrost totally.

● With only 16 cm depth unit is extremely slim and unobtrusive. The aesthetic impact is limited, both indoor and outdoor.

● The independent design and manufacturing of high efficiency heat exchanger, strong energy saving and anti-freeing.

● Important for both design and installation: easier to find drilling tools, no need for professional drills, even less aesthetic impact.

● “Cooling Only” and “Heat Pump” in the same model.

● No frost system.

● Multi self-protection  functions, such as: high & low pressure, high temperature, and antifreeze protection.

● Modular networking technology, the operation of individual modules can be coordinated according demand.

● Advanced & world-famous inverter compressor high-efficiency, low-noise and low-vibration operation.

● Remote monitoring and control features enable the unit’s operational schedule to be set via internet or phone.

● Remote control, central control and WIFI control are for options.

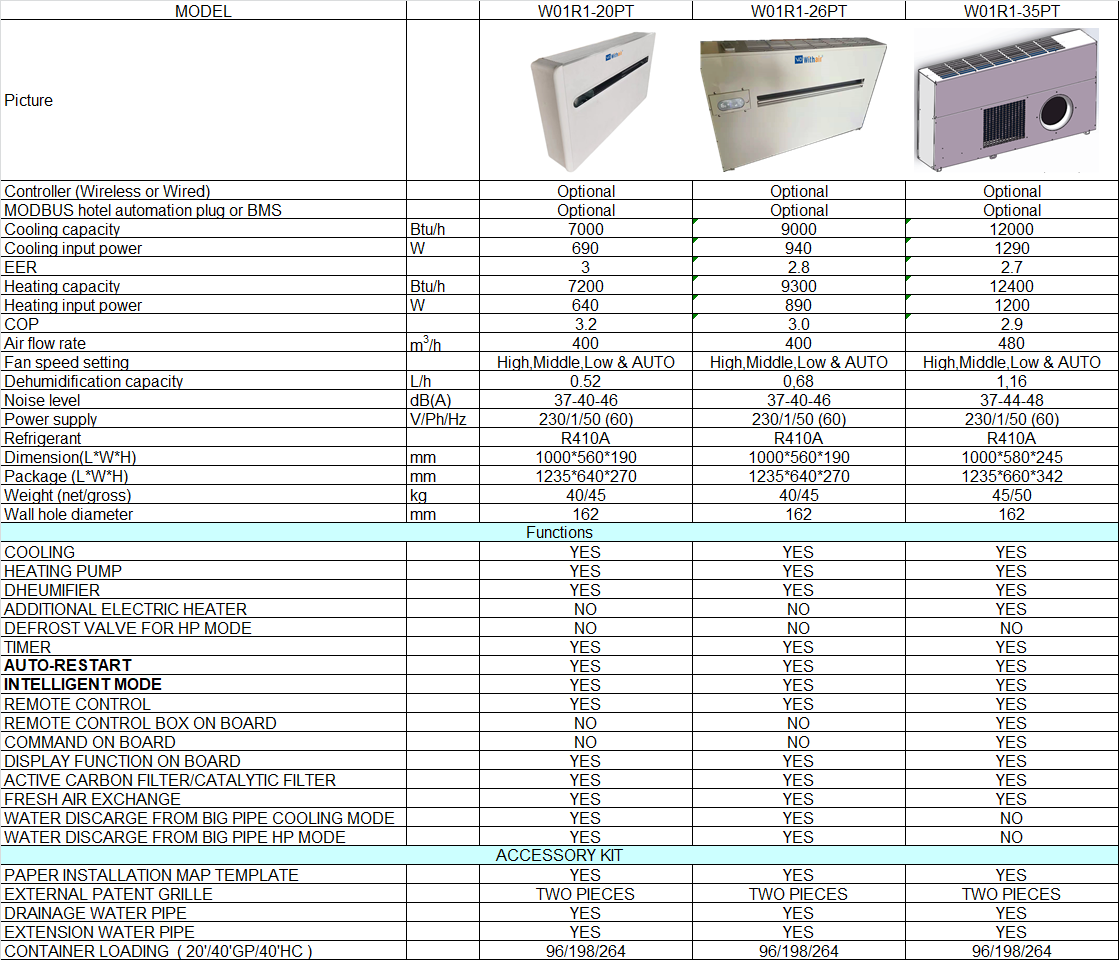

Physical Data

Through Wall Packaged Heat Pump

Withair® Through Wall Packaged Heat Pump


1.Standard cooling work condition: indoor dry bulb temperature 27℃,wet bulb temperature 19℃; outdoor dry bulb temperature 35℃,wet bulb temperature 24℃.
2.Standard heating work condition: indoor dry bulb temperature 20℃; outdoor dry bulb temperature 7℃,wet bulb temperature 6℃.
3.All models, sizes, dimensions, and specifications are subject to change without prior notice, please refer to nameplates for the most accurate specifications

Packaging & Transportation

● Four steps of pakacges, plastic film, foam, carton and plywood for stable transporation.

● 100% test before deliverying products.
● Item shipped in 25 working days against payment depends on the quantity.
● Products catalogue, installation & operation manual will be sent together.
● Tracking number will be sent to customer as soon as we ship the products.
● Ocean shipping, railway shipment and air transportation are acceptable according to customer demand.

Withair® provides two styles package for different transporation modes:

(1). Standard package(free of charge): unit is wrapped with plastic film, foam and carton,which is suitable for container shipment & a few transshipment cargo;
       withair heat pump_carton package-
(2). Special package(extra charge): unit is wrapped with plastic film and wooded box, which is suitable for bulk cargo transporation;
       Withair Heat Pumps package by wooden box
