The Withair® Compact Series Water Cooled Modular Chiller serves all your current needs for a compact chiller that is efficient and reliable. It scales up easily to meet your future needs as facilities

Views:50     Author:Withair®     Publish Time: 2021-04-20      Origin:Site

The Withair® Compact Series chillers are the ideal solution for businesses looking to maximize space and operate at a wide range of nominal tonnages.

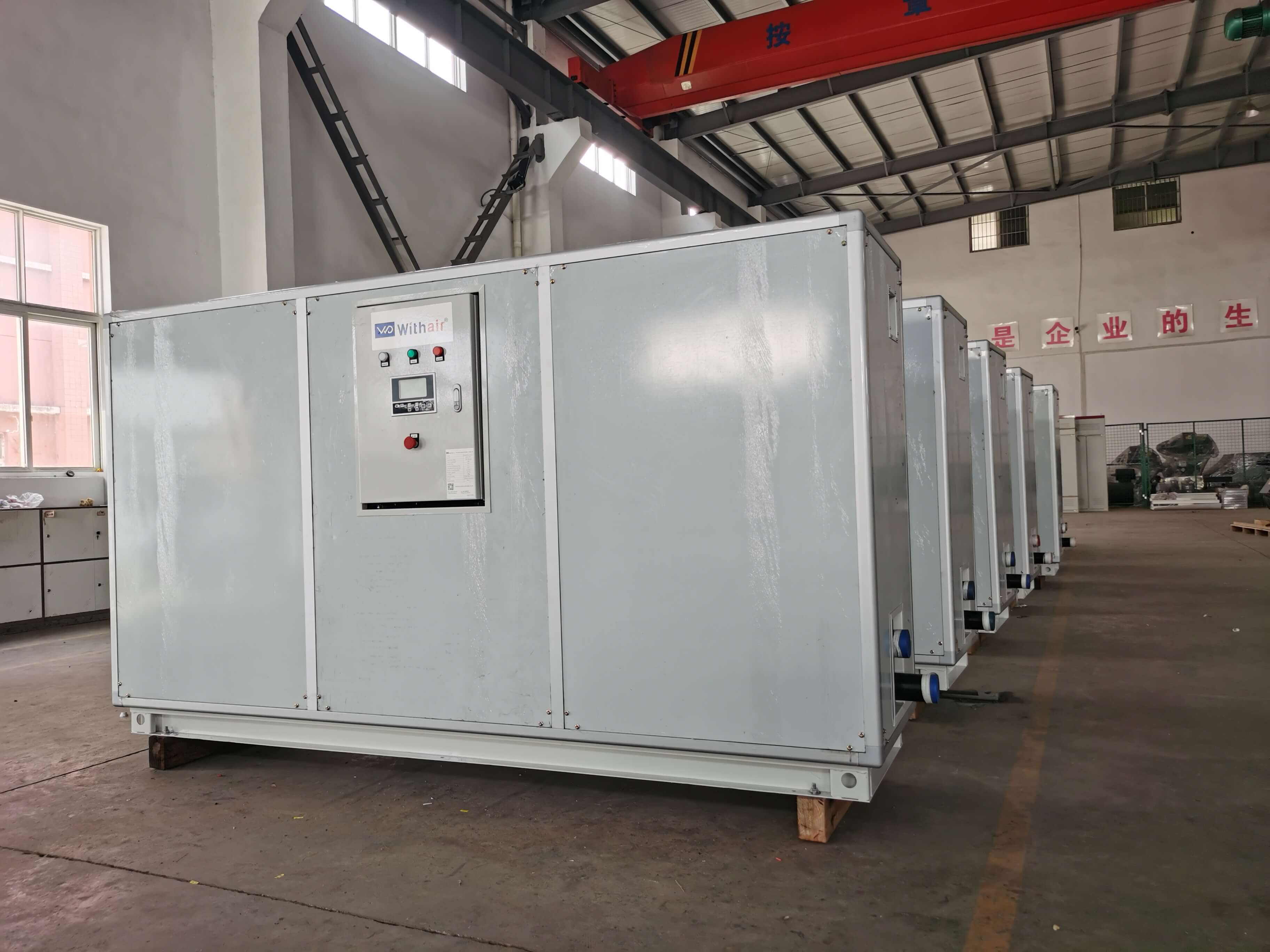

Withair® Compact Series Water Cooled Modular Chiller (1)

The Withair® water cooled modular chiller provides reliable performance and optimized capacity from a compact, modular unit with an overall footprint that is 36 percent smaller than similar products. Operate one chiller or integrate multiple units to get exactly the capacity you need for adequate cooling or to establish chiller redundancy.

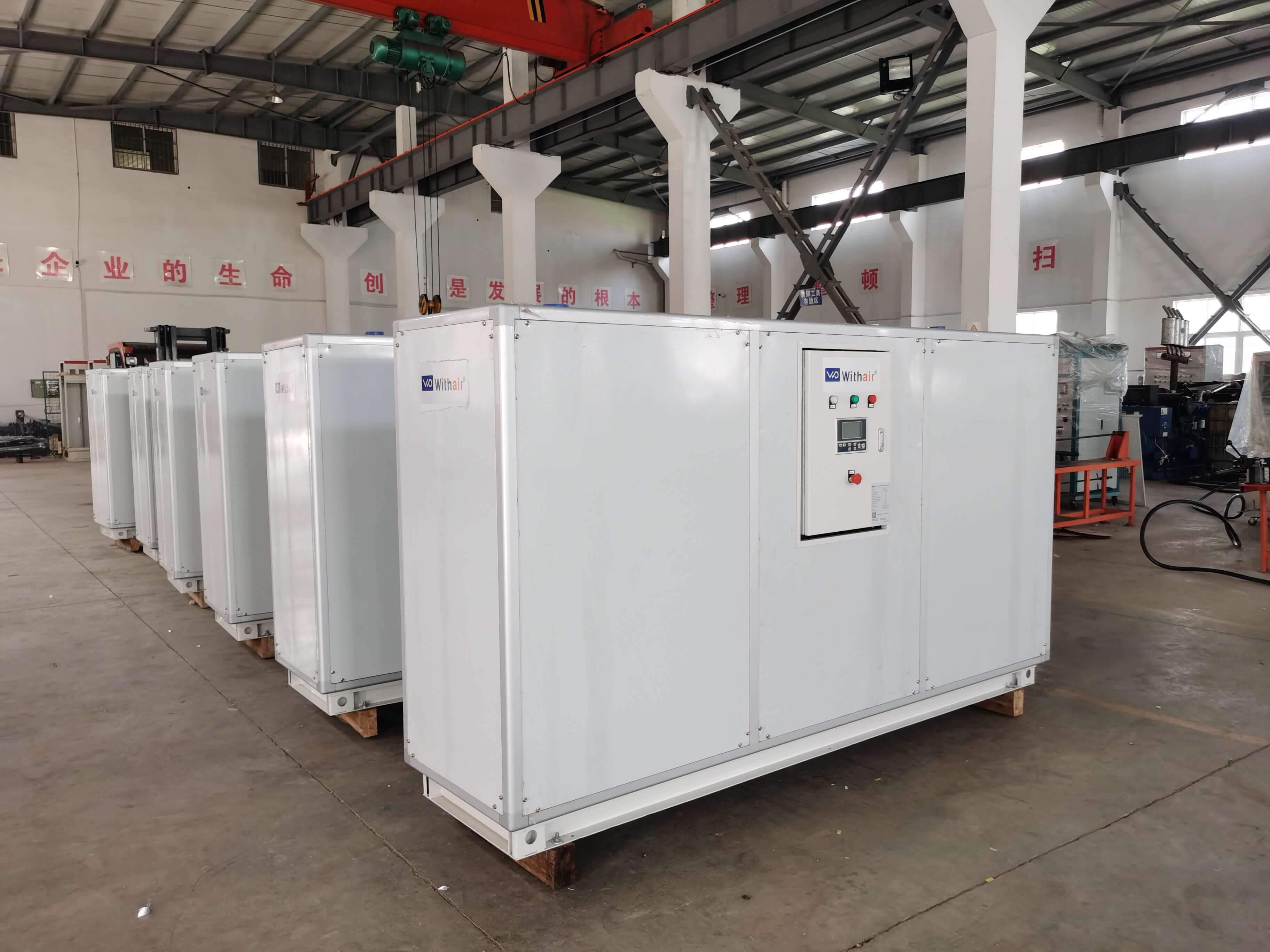

Withair® Compact Series Water Cooled Modular Chiller (2)

The Withair® water-cooled chillers are complete, factory assembled units designed for a wide range of comfort and process cooling applications, but also have the ability to be piped into a multi-stage array of up to eight (8) chillers for much larger capacities.

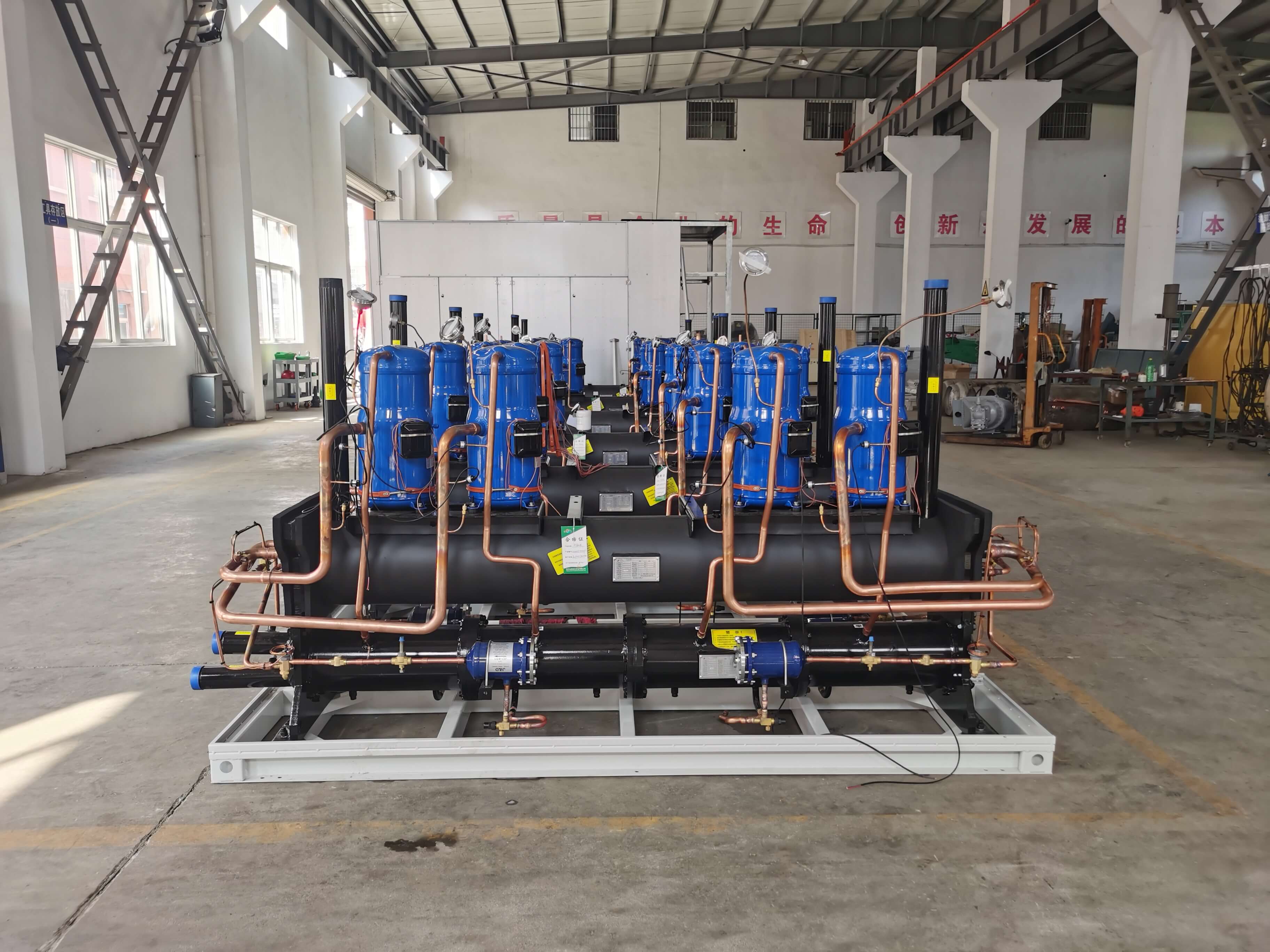

Withair® Compact Series Water Cooled Modular Chiller (3)

Flexibility & Expandability

Fast and easy installation is ensured as the compact chillers are scaled to fit through a standard 36” doorway and to fit in a standard elevator.

Individual or array capabilities allow the compact chillers to be configured to meet capacity needs ranging from 20 tons to 600 tons.

Easily upgradeable system. As facilities grow, so do the number of occupants.Chillers can be added to provide increased cooling capacity.

Serviceability

Easily accessible components are serviced through convenient front access.

Detachable water header section if needed to rig equipment through tight paths or remove an entire compact chiller from an array.

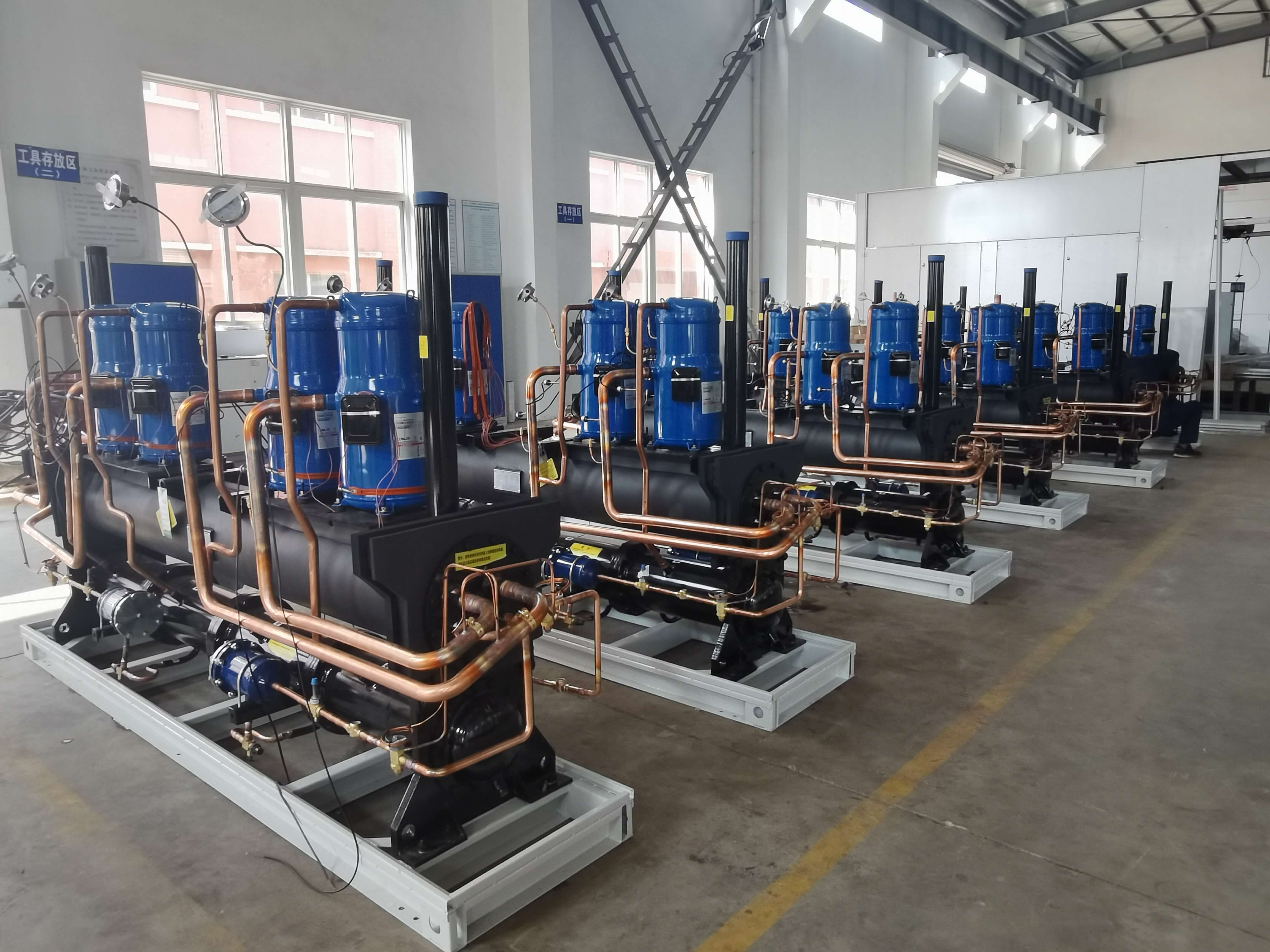

Withair® Compact Series Water Cooled Modular Chiller (4)

The Withair® compact controller stores operational and diagnostic information that can be accessed locally or remotely using an Ethernet or other type interface.

Compact Chiller Applications

Modular chiller solutions are ideal for the following applications:

• Commercial Real-Estate

• Industrial Cooling and Processes

• High-Rise Residential

• Healthcare

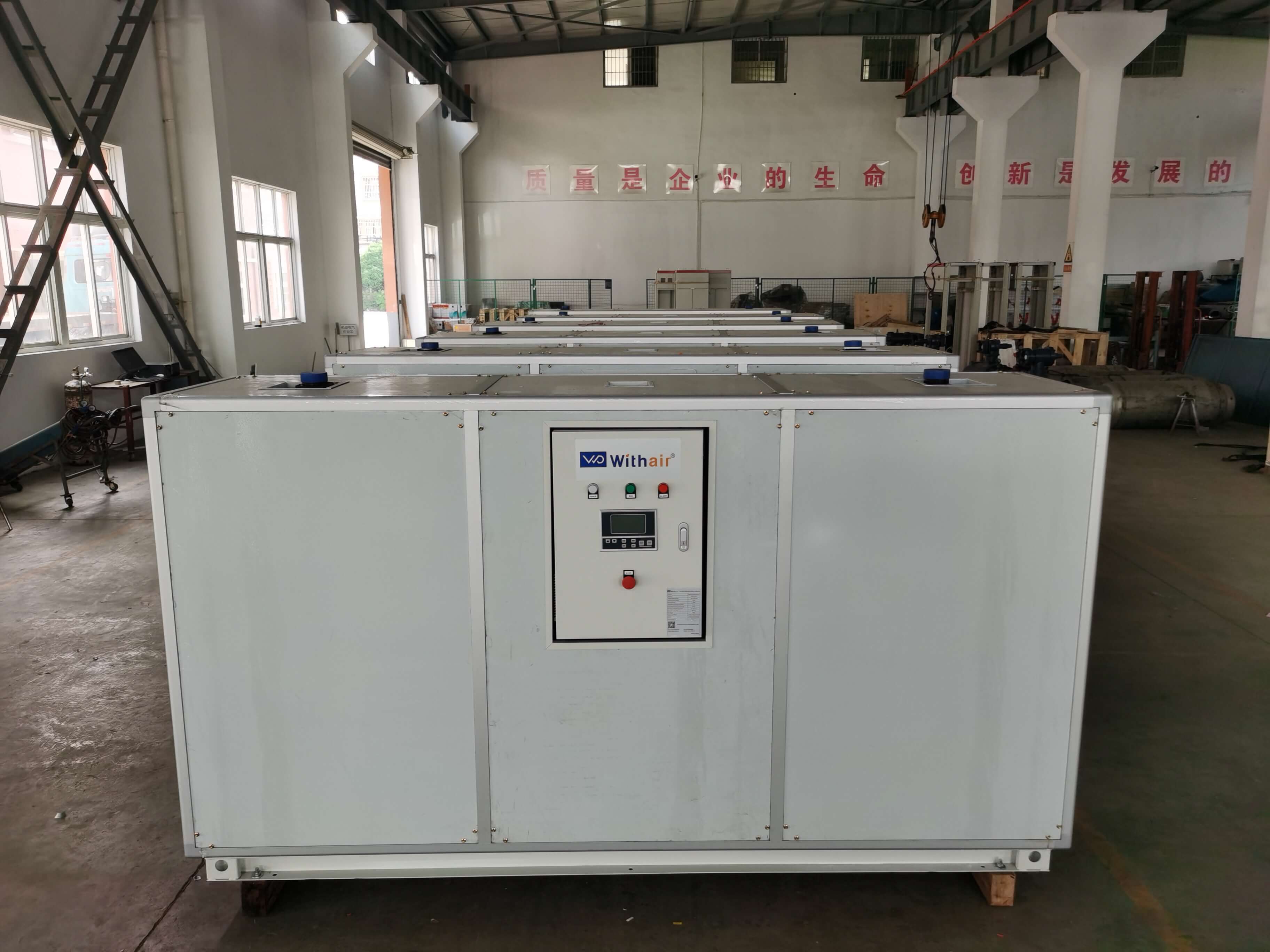

Withair® Compact Series Water Cooled Modular Chiller (5)

Features of The Withair® Compact Series chillers as follows:

* Available in 20 to 85 ton Configurable into multi-stage arrays with capacities ranging from 20 to 600 ton

* Compatible with a wide range of heat exchangers and electrical systems

* Available with multiple factory-installed options to serve various site and service needs)

* Superior reliability—with active freeze protection™ system which prevents ice from forming in the evaporator at low load conditions.

* Chillers in an array operate independently, so if one shuts down the others keep running.

* Plus, every chiller is tested to ensure it meets performance specifications.

* Sustainable and efficient—cutting edge features include a heat recovery option, and the ability to support thermal storage to leverage off-peak power generation. It supports “low flow-low temp” system design, which reduces emissions operating costs.

* Easily serviceable—saving you thousands of dollars in service and maintenance annually through convenient front-door access to compressors, evaporators, condensers, refrigerant and water pipe components.

* User-friendly controls are placed directly on the front panel. Using a single strainer per array reduces installation costs and minimizes service requirements. Simplified installation—integrating easily with building automation systems by supporting open standard protocols. Speeds up start-up by using a single power point for a full array, without busbar.

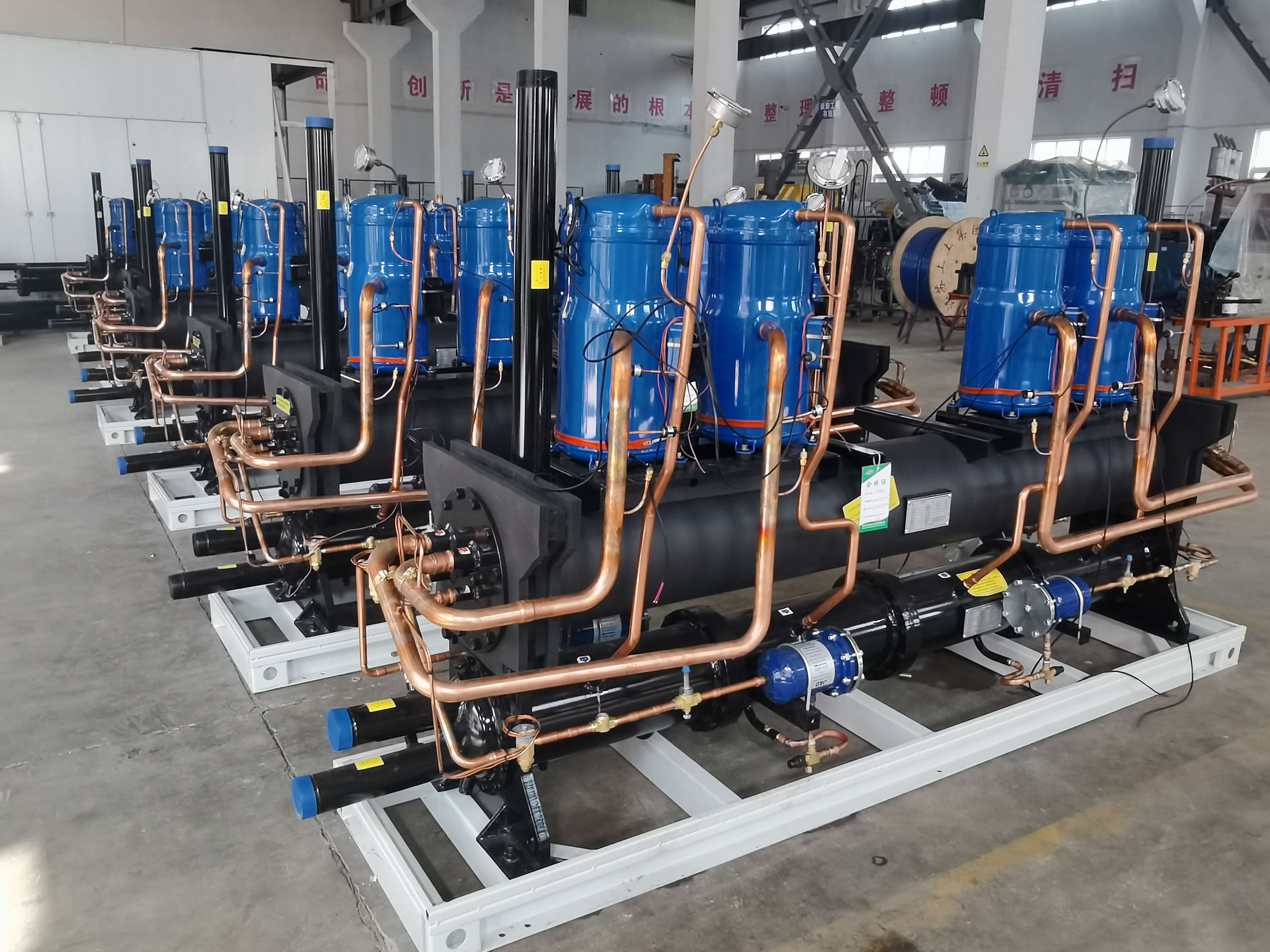

Withair® Compact Series Water Cooled Modular Chiller (6)

The Withair® Compact Series water cooled modular chiller serves all your current needs for a compact chiller that is efficient and reliable. It scales up easily to meet your future needs as facilities evolve and occupancy grows.

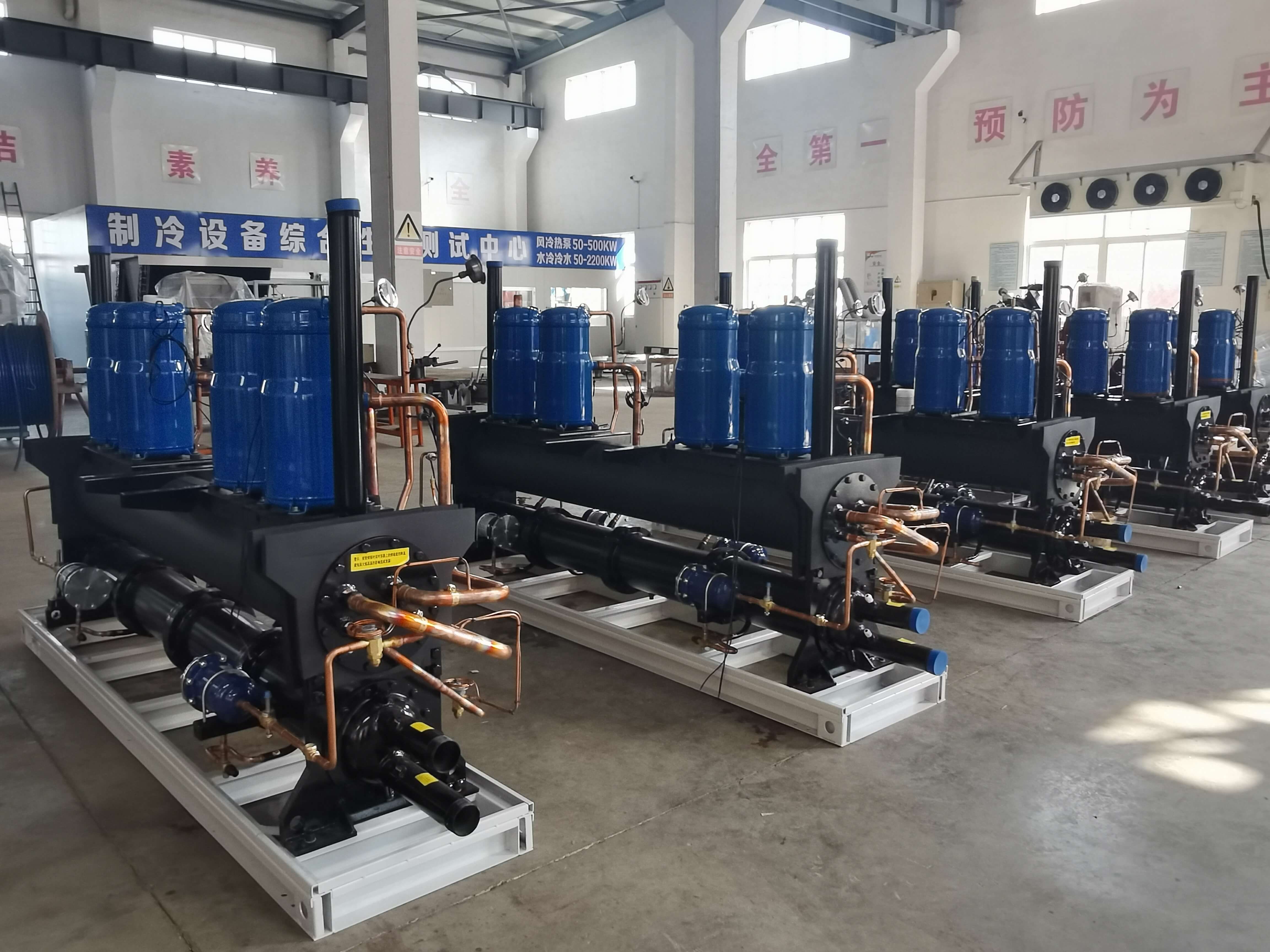

Withair® Compact Series Water Cooled Modular Chiller (7)

Withair® Compact Series Water Cooled Modular Chiller (8)

Withair® Compact Series Water Cooled Modular Chiller (9)
