Withair® / OEM brand as option
12.0 ÷ 72.0 kW / 3.41 ÷ 20.5 Tons
Compressor - 5 year limited ; Other parts - 1 year limited
R410A, R134a, R407C,R22
DC inverter type; HITACHI, Daikin, Panasonic, MITSUBISHI,Copeland
Tube-in-tube, plate type, shell-and-tube heat exchanger
Hydrophilic aluminum fin coils heat exchanger
Office Use, Residential Use, Commercial Use, Industrial Use
380V/3Ph/50Hz (400V/415V/3Ph/50Hz, 230V/380V/460V/3Ph/60Hz as option)
—— Product Description ——

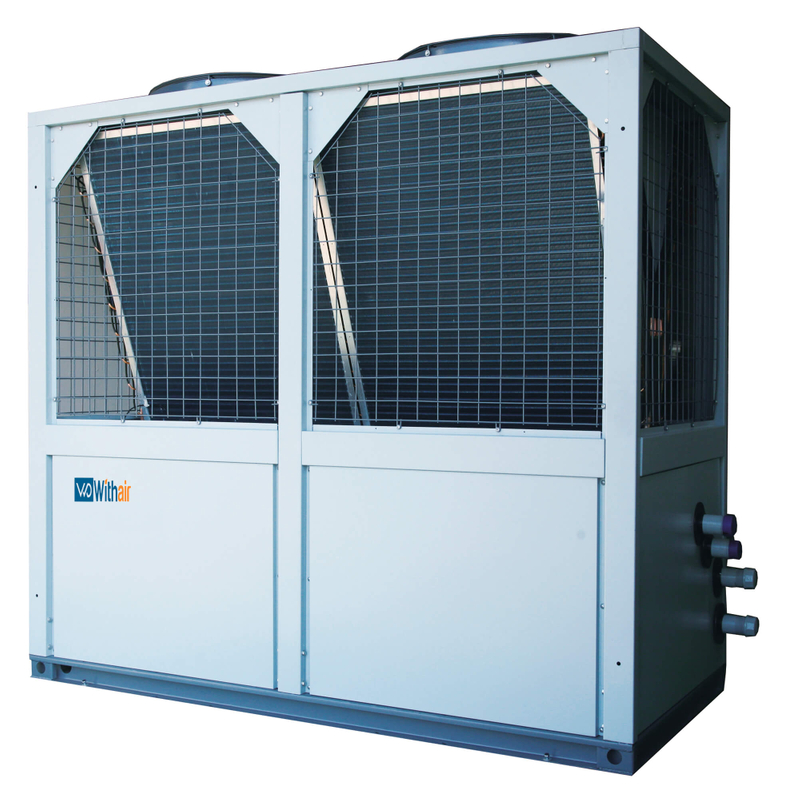

Withair® EVI Heat Pump is specially designed for cold climate region and adopts Ultra low temperature Enhanced Vapour Injection(EVI) compressor technology to guarantee a stable running even at -25°C.EVI heat Pump solve the client's room heating and hot water supply during the very cold climate region. (EVI compressor - enhanced vapor injection,Vapor-injected method can effectively improve heat capacity, prevent higher discharge temperature of compressor and guarantee operating stability of unit at low temperature).
Withair® EVI heat pump is one of the most economical systems to heat the water for family domestic use. Using free renewable energy from the air, the unit is highly efficient with low running costs. Its efficiency can be up to 3~4 times more than conventional gas boiler or electrical heater.
—— The Key Advantages Include ——
● Eco-friendly refrigerant: R407c.
● Applied range: sanitary hot water, floor heating.
● Enhanced vapor injection Copeland brand compressor.
● Operate normally in - 30℃,and hot water 50℃.
● Two speed fan motor: further improve unit operation under high ambient temperature.
● Electronic expansion valve regulates the flow of refrigerant precisely.
● Heat-exchanger cycle technology to further improve operation under low ambient temperature.
● Air exchanger(Fins-coil) with hydrophilic coating.
● Galvanized plate shell, powder coating.
● LCD display wire controller.
● Set the operating time freely.
● Unit runs or stop automatically according to water temperature.
● Control the auxiliary heating (e.g. electric heating).
● With hot water return control, to keep the water warm in supplying pipe.
● Water Level Display and can be set freely("M" model).
● Available in combination with the solar collector and control automatically, saving more energy.
● Water flow protection control.
● Automatic prevent freezing function in the winter.
● Automatic defrosting.
● Failure diagnosing function.
● Modular design, units combine freely.
—— You May Like ——

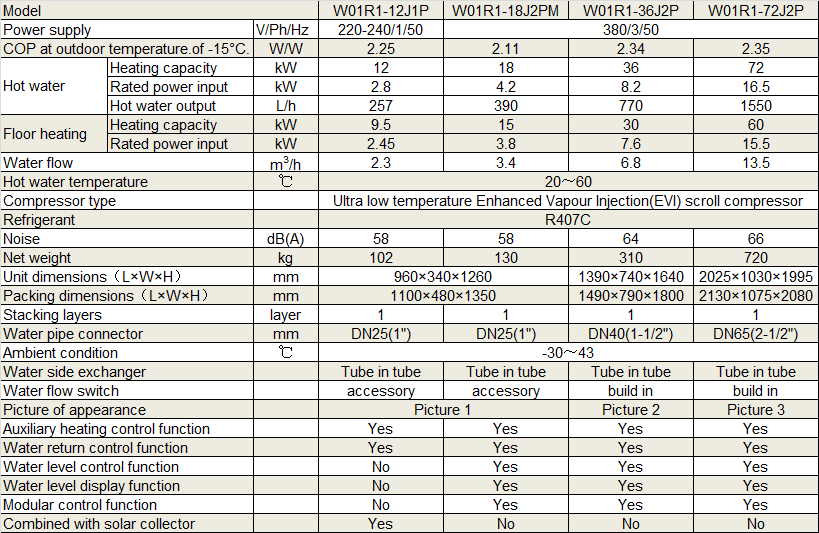

1. Standard hot water work condition: entering water temperature 15℃, leaving temperature 55℃;dry bulb temperature 20℃,wet bulb temperature 15℃.
2. Standard floor heating work condition: entering water temperature 30℃, leaving temperature 35℃;dry bulb temperature 7℃,wet bulb temperature 6℃.
3. All models, sizes, dimensions, and specifications are subject to change without prior notice, please refer to nameplates for the most accurate specifications.
Packaging & Transportation
● 100% test before deliverying products.
Withair® provides two styles package for different transporation modes:
(1). Standard package(free of charge): unit is wrapped with plastic film, foam and carton, which is suitable for container shipment & a few transshipment cargo;
(2). Special package(extra charge): unit is wrapped with plastic film and wooded box, which is suitable for bulk cargo transporation;
