10.2 ÷ 136.0 kW / 2.9 ÷ 38.7 Tons
11.8 ÷ 152.0 kW / 3.4 ÷ 43.2 Tons
3.1 EER / 3.4 COP
Compressor - 5 year limited ; Other parts - 1 year limited
R410A, R407C,R22
Scroll type; HITACHI, Daikin, Panasonic, MITSUBISHI,Copeland
High efficiency plate or shell-and-tube heat exchanger
High efficiency finned copper pipe heat exchanger
230V/1Ph/50Hz and 380V/3Ph/50Hz (400V/415V/3Ph/50Hz, 230V/380V/460V/3Ph/60Hz as option)
Product Overview
—— Product Description ——

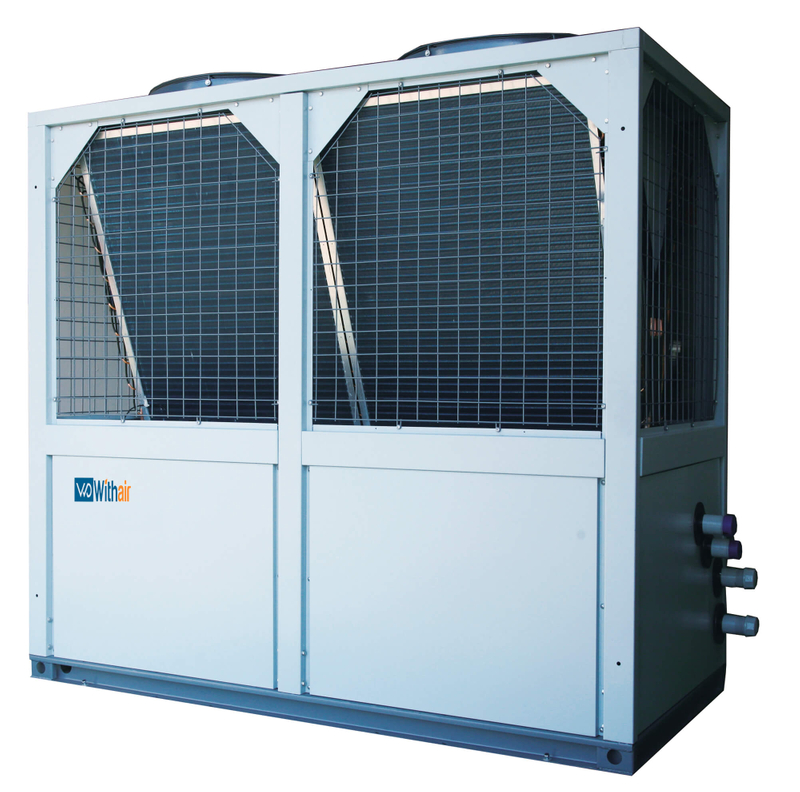

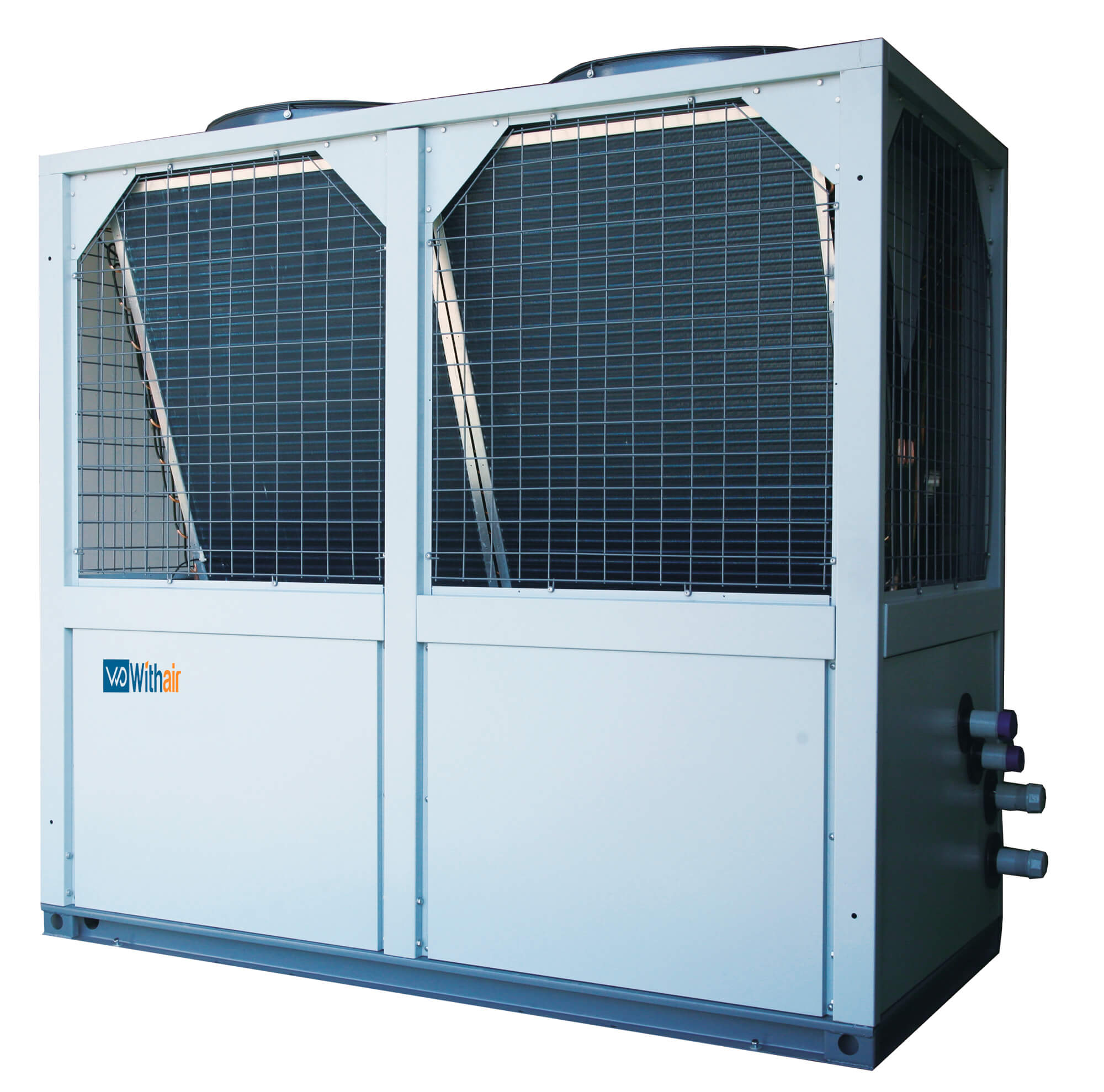

Withair® EVI Air Cooled Scroll Heat Pump adopts the most advanced low-temperature enhanced vapors injection compressor technology, EVI heat pump delivers higher heating capacity at low evaporation temperature thereby better responding to heating requirements than normal air source heat pumps.(EVI compressor-enhanced vapor injection,Vapor-injected method can effectively improve heat capacity, prevent higher discharge temperature of compressor and guarantee operating stability of unit at low temperature).
Withair® EVI Air-Cooled Heat Pump Unit can supply hot water and heating for large buildings in cold climate region and be widely applied to civilian projects and industrial projects,such as hotel, villa,restaurant, hostital, factory,etc,. it is a wise choice for areas where water is insufficient or therre are strict limits on noise level and surroudings.
—— The Key Advantages Include ——
● ECO friendly refrigerant R410A,R407C.
● Built-in hydraulic module for option.
● Intelligent defrost totally.
● Super heating capacity: latest enhanced vapor injection Copeland(EVI) for extremely cold climate, reliable operation and meet the demand of heating of the cold region.
● EVI unit rated heating capacity is 15% higher than normal unit, higher 10% COP; under - 10℃ temperature, heating capacity is 20% higher than the normal unit, higher 25% COP.
● The independent design and manufacturing of high efficiency shell and tube heat exchanger of water side, strong energy saving and anti-freeing.
● The innovation of the split type design, put water system indoor, which solved the frozen damage problem of water side heat exchanger at the cold region in winter.
● Use SWEP auxiliary plate heat exchanger with condensate super-cooling degree, low temperature heating effect significantly.
● Electronic expansion valve throttle control, refrigerant flow control precision at at the cold temperature.
● Air side heat exchanger with anti-ice system design, prevent heat exchanger to frost at the cold temperature.
● Multi self-protection functions, such as: high & low pressure, high temperature, water flow and antifreeze protection.
● Modular networking technology, the operation of individual modules can be coordinated according demand.
● Advanced & world-famous hermetic scroll compressor high-efficiency, low-noise and low-vibration operation.
● Standalone subsystems enable maintenance of individual subsystems without affecting the continued operation of the rest.
● Hydrophilic and corrosion-resistant material ensures adaptability to poor weather.
● Uses advanced hermetic scroll compressor high-efficiency, low-noise, and low-vibration operation.
● Remote monitoring and control features enable the unit’s operational schedule to be set via internet or phone.
● Using modular networking technology, the operation of individual modules can be coordinated according demand.
● Standalone subsystems enable maintenance of individual subsystems without affecting the continued operation of the rest.
● Unique heat exchanger protection technology, increases heat exchange efficiency to 30% above that of conventional heat exchangers.
—— You May Like ——

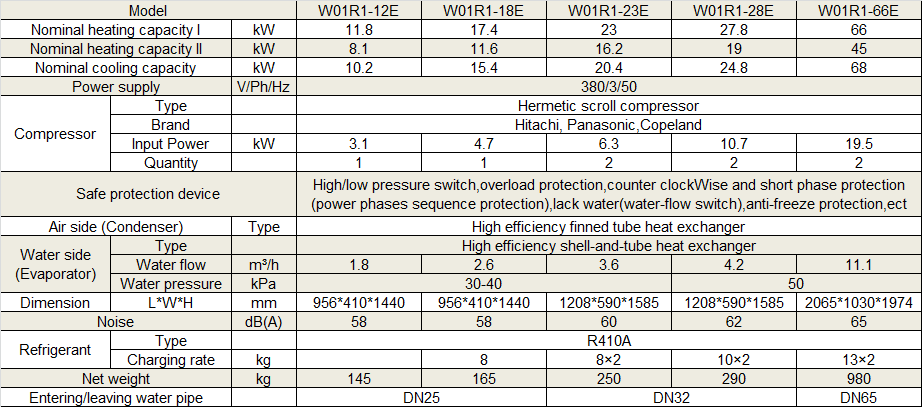

Physical Data
Notes:
1. Standard cooling work condition: entering chilled water temperature 12℃, leaving temperature 7℃;dry bulb temperature 35℃,wet bulb temperature 24℃;
2. Standard heating work condition I: entering hot water temperature 40℃,leaving temperature 45℃; dry bulb temperature 7℃,wet bulb temperature 6℃.
3. Standard heating work condition II: entering hot water temperature 36℃,leaving temperature 41℃; dry bulb temperature -12℃,wet bulb temperature -14℃.
4. Units can realize 1~16 unit's modular connection and control energy-regulation automatically.
5. As an optional function,heat recovery for domestic hot water is available,maximum heat recovery rate:40%.
6. Units working ambient range from -25℃ to 45℃.
7. All models, sizes, dimensions, and specifications are subject to change without prior notice, please refer to nameplates for the most accurate specifications
Packaging & Transportation
● 100% test before deliverying products.
● Tracking number will be sent to customer as soon as we ship the products.
● Item shipped in 25 working days against payment depends on the quantity.
● Four steps of pakacges, plastic film, foam, carton and plywood for stable transporation.
Withair® provides two styles package for different transporation modes:
(1). Standard package(free of charge): unit is wrapped with plastic film, which is suitable for container shipment & a few transshipment cargo;
(2). Special package(extra charge): unit is wrapped with plastic film and wooded box, which is suitable for bulk cargo transporation;
