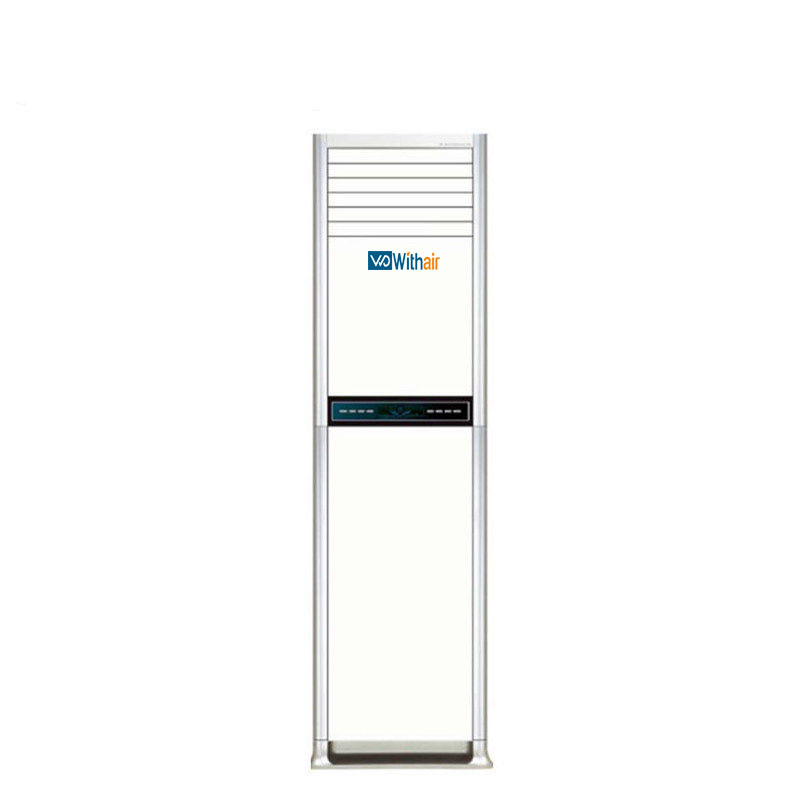

Free Standing Fan Coil Unit

  • W05F Series

  • Withair® / OEM brand as option

  • 8415909090

  • 6.36 ÷ 28.6 kW

  • 9.55 ÷ 41.8 kW

  • 3 year limited

  • Hydrophilic aluminum fin coils heat exchanger

  • Office Use, Residential Use, Commercial Use

  • 230V/1Ph/50Hz (230V/110V/1Ph/60Hz as option)

  • Withair® Chilled Water Fan Coil Units Catalogue (2022 Version).pdf

Availability:

Product Overview

—— Product Description ——


Withair® Fan Coil Unit is designed and manufacturted on the base of advanced technology, and utilizes qualified galvanized iron as structre material. Due to its supper thin design, it has such advantages:beautiful outer looking, space saving, easy instalation,etc. and the most obious advantage is that it can decrease the outlet air temperature difference as low as possible to make the  room more comfortable,as well as doesnt't reduce the cooling capacity output. for the large air flow volume design, it can increase room ventilation frequency, supply more fresh air, and balance room temperature distribution. benefiting from adopting of advanced material and technology, it can be widely applied in market, hospital, office building, hotel, airport and so on.



Withair® Fan Coil Unit contains ceiling exposed type,ceiling concealed type, wall type,cassette type,free standing type, universal type. and the air volume varies from 150CFM~2800CFM.the standard voltage supply is 220V/1P/50Hz, and 110V/1P/60Hz and 220V/1P/60Hz are also available.


Including 6 series: ceiling concealed/exposed units, floor standing units, ceiling cassette unit and so on.


Meeting customer’s various needs, presenting attractive appearance and realizing convenient installation.



—— The key advantages Include ——


● Aesthetic design with high-quality galvanized steel.


● Available in two-pipe,three-pipe and four-pipe configurations.


● Hydrophilic aluminum foil improves efficiency and resists corrosion.

● Highly efficient motor and centrifugal fan ensures low-noise performance.

● Built-in water pump and left/right hand chiller water connetion for optional.


● Proprietary symmetric design allows pipe entrance to be installed on either side of the unit to adapt to building conditions.


—— You May Like ——

Concealed Type Fan Coil Unit  Withair® Air Vent.jpgWithAir® flow switch.jpg Pressure Gauge(2).pngPressure Gauge(2) Withair® Air conditioning terminal switch valveWithair® Insulation pipe      Termostat controls (2)



         Fan Coil Unit        +        Air Vent       +      Flow Switch    +    Pressure gague  +  Switch Valve + Insulation pipe    +    Thermostat

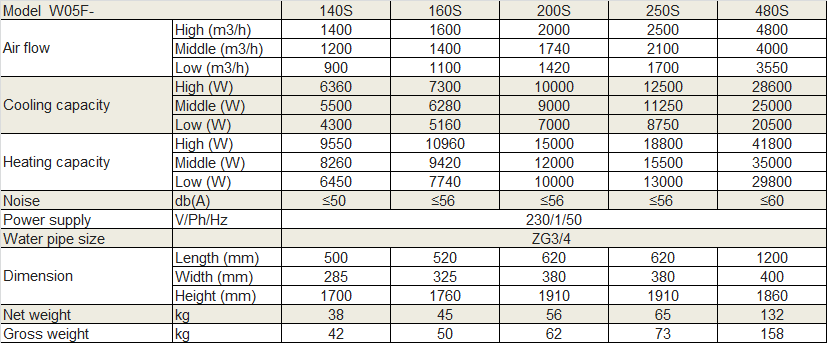

Physical Data


Physical Data of Withair® Floor Standing type Fan Coil Unit.png

Notes:

1.    Cooling condition: Indoor DB=27℃(80.6℉), WB=19℃(66.2℉), water supply 7℃(44.6℉), entering/leaving water temperature difference 5℃(41℉).
2.    Heating condition: Indoor DB=21℃(69.8℉), water supply temp 60℃(140℉).
3.    The water pipe connection direction can be changed before installing;
4.    All models, sizes, dimensions, and specifications are subject to change without prior notice, please refer to nameplates for the most accurate specifications.

Packaging & Transportation

-

● Four steps of pakacges, plastic film, foam, carton and plywood for stable transporation.

● 100% test before deliverying products.
● Item shipped in 25 working days against payment depends on the quantity.
● Products catalogue, installation & operation manual will be sent together.
● Tracking number will be sent to customer as soon as we ship the products.

● Ocean shipping, railway shipment and air transportation are acceptable according to customer demand.


Withair® provides standard package(free of charge): unit is packaged by carton, which is suitable for container shipment & a few transshipment cargo;

       Withair FCU package 3
(2). Special package(extra charge): heat pump is wrapped with plastic film and wooded box, which is suitable for bulk cargo transporation;
       Withair FCU package 2
